Chilled water flow meters are essential instruments for measuring the flow of chilled water in cooling systems. They provide a reliable means of determining water quantity, which is essential for the efficient operation of heating, ventilation and air-conditioning (HVAC)systems. By controlling chilled water flow, managers and operators can ensure optimum performance of cooling systems, saving energy, reducing operating costs and extending equipment life.
The choice of a chilled water flow meter is an important one, given the varying requirements of different applications. The technology must track flow accurately, which often requires the integration of modern communication systems for real-time monitoring and management. Correct installation, calibration and regular maintenance are necessary to maintain the accuracy and reliability of flow measurements.
Key takeaways
Chilled water flow meters are vital for the efficient operation of HVAC systems.
Accurate flow measurements require proper selection, installation, and integration with communication technologies.
Regular calibration and maintenance underpin the reliability of these flow meters.
Fundamentals of chilled water flow meters
Chilled water flow meters are indispensable for measuring chilled water flow andchilled water energy in heating, ventilation and air-conditioning systems, ensuring accurate energy management and billing.
Types of flow meters
There are several types of chilled water flow meters used in various applications, each with unique characteristics:
Turbine flowmeters: These flowmeters use a rotating turbine or impeller; the flow rate is determined by the speed of rotation in correlation with the fluid flow.
Electromagnetic flowmeters These flowmeters use electromagnetic technology to measure flow by applying a magnetic field to the liquid and measuring the induced voltage.
Insertion electromagnetic flow meters: A variation designed for easy insertion into existing pipelines, suitable for large-diameter pipe applications.
Ultrasonic flowmeters Ultrasonic flowmeters use ultrasonic technology, with two transducers that send and receive sound waves to calculate flow based on transit time differences.
Principle of flow measurement
Flow meters operate on different principles tailored to the properties of the liquid:
Turbine technology: Liquid's kinetic energy rotates an impeller; flow is proportional to the rotational speed.
Electromagnetic technology: Faraday's Law of Electromagnetic Induction; voltage induced across a liquid conductor moving through a magnetic field is proportional to the flow rate.
Ultrasonic technology: Measures the time taken for an ultrasound pulse to travel between two flow sensors, affected by the flow rate of the chilled water.
The importance of accurate chilled water measurements
Energy management: Accurate flow measurements are critical for efficient energy management in HVAC systems, directly impacting energy consumption and operational costs.
Billing accuracy: Ensures fair and precise billing in commercial and residential buildings for the chilled water used.
Key features of chilled water flow meters
Important features to consider when selecting a flowmeter forchilled water applications are as follows:
Accuracy: Essential for reliable billing and energy management, with some meters offering accuracies within ±0.5% of the flow rate.
Temperature tolerance: Ability to operate accurately over a range of temperatures commonly associated with chilled water systems.
Measurement range: Flow meters come with different ranges; selection should match the expected flow rates in the system to maintain accuracy.
Maintenance requirements: Some flow meters, such as ultrasonic models, have no moving parts, reducing maintenance needs and improving longevity.
Accuracy
Temperature tolerance
Measurement range
Maintenance requirements
Chilled water systems applications
Chilled water flow meters are integral in monitoring and optimizing the performance of chilled water systems across various settings.
HVAC systems and building design
In the realm of HVAC systems, chilled water flow meters are necessary for ensuring proper water distribution throughout a building's cooling infrastructure. They facilitate precise temperature control in commercial and residential buildings by measuring the flow rate of chilled water. This measurement allows for fine-tuning of the system, resulting in enhanced comfort for occupants and more efficient operation overall of building automation system.
Industrial applications
In industrial environments, chilled water systems play a key role in the constant cooling of machines and processes. Chilled water flow meters enable industries to maintain equipment within optimum temperature ranges, avoiding overheating and ensuring process stability. These meters provide critical data on the volume of water required for a rigorous industrial cooling system, which has a direct impact on productivity and maintenance schedules.
Energy management and billing
Chilled water flow meters are pivotal for energy management, offering the data needed for analyzing and improving energy efficiency in chilled water systems. They enable facilities to track cooling consumption accurately, which is essential for energy conservation initiatives and reducing operational costs. Moreover, in terms of billing, flow meters provide accurate readings essential for cost allocation in multi-tenant buildings or complexes, ensuring fair and transparent charging for chilled water usage.
Integration and communication technologies
Chilled water flowmeters monitor cooling system performance. Their value is maximized when integrated with modern network protocols and control systems for real-time analysis and management.
Network protocols
Two prominent network protocols for chilled water flow meters are BACnet and Modbus. These protocols facilitate effective communication between devices.
BACnet : Building Automation and Control Networks protocol is widely used for managing building systems. It allows chilled water flow meters manufactured by companies like Onicon to easily integrate into building management systems, providing operators with precise control and monitoring.
Modbus : This protocol offers a simple and robust method of transferring data over serial lines between devices. Modbus is versatile and supported by many manufacturers, ensuring that integration with various control systems and equipment is possible.
For chilled water flow meters, compatibility with various control systems is vital to ensure that they contribute to the overall efficiency and effectiveness of the HVAC system.
Integration : Systems that accommodate units like those from Fuji Electric can integrate seamlessly, ensuring that data from the flow meters can be utilized for system diagnostics and optimization.
Communication : Effective communication is established when the flow meters support protocols that match the control system in place, improving overall system performance without the need for extensive customization or third-party solutions.
Installation, calibration and maintenance
Proper installation and regular calibration are critical to the accurate performance of chilled water flow meters. Maintenance is key to ensuring long-term reliability.
Installation requirements
A chilled water flow meter must be installed according to the manufacturer's guidelines to ensure precise measurement. Key requirements typically include:
Orientation : The meter should be positioned so that the flow direction corresponds with the directional arrow on the meter body.
Piping: Straight pipe lengths before and after the meter must meet minimum specifications to avoid turbulence.
Environment : Install the meter in a location where it is protected from extreme temperatures and direct sunlight.
Orientation
Piping
Environment
Calibration processes
Calibration of a chilled water flow meter ensures its accuracy and performance. Steps for calibration include:
Verification : Compare the meter's readings with a known standard.
Adjustment : If discrepancies are found, adjust the meter's settings accordingly.
Documentation : Keep records of calibration activities for performance contracting and regulatory compliance.
Check
Adjustment
Documentation
Maintenance for long-term reliability
Regular maintenance preserves the reliability and lifespan of a chilled water flow meter. Essential maintenance tasks include:
Cleaning : Periodically clean the meter's sensors to prevent performance degradation.
Inspection : Regularly inspect for signs of wear or damage.
Testing : Implement sub-metering to facilitate more focused and regular testing.
Chilled water flow meters are essential components in sub-metering and performance contracting, their proper installation, routine calibration, and diligent maintenance are non-negotiable for accurate and reliable operation.
Cleaning
Inspection
Tests
Advanced topics in flow measurement
As flow measurement technology evolves, new challenges and opportunities impact the accuracy, environmental impact, and cost of chill water systems.
Emerging technologies

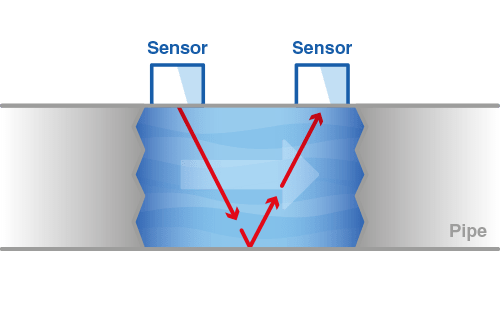

The development of advanced flowmeters, such as ultrasonic flowmeters, has considerably improved measurement efficiency and accuracy. Ultrasonic flowmeters, which use sound waves to measure flow rates, offer a non-invasive method of obtaining highly accurate data. What's more, these clamp-on flowmeters offer a cost-effective, non-intrusive flow measurement solution for larger diameter pipes.
Environmental considerations
The environmental impact is a critical factor in flow measurement technology. For example, the the Time Delta ultrasonic flow meter and the M-Flow clamp-on flow meter are designed to ensure minimal ecological impact while maintaining highly accurate flow measurement. This aligns with growing demands for sustainable measurement solutions that can both protect ecosystems and provide reliable data.
Requires fewer resources to install
Reducing potential environmental impact
Cost and resource allocation
In the context of resource management, the BTU or Kw/h energy calculator plays an essential role in allocating costs and resources. It processes data from flow meters to optimize the operation of HVAC systems, which has a direct impact on profitability and energy use. This integration illustrates the trend towards using advanced electronics to interpret flow data to improve system management.
Enhances HVAC system operation thanks to heat energy calculation
Manage energy consumption and operating costs with Btu and Kw/h
Fuji Electric's new ultrasonic flow meter integrates a function for calculating the thermal energy available for heating and cooling systems. With the addition of two temperature sensors, the Btu or Kw/h meter can calculate the temperature difference associated with the flow rate and monitor the thermal energy transferred.
Discover Fuji Electric advanced flowmeters and energy calculators
When selecting and using flow meters in chilled water systems, it's important to understand accurate measurement techniques, differences between meter types, critical selection factors, performance comparison, correlation with cooling capacity, and cost considerations.
How can you accurately measure the flow rate in a chilled water system?
It is possible to accurately measure the flow rate of a chilled water systemby using flow meters that are properly calibrated to the specific parameters of the system. Technologies such as ultrasonic flowmeters tend to be preferred for their accuracy (for billing purposes) and non-intrusive measurement capabilities for different sizes on all HVAC applications.
What are the principal differences between a BTU meter and a standard flowmeter in a chilled water system?
A BTU or Kw/h meter measures the rate ofthermal energy transfer in addition to the liquid flow rate, thus quantifying the actual contribution of chilled water to cooling or heating. In contrast, a standard liquid flow meter measures only the volumetric flow rate of water, without providing any information on energy transfer. Fuji Electric's latest ultrasonic flowmeter technology offers a combination of a flowmeter and a BTU or Kw/h meter in a single device for measuring energy consumption in heating, ventilation and air-conditioning systems.
What are the critical factors to consider when choosing a flow meter for hydronic applications?
Key factors include accuracy, range, pressure loss, pipe diameter, compatibility with fluid type and temperature, ease of installation in vertical and horizontal positions, available straight lengths, maintenance requirements and overall reliability under the specific conditions of a hydronic system (hot and cold water).
How is the performance and reliability of ultrasonic flow meters in chilled water applications compared to traditional meters?
Ultrasonic flowmeters are praised for their high accuracy and low maintenance inchilled water applications. One of their main advantages is that they are non-invasive, meaning they do not impede flow or cause pressure drops, making them often more reliable and efficient than mechanical meters whose moving parts are subject to wear.
What is the correlation between chilled water flow rate and cooling capacity, particularly in GPM per ton or L/min per ton?
A common industry benchmark is that one ton of cooling capacity typically requires a flow rate of approximately 2.4 GPM (gallons per minute) 2.4 GPM (gallons per minute) or 9.08 L/min (liters per minute). of chilled water. This correlation makes it possible to estimate cooling capacity on the basis of measured flow.
What are the cost considerations when installing or replacing a flow meter in a chilled water system?
Costs to be considered include the initial purchase price of the flowmeter, installation costs, potential disruption to operations during installation, and long-term maintenance costs. The economic analysis must weigh the flowmeter's accuracy and lifetime against these costs to ensure a profitable investment. Ask a flowmeter manufacturer like Fuji Electric to select the right flowmeter for your application.
Choose Fuji Electric flow meters: the ideal solution for your chilled water systems
Chilled water flow meters play an essential role in the efficient management of ventilation and air conditioning systems.
To guarantee optimum performance and maximum accuracy, choosing Fuji Electric flow meters is a strategic choice. With their cutting-edge technology, including ultrasonic models, they ensure reliable measurement while reducing maintenance requirements. Fuji Electric is committed to providing innovative solutions that not only improve energy efficiency, but also extend the life of your equipment.
