To calibrate a temperature probe, first identify its type (thermocouple, RTD, etc.). Then use certified calibration equipment, such as a calibration bath or block, to compare the probe reading with an accurate reference value. Adjust the probe according to any deviations observed, and document the results for follow-up and traceability.
Calibrating temperature probes is essential to ensure reliable measurements in many areas.
Yet this procedure can seem complex to novices.
This article explains step-by-step how to calibrate a temperature sensor according to metrological standards.
We'll cover the necessary preparation, the different methods available, as well as tips for optimizing the process and solving common problems. Whether you're using a platinum thermometer or other types of probe such as PT100 or thermocouple probes, you'll learn how to master this crucial technique for ensuring the accuracy of your temperature measurements.

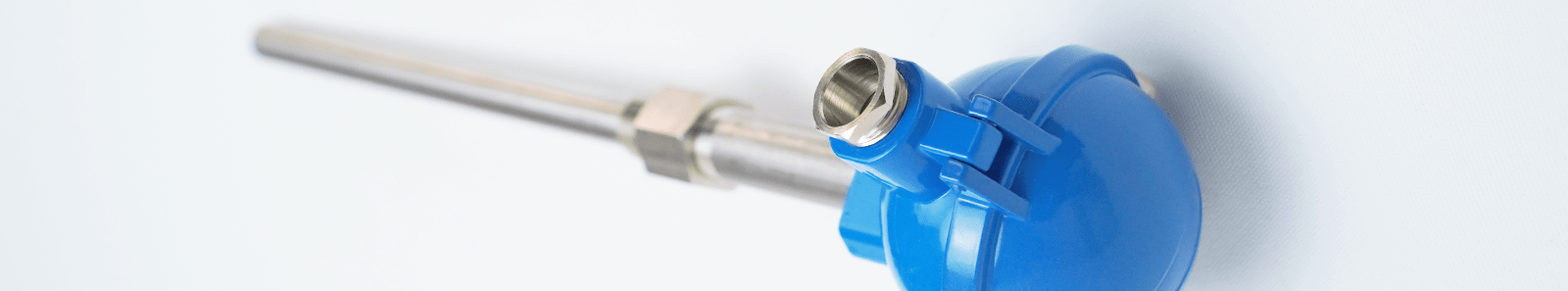

Calibration of temperature probes is essential to ensure accurate measurements in a wide range of industrial applications. This process involves understanding measurement devices, the importance of regular calibration and compliance with current standards. The traceability of measurements, whether for liquids, gases or pressure, depends directly on the quality of the calibration carried out.

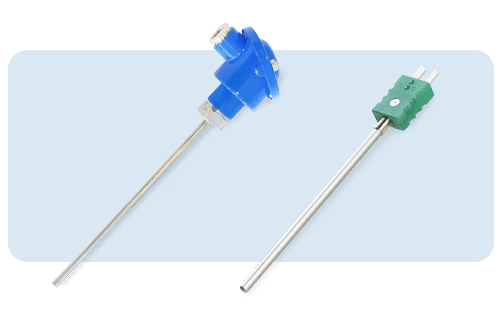

A temperature sensor is a measuring device used to determine the temperature of a medium. It generally consists of a sensor sensitive to thermal variations, such as a thermocouple or platinum resistance thermometer (RTD). These temperature sensors operate on the principle of varying electrical resistance or generating a thermoelectric voltage as a function of temperature.Calibration of these sensors is essential to ensure accurate measurements in a wide range of industrial and scientific applications.
Calibration of temperature probes ensures accurate measurements in a wide range of industrial applications. It reduces the risk of reading errors, particularly for instruments such as PT100 probes, thermocouple probes and infrared sensors. Regular calibration ensures that the electrical voltage generated by the probe corresponds exactly to the temperature measured, which is essential for the reliability of data recorded by control software.
The calibration of temperature sensors must comply with strict standards to guarantee the reliability of measurements in industry. These regulations define the procedures to be followed, including the use of fixed points such as boiling water or melted ice to check sensor accuracy. Standards vary from sector to sector, with particular requirements for the cold chain in the food industry, or high-precision measurements in the pharmaceutical industry.
Preparing a temperature sensor for calibration is an essential step in ensuring accurate measurements. This phase involves checking the monitoring system, preparing the necessary tools and complying with safety instructions. Particular attention is paid to the physical condition of the probe and its behavior in heat, to guarantee reliable results.

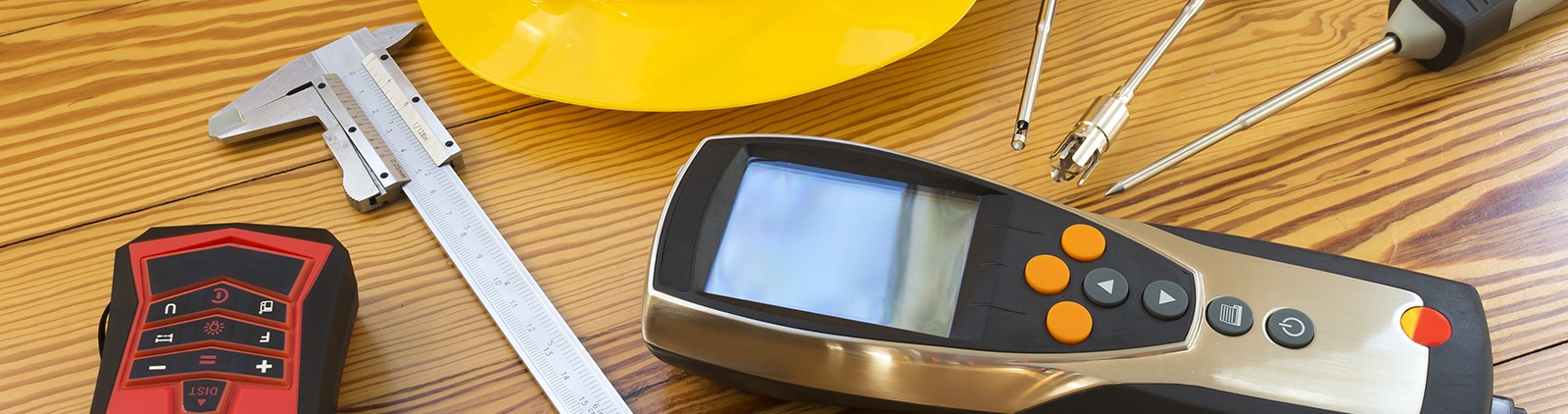

Calibrating a temperature probe requires specific tools to guarantee accurate measurements. A thermostat bath, a certified reference thermometer and a precision multimeter are essential. Accessories such as compensation and connection cables, adapters and standard probes complete the equipment. It is essential to check the compatibility and working order of all these instruments before starting the calibration procedure.
Prior to calibration, it is useful to thoroughly check the condition of the temperature sensor. This includes visual inspection of the sensor's physical integrity, checking the electrical connections and assessing the stability of the readings. Any anomalies, such as cracks, corrosion or stripped wires, must be corrected before calibration to ensure reliable, accurate results.
Safety precautions are of paramount importance whencalibrating temperature probes. Technicians must wear appropriate personal protective equipment, including thermal gloves when handling hot probes. It is essential to ensure that all electrical equipment is properly grounded and that work areas are well ventilated, especially when using high-temperature calibration baths.
Tools and equipment
Status check
Safety instructions
The complete calibration procedure for a temperature sensor consists of four essential stages. It begins with temperature stabilization, followed by measurement with a reference standard. Next, the results are carefully recorded. Finally, if necessary, the probe is adjusted to ensure accuracy.

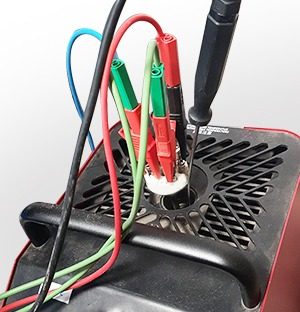

The first step in calibration is to stabilize the probe temperature. To do this, the probe is placed in a thermostatic bath or calibration oven set to the desired temperature. It is crucial to wait for the temperature to stabilize completely, which can take several minutes depending on the type of probe and the environment. This stabilization guarantees that subsequent measurements will be reliable and representative of the probe's actual performance.

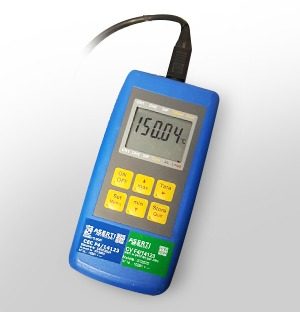

The second step in the calibration process is to measure the temperature using a reference standard. A certified thermometer, previously calibrated and traceable, is placed in the immediate vicinity of the probe to be calibrated in the thermostatic bath. Readings from both instruments are compared simultaneously, ensuring that the measurement conditions are identical. This comparison makes it possible to determine the deviation between the value indicated by the probe and the reference value, which is essential for assessing the accuracy of the temperature probe and making any necessary adjustments.

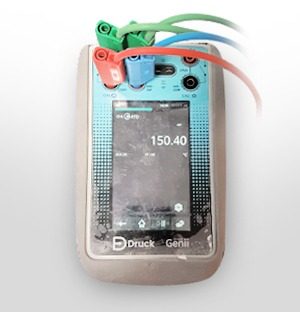

Recording results is an important step in calibration. The technician carefully records the values observed on the probe and thereference standard in a calibration report. This document also includes environmental conditions, date, time and the probe's unique identifier. This data serves as the basis for analyzing the probe's performance and determining any necessary adjustments.

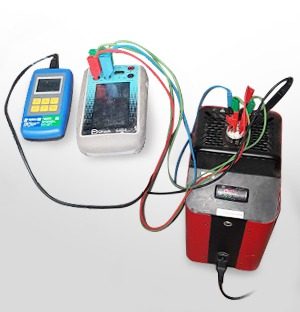

Probe converter adjustment is carried out if calibration results reveal significant deviations from thereference standard. The technician uses the specific tools provided by the temperature probe manufacturer to recalibrate the probe, by modifying its internal parameters or adjusting its electronic circuitry. This delicate operation requires particular expertise, and may involve the use of specialized software to reprogram the temperature sensor's converter. Once the adjustment is complete, a new series of measurements is taken to confirm that the sensor now meets the datasheet requirements.
Temperature probes can be calibrated by a number of different methods, each adapted to specific needs. The three main techniques are the use of a thermostatic bath, the application of a dry oven and the use of portable calibrators. These methods offer distinct advantages in terms of accuracy, temperature range and practicality in the field.

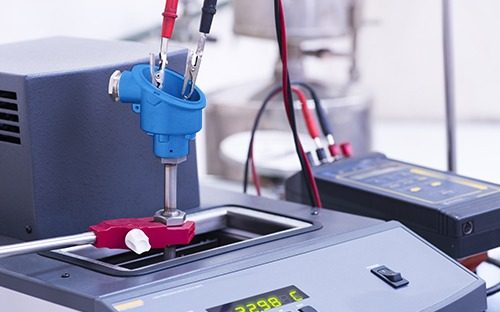

The use of a thermostatic bath is a precise method for calibrating temperature probes. This device maintains a stable, uniform temperature in a liquid, usually water or oil, in which the probe is immersed. The thermostatic bath offers excellent thermal stability and a wide temperature range, making it an ideal choice for calibrating various types of probe, such as PT100 or thermocouple probes. This method is particularly effective for high-precision calibrations and applications requiring high measurement reproducibility.

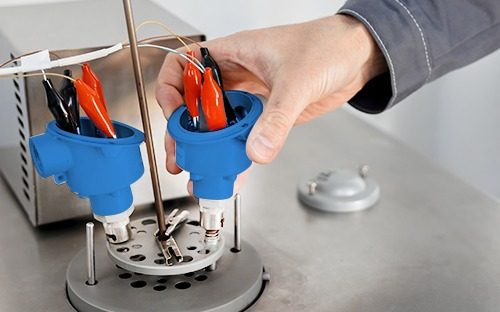

The dry oven application, also known as the dry block calibrator, is a practical and versatile calibration method for temperature probes. This device uses an electrically heated metal block with wells of different diameters to accommodate the probes. The dry oven offers excellent thermal stability and a wide temperature range, enabling precise calibration under controlled conditions. This method is particularly appreciated for its portability and ability to quickly reach the desired temperatures, making it ideal for on-site calibrations.
Portable calibrators offer a practical solution forcalibrating temperature probes in the field. These compact devices often combine a miniaturized four-second unit with an integrated digital display, enabling fast, accurate calibrations in a variety of industrial environments. Their portability facilitates preventive maintenance and spot checks, as well as equipment downtime. Although their temperature range is generally more limited than that of thermostatic baths, portable calibrators are an essential tool for technicians carrying out on-site calibrations.

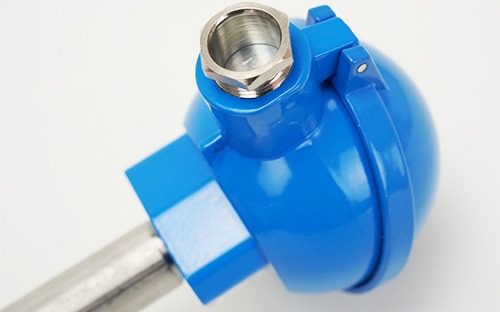

There are three key aspects to optimizingtemperature sensor calibration. Frequency of calibration, factors influencing measurement accuracy and traceability of procedures are essential to guarantee reliable results. These elements contribute to maintaining measurement quality and complying with current industry standards.
Calibration frequency
Traceability and problem solving
Identification of measurement errors
Management of faulty probes
Preventive maintenance of equipment
The recommended frequency of calibration depends on a number of factors, including sensor use, working environment and regulatory requirements. In general, annual calibration is recommended for most industrial temperature probes. However, under conditions of intensive use or in corrosive environments, it may be necessary to increase this frequency to every six months. Manufacturers often provide specific recommendations for each probe model, which it is important to follow to guarantee reliable measurements.
Measurement accuracy when calibrating temperature probes is influenced by several critical factors. The thermal stability of the calibration environment, the quality and traceability of the reference instruments used, and the skills of the technician performing the procedure all play a crucial role. In addition, variations in ambient temperature, electrical fluctuations and electromagnetic interference can affect the reliability of results. It is therefore essential to control these parameters and maintain optimum conditions throughout the calibration process to guarantee measurement accuracy.
Calibration traceability is a crucial element in guaranteeing the reliability and conformity of temperature measurements. It involves detailed documentation of every stage in the calibration process, including the instruments used, the environmental conditions and the results obtained. This documentation makes it possible to trace the complete calibration history of a probe, which is essential for quality audits and compliance with industry standards. With rigorous traceability, companies can demonstrate the validity of their measurements and maintain confidence in their quality control processes.
Solving common problems during temperature probe calibration is essential to maintaining measurement accuracy. This section covers the identification of measurement errors, the management of faulty probes and the preventive maintenance of equipment. These aspects are crucial to ensuring reliable results and prolonging the life of measuring instruments.
Identifying measurement errors when calibrating temperature probes requires systematic analysis of the results. Technicians compare the values obtained with those of the reference standard, taking into account the tolerances prescribed by the manufacturer. Significant deviations or unstable readings may indicate problems such as sensor drift, faulty connections or electromagnetic interference. A thorough check of the measurement chain, including cables, connectors and display instruments, can often locate the source of the error.
Dealing with faulty probes involves a series of specific actions to maintain the integrity of temperature measurements. When a probe is identified as faulty, it must be immediately removed from service and clearly labelled to prevent accidental use. The technician must then assess whether the probe can be repaired or whether it needs to be replaced, taking into account the cost and importance of the equipment in the production process. In some cases, an in-depth analysis of the causes of the failure may be necessary to prevent similar problems in the future. You can call on a temperature sensor manufacturer to help you with this process and replace your faulty PT100 or thermocouple sensor.
Preventive maintenance of calibration equipment is essential to ensure the accuracy and reliability of temperature probes. This involves regular inspections, cleaning of components and checking of electrical connections. Technicians must follow a strict maintenance schedule, including periodic calibration of reference instruments and replacement of worn parts. Effective preventive maintenance reduces downtime, optimizes equipment performance and prolongs its lifespan.
Calibration of temperature probes is an essential process for guaranteeing measurement accuracy in various industrial sectors. This procedure, which includes temperature stabilization, comparison with a reference standard, recording of results and adjustment if necessary, is essential for maintaining equipment reliability and complying with current standards. Regular preventive maintenance and effective management of faulty probes help optimize performance and extend instrument life. Ultimately, rigorous calibration of temperature probes ensures product quality, process safety and compliance with industry regulations.
