In stock

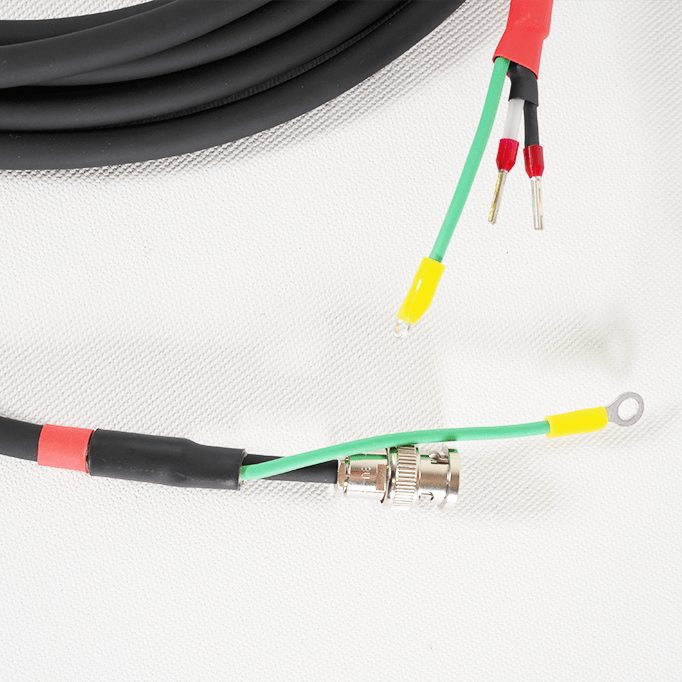

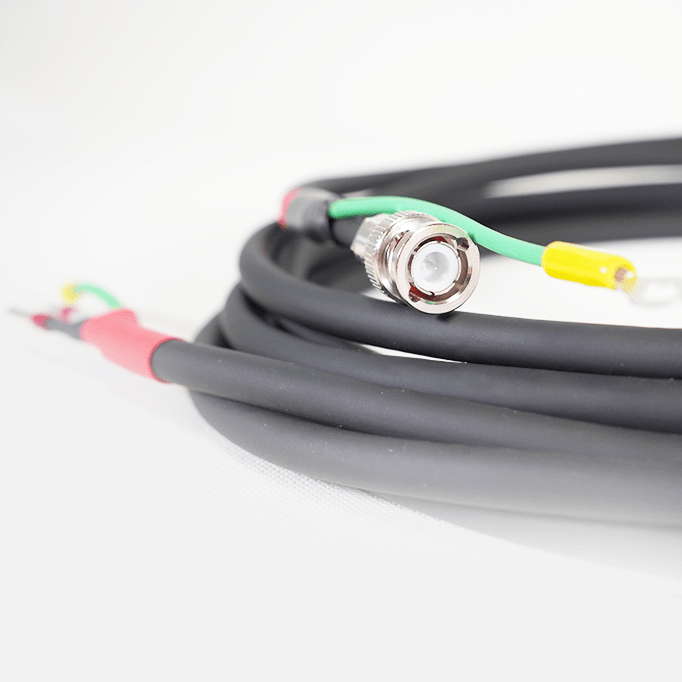

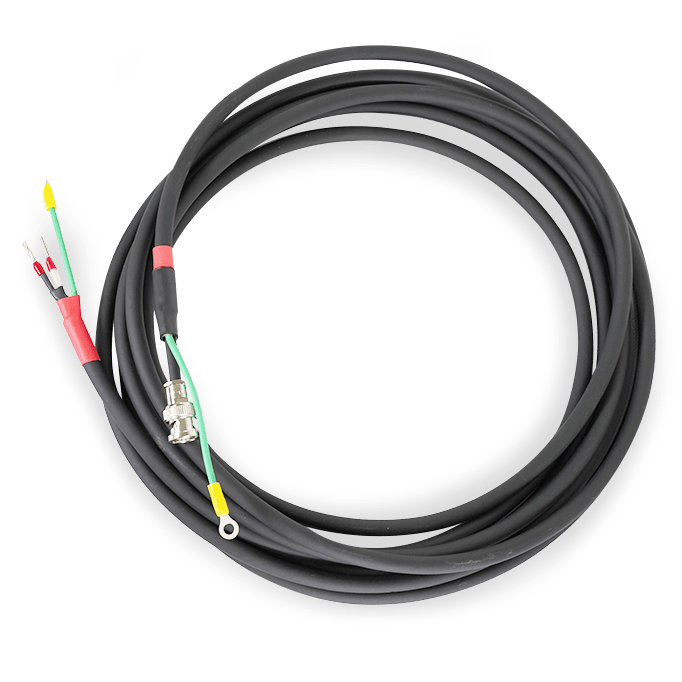

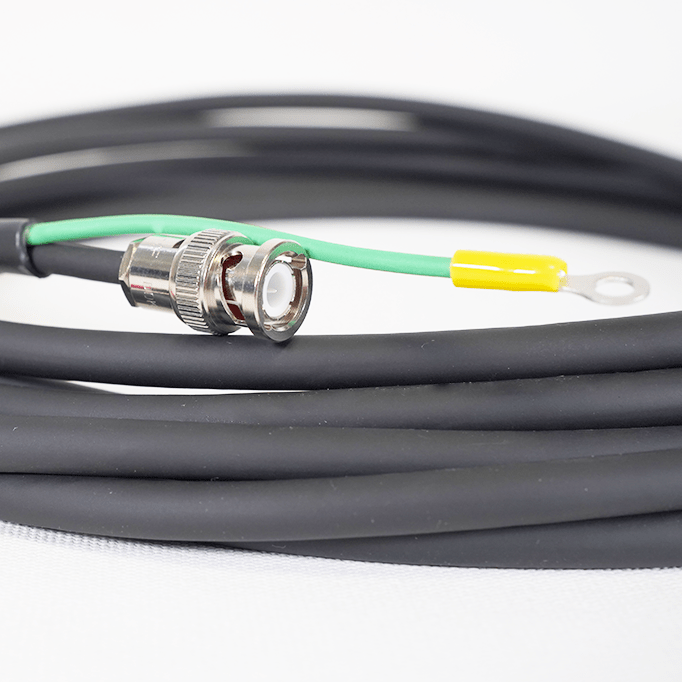

      Cable - FLYD for detector - FSSA - FSSC - FSSD - FSSE - FSSH

      Ultrasonic flow measurement

      Fields of application

      Detect leaks of any liquid in a pipeline, temporary measurement of liquid flow for maintenance purposes in pipes of any size, volumetric flow in clean liquids and those with small amounts of suspended solids or aeration such as surface water or raw sewage, non-invasive calibration of the flow rate of an existing electromagnetic flow meter, pump flow control and measurement and balancing of district heating networks.

      Features

      • Measurement accuracy: ±1.5%.
      • Fast response time: 0.2 sec
      • Compact dimensions: 130 x 140 mm
      • Output signal : 4-20 mA, pulse output, relay alarm output
      • Digital communication : RS485 MODBUS™ option
      Reference : FLYD
      From 301 €
      Configure my product

      Configure

      Specifications

      This clamp-on ultrasonic flow meter applies a measurement method based on transit time difference. By taking advantage of the latest electronics and digital signal processing technology, we have developed a device characterized by its excellent immunity to air bubbles and its extreme accuracy. A communication function (MODBUS: optional) is also available.



      Cable length (in meters)5
      10
      15
      20
      25
      30
      35
      40
      45
      50
      55
      60
      65
      70
      75
      80
      85
      90
      95
      100
      110
      120
      130
      140
      150
      160
      170
      180
      190
      200
      210
      220
      230
      240
      250
      260
      270
      280
      290
      300
      Other sizes available on request
