Specifications

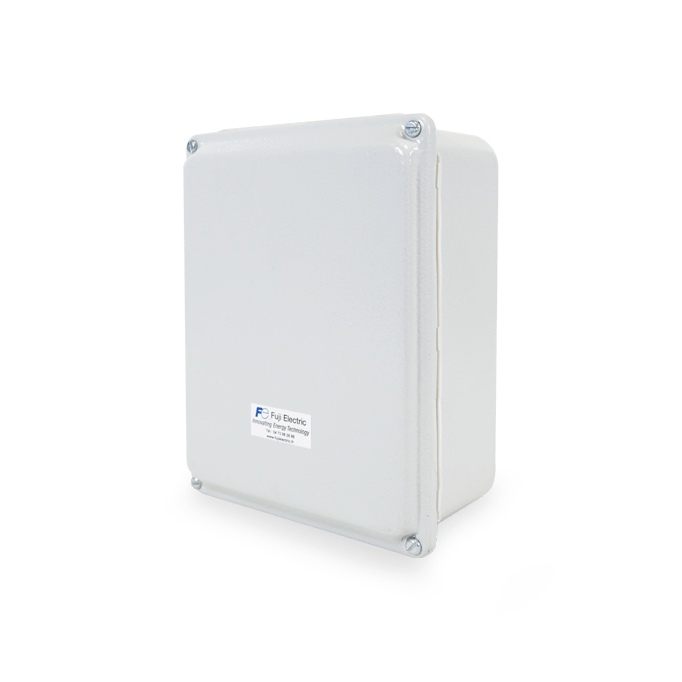

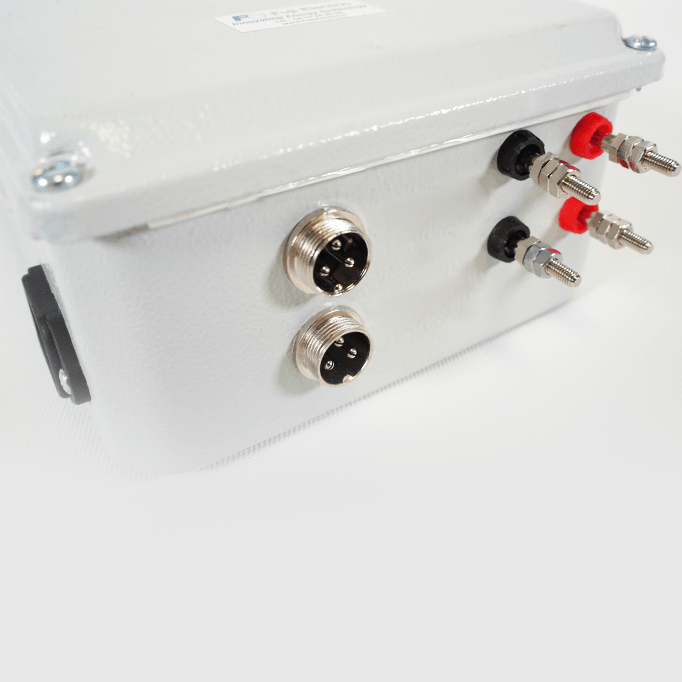

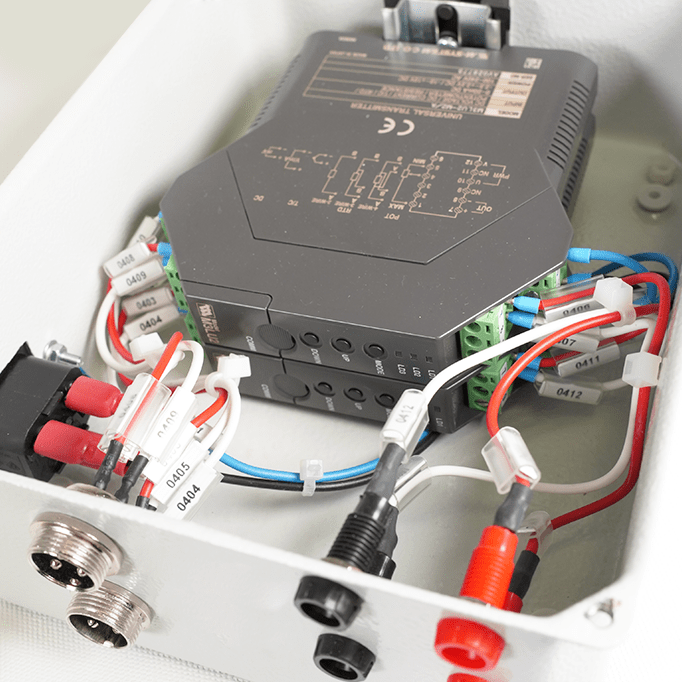

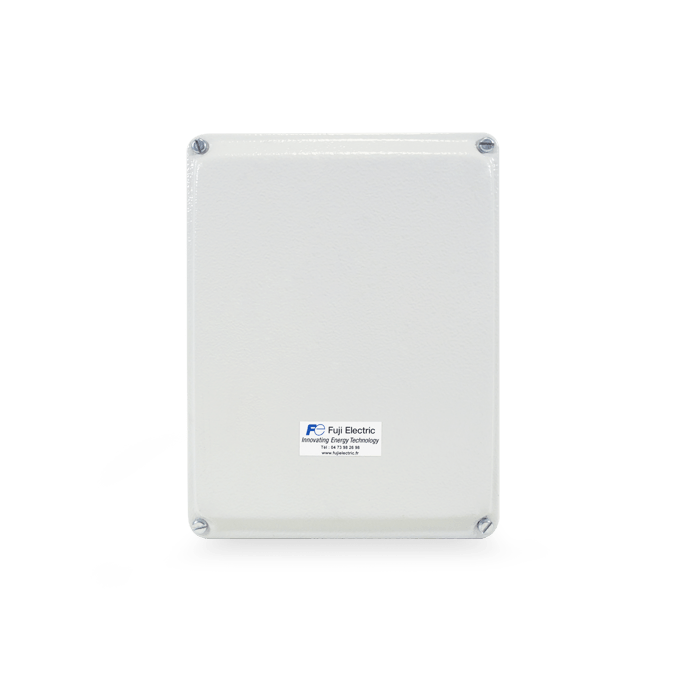

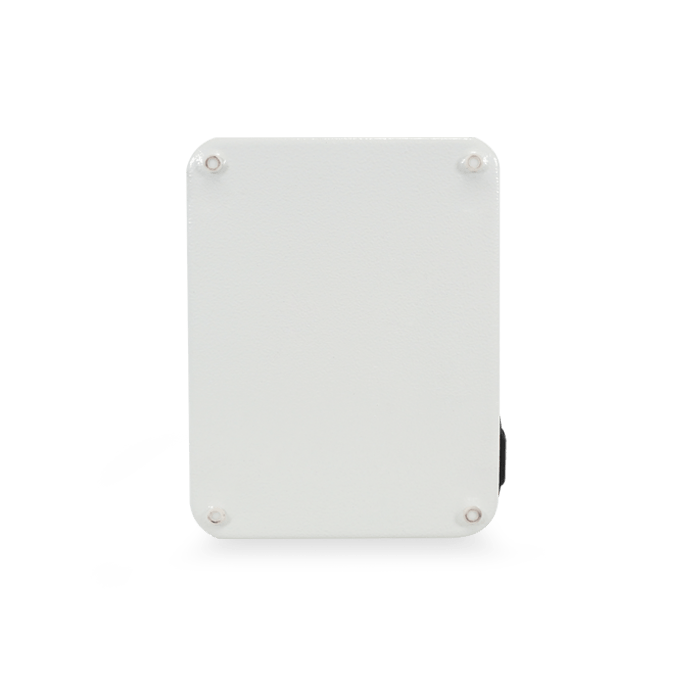

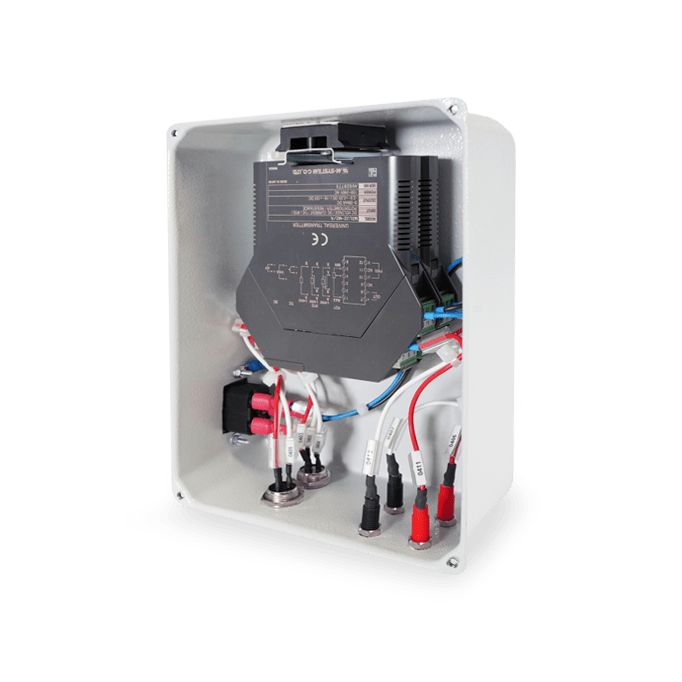

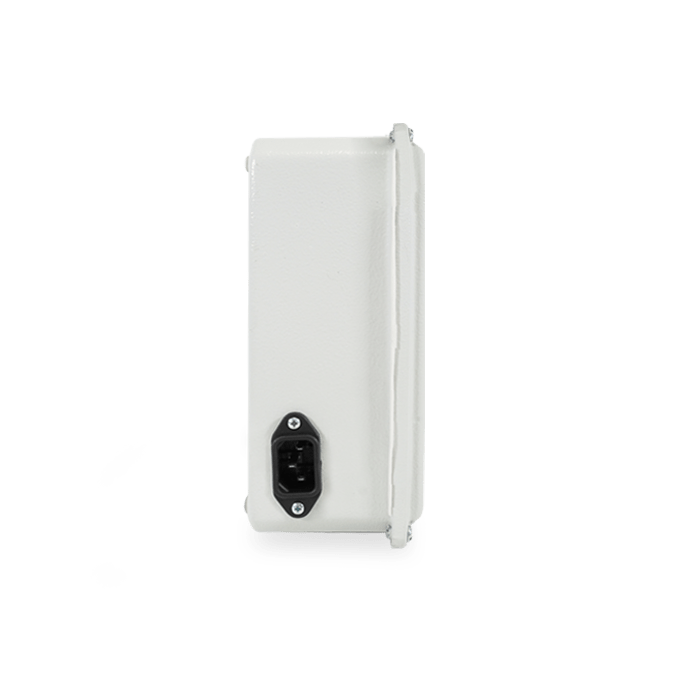

The FSC - PT CONV temperature converter is designed for use with the FSC portable ultrasonic flowmeter, enabling precise measurement of thermal energy in cooling and heating systems. It features two 4-20mA inputs for Pt100 temperature probes and provides an analog output for easy integration with other measurement and control systems. This converter, essential for installations requiring efficient management of the energy consumed by thermal fluids, is a two-channel temperature converter. It measures the flow and return temperature of the heat transfer fluid via two Pt100 contact probes, to be attached to the pipe, and converts these measurements into 4-20 mA signals compatible with the FSC ultrasonic flowmeter.
| Measurement type | Temperature via two Pt100 sensors. |
| Cable length for Pt100 sensors | 10 meters |
| Analog I/O cable | 1.5 meter |
| Power supply | 85-264 Vac |
| Number of lanes | Up to 2 channels |
| Compatibility | Designed exclusively for the FSC portable ultrasonic flowmeter |
| Features | Energy calculation for monitoring energy consumption in cooling and heating processes. |
