Sensor - FSD - for FSC portable ultrasonic flowmeter with flow velocity profile option

Flow measurement

Fields of application

Detect leaks of any liquid in a pipeline, temporary measurement of liquid flow for maintenance purposes in pipes of any size, volumetric flow in clean liquids and those with small amounts of suspended solids or aeration such as surface water or raw sewage, non-invasive calibration of the flow rate of an existing electromagnetic flow meter, pump flow control and measurement and balancing of district heating networks.

Features

  • Precise liquid flow measurement
  • No need to cut the pipe wall thanks to clamp-on transducers
  • Quick installation
  • No moving parts
  • No pressure loss
  • Bidirectional measurement of high flow velocities from -32 to +32 m/s.
Reference : FSD
From 2126 €
Configure my product

Configure

Specifications

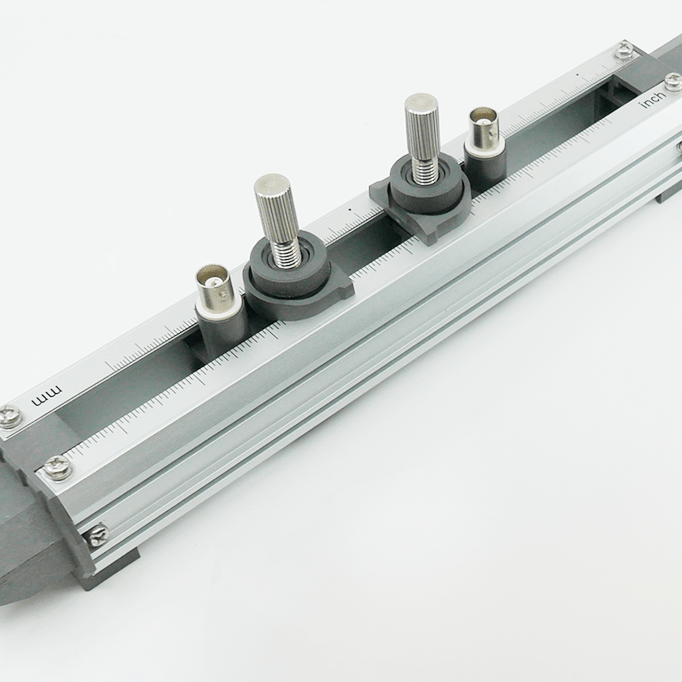

FSD detector designed for the FSC portable ultrasonic flow meter, consisting of a compact, lightweight flow transmitter and a detector that attaches to the pipe. Featuring the latest electronics and digital signal processing technology, it provides accurate measurement while being easy to use.



Pipe diameter ø13 to 100 mm (300 mm max.)
Pipe materialPVC, stainless steel, carbon steel, copper, aluminium, etc. [If the pipe no longer has a coating, measurement is not possible].
Liquid temperature-40 to 100 °C
Mounting methodV-mount, Z-mount
Sensor typeFSC

Documentations

Manual: Windows update for the FSC Portable Ultrasonic Flowmeter FSD Detector

Manuals Download

Manual: Installation of the FSC Portable Ultrasonic Flowmeter FSD Detector

Manuals Download

Manual: Software for FSC Portable Ultrasonic Flowmeter FSD Detector

Manuals Download

Manual: Portable ultrasonic flow meter FSC sensor FSD

Manuals Download

Software: Configuration of portable ultrasonic flow meter FSC - PFC settings

Software Download

Software: Calculation of FSS sensor spacing for ultrasonic flow meters

Software Download

Datasheet: Portable ultrasonic flow meter FSC detector FSD

Datasheet Download

Brochure: Measures for energy and the environment

Brochures Download
