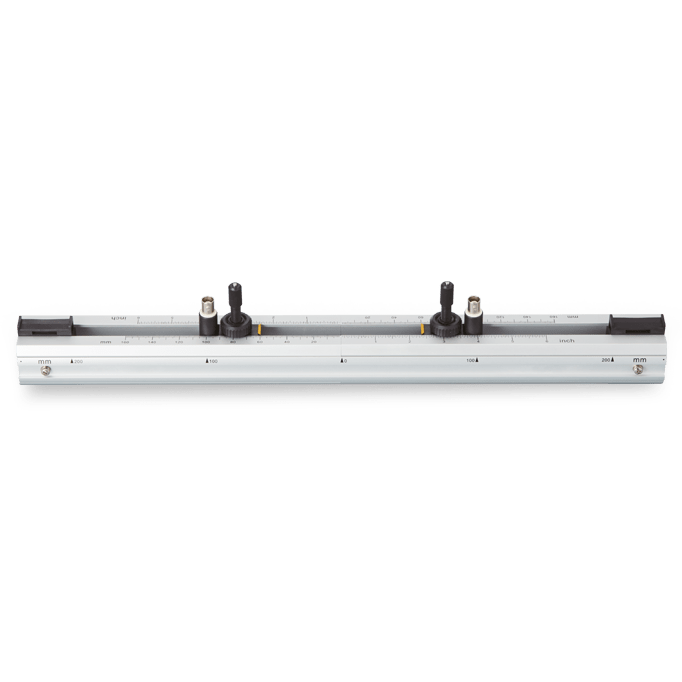

Sensor - FSSC - diameter 50 to 1200 mm for ultrasonic flowmeters M-Flow and Time Delta-C

Name: Detector - FSSC - diameter 50 to 1200 mm for ultrasonic flow meters M-Flow and Time Delta-C
SKU: FSSC
Availability: InStock

Ultrasonic flow measurement

Fields of application

Non-intrusive ultrasonic flow meters are used in a wide range of industrial applications: food and beverage, water and wastewater, agriculture and irrigation, water management in buildings for energy savings, commissioning and maintenance of buildings (hotels, hospitals, etc.), water parks, swimming pools and aquariums, and the semiconductor industry.

Features

Measurement accuracy: ±1.5%.
Fast response time: 0.2 sec
Compact dimensions: 130 x 140 mm
Output signal : 4-20 mA, pulse output, relay alarm output
Digital communication : RS485 MODBUS™ option

Reference: FSSC

From 1115 €

Configure my product

Configure
Specifications
Documentations

Configure

MOUNTING SYSTEM

Standard with extendable rail

FASTENING SYSTEM

Without
Stainless steel clamps (2 x 1.5m) for diameters ≤ 300mm
Stainless steel screw clamps (4 x 1.0m) for diameters ≤ 600mm
Stainless steel cables (2 x 5m) for diameters ≤ 1500mm

ACOUSTIC COUPLER

Without
Silicone grease + KE348W composite (fixed mounting)
HIGH-Z silicone-free grease (temporary installation)

PROTECTION

IP65 protection
IP68 protection (supplied with 10 m cable)

REFERENCE

Without
Reference

Specifications

This clamp-on ultrasonic flow meter applies a measurement method based on transit time difference. By taking advantage of the latest electronics and digital signal processing technology, we have developed a device characterized by its excellent immunity to air bubbles and its extreme accuracy. A communication function (MODBUS: optional) is also available.

Pipe diameter	50 to 1200 mm
Pipe material	Plastic (PVC, etc.) Metal (steel, copper, aluminum, etc.) PP, PVDF
Liquid temperature	-40 °C to 120 °C
Mounting method	V or Z
Sensor type	FSC, FLR and FSV

Documentations

Datasheet: Fixed ultrasonic flowmeter Time Delta-c FSV and FSVL extended converters series 3 FSS sensors FLY cables

Datasheet Download

Datasheet: M-Flow PW series 4 fixed ultrasonic flowmeter FLR converter and FSS sensors FLY cables

Datasheet Download

Manual: Sensors FSS series and cables FLY for ultrasonic flow meters

Manuals Download

Manual: Calculating FSS series sensor spacing for ultrasonic flowmeters

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-C Extended FSVL converter

Manuals Download

Manual: Time Delta-C fixed ultrasonic flowmeter FSV converter

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-C Extended FSV and FSVL converters FSS sensors FLY cables Communication functions

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-C Extended FSV and FSVL converters FSS sensors FLY cables Advanced communication features

Manuals Download

Manual: Clamp-on ultrasonic flow meter Time Delta-c Advanced converters FSV and FSVL sensors FSS cables FLY

Manuals Download

Manual: Clamp-on ultrasonic flow meter M-Flow PW converter FLR and sensors FSS cables FLY

Manuals Download

Manual: M-Flow PW fixed ultrasonic flowmeter FLR converter and FSS sensors FLY cables communication functions

Manuals Download

Software: Calculation of FSS sensor spacing for ultrasonic flow meters

Software Download

Datasheet: Fixed ultrasonic flowmeter Time Delta-c FSV and FSVL extended converters series 2 FSS sensors FLY cables

Datasheet Download

Datasheet: M-Flow PW series 3 fixed ultrasonic flowmeter FLR converter and FSS sensors FLY cables

Datasheet Download

Brochure: Measures for energy and the environment

Brochures Download
