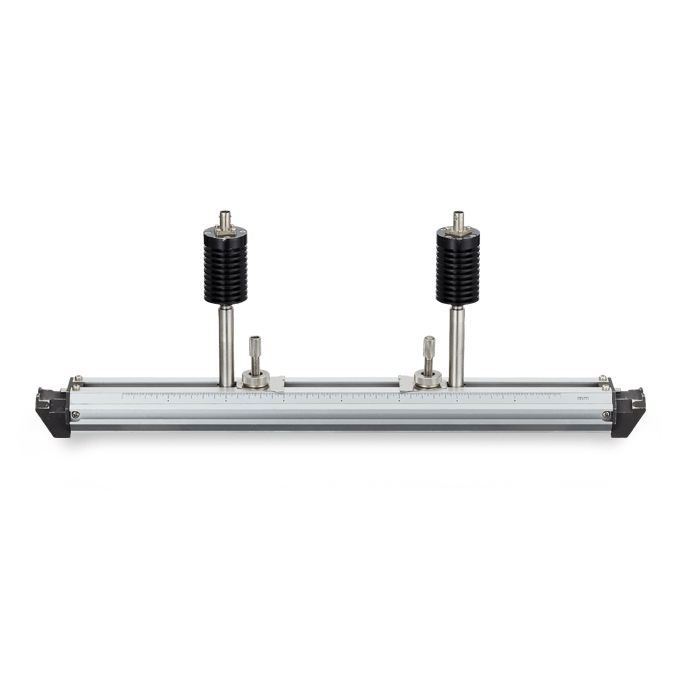

High temperature sensor - FSSH - diameter 50 to 400 mm for Time Delta-C ultrasonic flowmeter

Ultrasonic flow measurement

Fields of application

Detect leaks of any liquid in a pipeline, temporary measurement of liquid flow for maintenance purposes in pipes of any size, volumetric flow in clean liquids and those with small amounts of suspended solids or aeration such as surface water or raw sewage, non-invasive calibration of the flow rate of an existing electromagnetic flow meter, pump flow control and measurement and balancing of district heating networks.

Features

  • High accuracy flow metering: ±1,0% of flow rate
  • Fast response time: 0.2 sec
  • Compact size : only 142 x 170 mm
  • Water proof : IP66 ou IP67 (option)
  • Output signal : 4-20 mA, pulse output, relay alarm output
  • Digital communication : RS485 MODBUS™ option
Reference: FSSH
From 9598 €
Configure my product

Configure

Specifications

This clamp-on ultrasonic flow meter applies a measurement method based on transit time difference. By taking advantage of the latest electronic advances and digital signal processing technology, we have developed a compact, lightweight device with enhanced accuracy and ease of use, while retaining excellent immunity to air bubble formation. Communication capability (MODBUS: optional) is also available.



Pipe diameter50 to 400 mm
Pipe materialPlastic (PVC, etc.)
Metal (steel, copper, aluminum, etc.)
PP, PVDF
Liquid temperature-40 °C to 200 °C
Mounting methodV or Z
Sensor typeFSC, FSV

Documentations

Datasheet: Fixed ultrasonic flowmeter Time Delta-c FSV and FSVL extended converters series 3 FSS sensors FLY cables

Datasheet Download

Manual: Sensors FSS series and cables FLY for ultrasonic flow meters

Manuals Download

Manual: Calculating FSS series sensor spacing for ultrasonic flowmeters

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-C Extended FSVL converter

Manuals Download

Manual: Time Delta-C fixed ultrasonic flowmeter FSV converter

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-C Extended FSV and FSVL converters FSS sensors FLY cables Communication functions

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-C Extended FSV and FSVL converters FSS sensors FLY cables Advanced communication features

Manuals Download

Manual: Clamp-on ultrasonic flow meter Time Delta-c Advanced converters FSV and FSVL sensors FSS cables FLY

Manuals Download

Software: Calculation of FSS sensor spacing for ultrasonic flow meters

Software Download

Datasheet: Fixed ultrasonic flowmeter Time Delta-c FSV and FSVL extended converters series 2 FSS sensors FLY cables

Datasheet Download

Brochure: Measures for energy and the environment

Brochures Download
