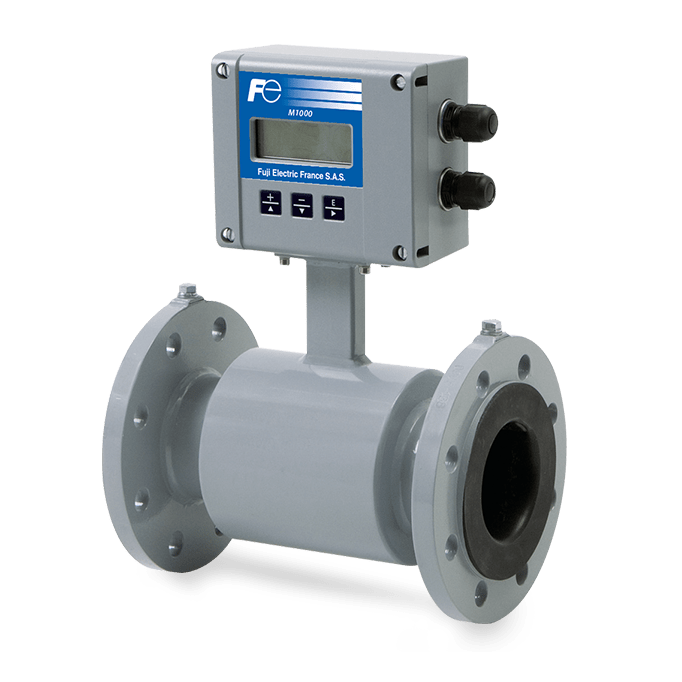

• M1000 general view header
  • M1000 general view header
Please contact us

Electromagnetic flow meter M1000

Electromagnetic flow measurement

Fields of application

II is the best choice for a wide variety of industrial applications, particularly in the water and wastewater treatment sector.

Features

  • Can be used with all measuring tubes
  • Accuracy: ± 0.3% of measured flow rate
  • Flow rate scale: 0.03 - 12 m/s
  • DN 6 - DN 500 (1/4" - 20")
  • IP67 protection
  • Modbus®, HART™, MBUS, Ethernet interfaces
Reference : M1000 Please contact us

Specifications

The M1000 electromagnetic flowmeter is one of the best solutions for bidirectional flow measurement of liquids with conductivities > 5 μS/cm (> 20 μS/cm for demineralized water). Its excellent price/performance ratio makes it suitable for a wide range of industrial applications. All information such as instantaneous flow rate, totalized volume and alarm messages are displayed on the backlit LCD indicator. The converter comes with a large number of inputs/outputs and communication interfaces as standard, enabling it to meet every need. The M1000 flowmeter comes in an aluminum case with IP67 protection.



Power supply92 – 275 VAC, 50/60 Hz, less than 10 VA or optional 9-36 VDC
Analog output0/4 - 20 mA, ≤800 ohms, flow direction is indicated on a separate logic output
Logic/frequency output2 passive open collector outputs 32 Vdc, 0-100 Hz 100 mA, 100-10 000 Hz
Both outputs can be active if the 4-20 mA analog output is not used
used (24 Vdc - max. 20 mA)
Output 2 can be used as SSR static relay output max. 230Vac/500mA
Logic output functionsMin/max alarm, preselection, flow direction, error message
Empty tube detectionSeparate electrode
Programming3 front panel buttons
InterfaceRS232, RS422/RS485 Modbus ® RTU as standard
HART™, M-Bus, and ETHERNET (Modbus ® TCP/IP) optional
Flow scale0.03 - 12 m/s
Accuracy0.3% ±2 mm/s of measured flow value
Repeatability0,1 %
Flow directionbidirectional
Pulse lengthProgrammable up to 2000 msec.
OutputsShort-circuit protection and galvanic isolation
Low-flow shutdown0-10 %
DisplayBacklit graphic LCD, current flow rate, 2 totalizers, status display
HousingCast aluminum
ProtectionIP67
Cable glandPower supply and outputs: 2 x M20
Sensor cableSignal to detector cables: M20
Ambient temperature-20°C to +60 °C
