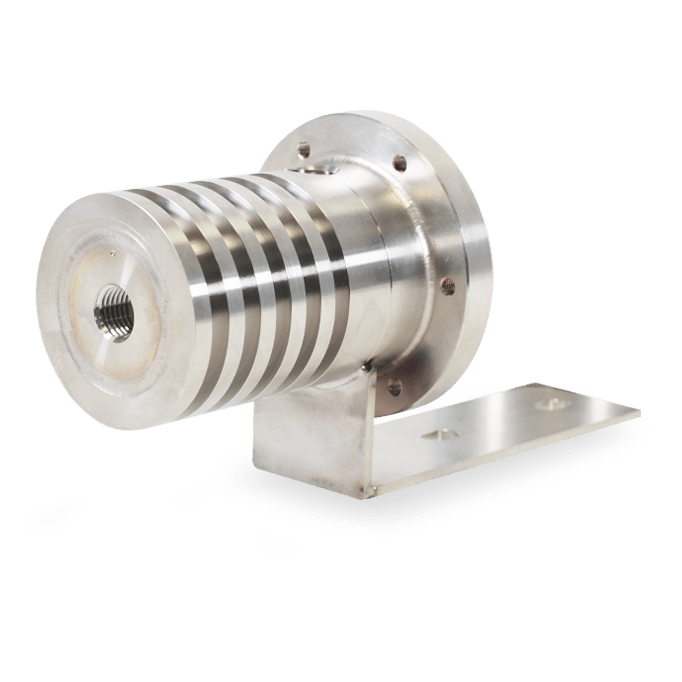

• ftc cell general view left header

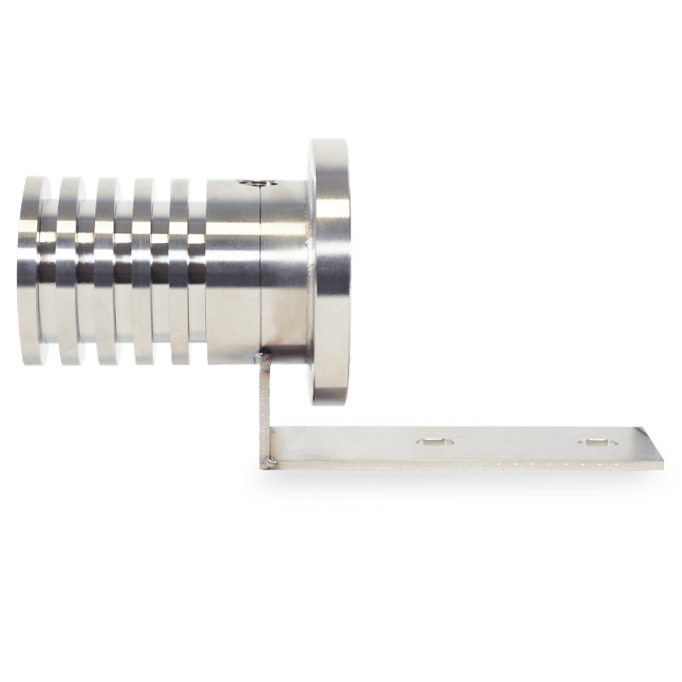

  • ftc cell left profile view header
  • ftc cell general view right header

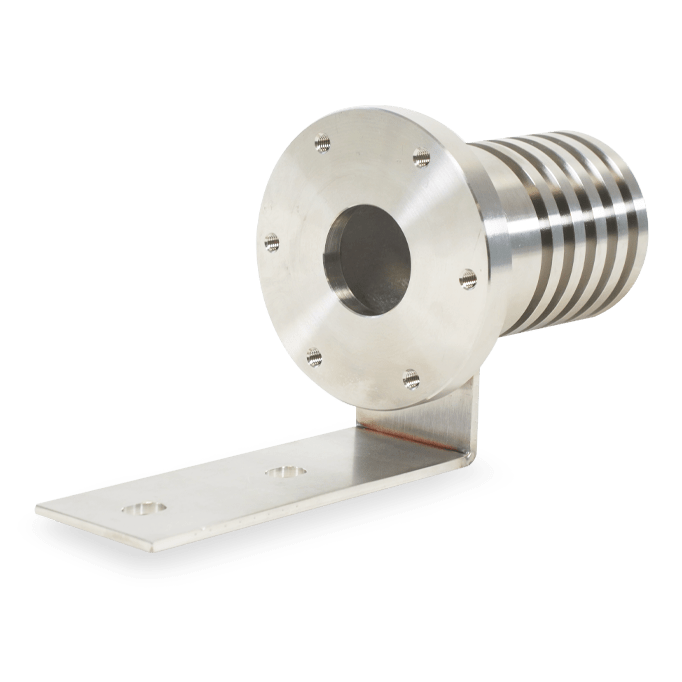

  • ftc cell back view right header

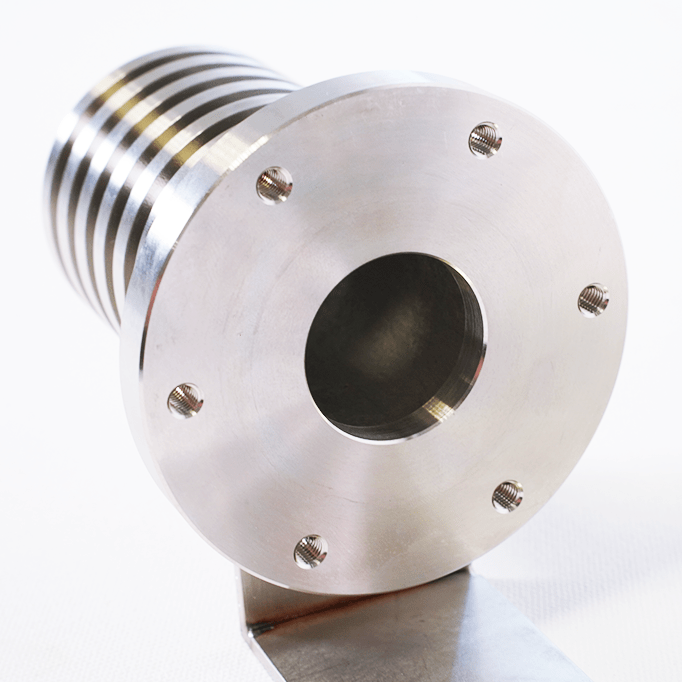

  • ftc cell view zoom 1 header

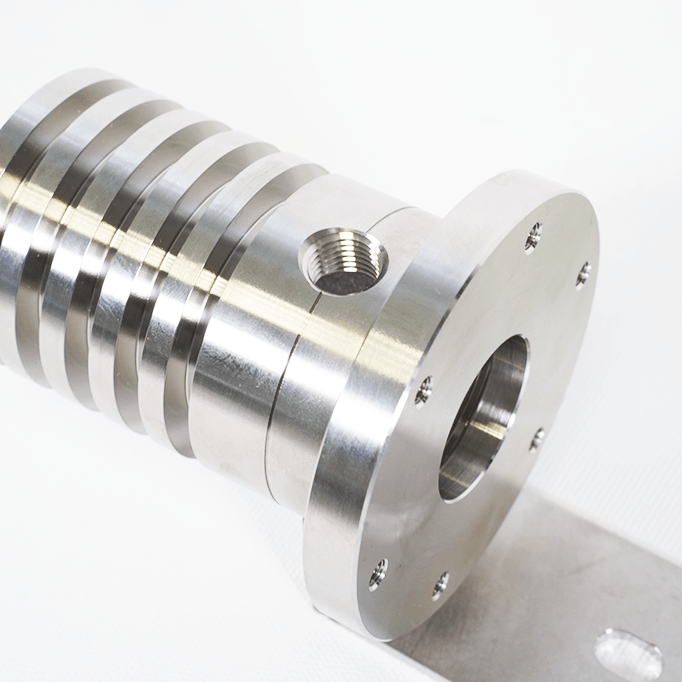

  • ftc cell view zoom 2 header
  • ftc cell general view left header
  • ftc cell left profile view header
  • ftc cell general view right header
  • ftc cell back view right header
  • ftc cell view zoom 1 header
  • ftc cell view zoom 2 header
Please contact us

Flow through cell for oxygen analyser - FTC

Extractive mounting of ZFK8 zirconia O2 probe.

Fields of application

Continuous measurement of atmospheric emissions
Atmosphere control in industrial furnaces
Combustion control
Humidity measurement in flue gas

Features

  • Economical
  • Compact size
  • Rugged
Reference : FTC Please contact us

Specifications

The FTC flow through cell is an optional component of Fuji Electric's zirconia oxygen measurement platform.

This element enables the ZFK8 O2 zirconia probe and ZKM O2 controller to be used as an extractive oxygen analyser.

The FTC flow cell, on which the ZFK8 oxygen probe is mounted, is made entirely of S316L stainless steel. To circulate the gas to be analyzed, it is fitted with double-ring stainless steel inlet and outlet fittings for 6mm tubing.
