In-situ oxygen measurement
Fields of application
Ideal for combustion control in boilers, incinerators and furnaces.
Features

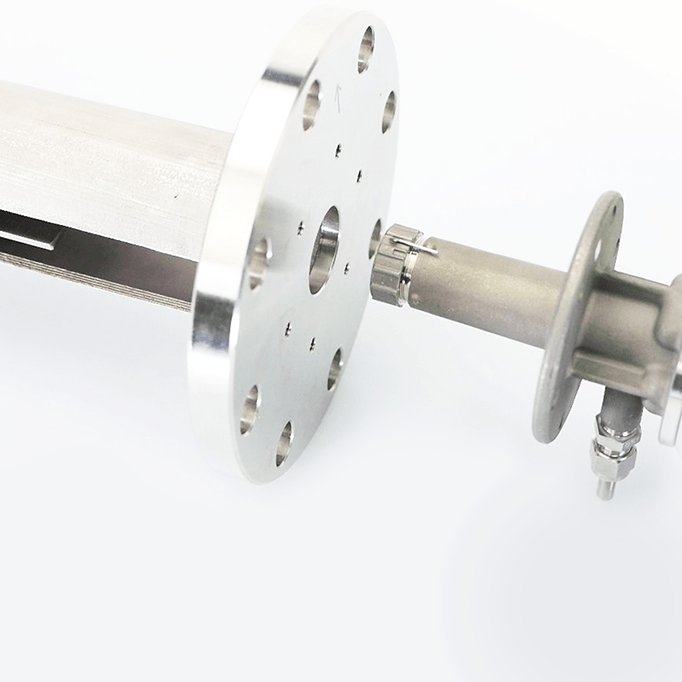

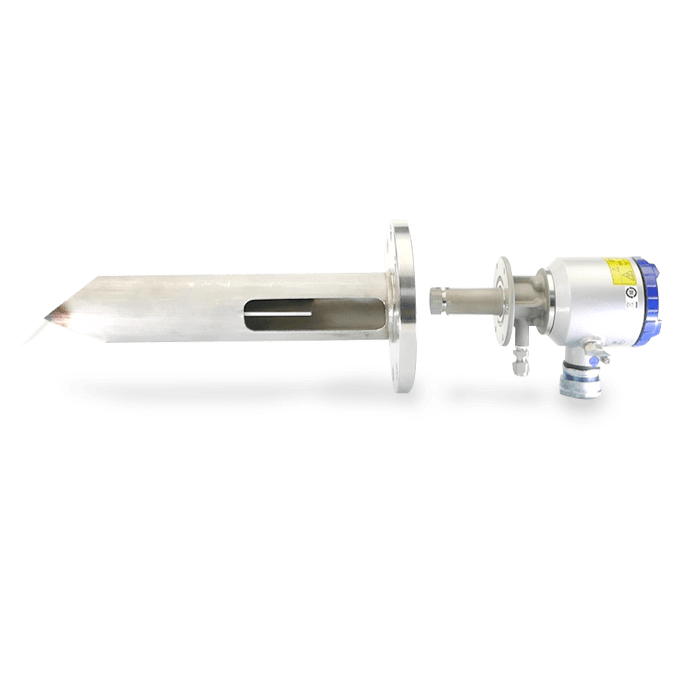

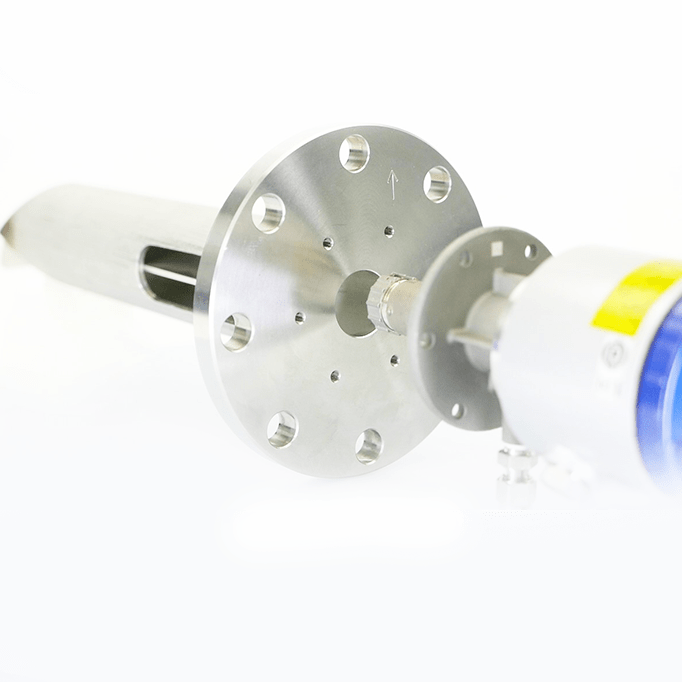

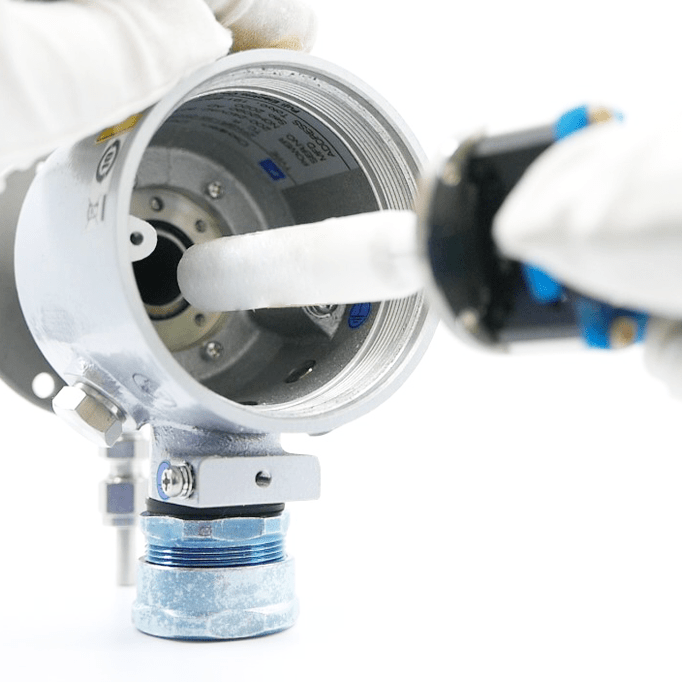

The probe is used for continuous measurement of oxygen concentration in flue gases from boilers and industrial furnaces, for combustion control and optimization. It consists of a measurement probe combined with a signal converter. The probe is associated with a convection tube which is inserted into the flue gas to channel the gases to the probe for oxygen measurement. The converter (ZKM) is a microprocessor-based signal converter that manages inputs/outputs, digital communication, display and control of the overall operation. The converter features advanced functions such as self-diagnosis of operation and probe regeneration, giving it very long stability.
| Measured gas temperature | Convection tube system : -10 °C to +600 °C (for general use, corrosive gases) System with ejector : -10 °C to 1500 °C (for high-temperature gases) -10 °C to +800 °C (general purpose) |
| Measured gas pressure | -3 to +3 kPa (-306 to +306 mm H2O) |
| Operating temperature | - 10 °C to +60 °C for the detector head -5 °C to +100 °C for the ejector ≤ 125 °C on detector flange, under voltage |
| Storage temperature | -20 °C to +70 °C for the sensing element -10 to +100 °C for the ejector |
| Construction | Waterproof and dustproof (IEC IP66) |

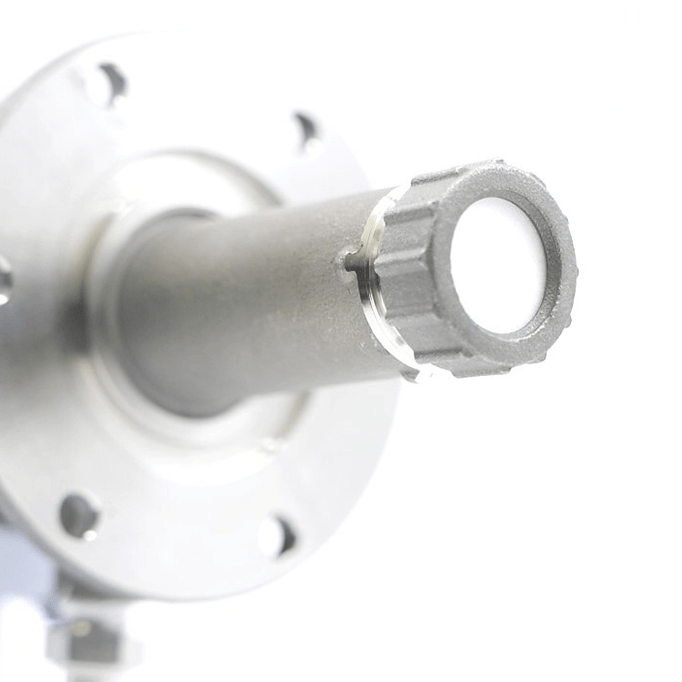

| Filter | Alumina (porosity: 50 µm) and quartz paper |
| Main materials of parts in contact with gas | Detector: Zirconium, 316 stainless steel, platinum Convection tube: 316 stainless steel Standard ejector: 316 stainless steel, 304 stainless steel High-temperature ejector: SiC, stainless steel 316, stainless steel 304 |
| Calibration gas inlet | 6 mm tube or 1/4" tube (according to datasheet ) |
| Calibration gas flow | 1.5 to 2 l/min |
| Detector mounting | ± 45° from horizontal, the ambient air must be be clean |
| Ejector air inlet flow rate | 5 to 10 l/min |
| Purge air inlet pressure | 200 to 300 kPa (2 to 3 kgf/cm2) |
| Finish color | Silver and steel color |
| Exterior dimensions | (L x Ø max) 210 mm x 100 mm |
| Approximate weight | Detector: 1.6 kg Ejector: 15 kg (with 1 m tube) Standard 1 m convection tube: 5 kg |
Certificate: UKCA ZKM zirconia oxygen controller and ZFK8 zirconia oxygen probe
Certificates DownloadCertificate: EU declaration of conformity ZKM zirconia oxygen controller and ZFK8 zirconia oxygen probe
Certificates DownloadCertificate: TUV QAL1 zirconia oxygen controller ZKM and zirconia oxygen probe ZFK8
Certificates DownloadTechnologies
Ideal for combustion control in boilers, incinerators and furnaces, an in-situ Zirconia oxygen analyser helps reduce gas emissions.

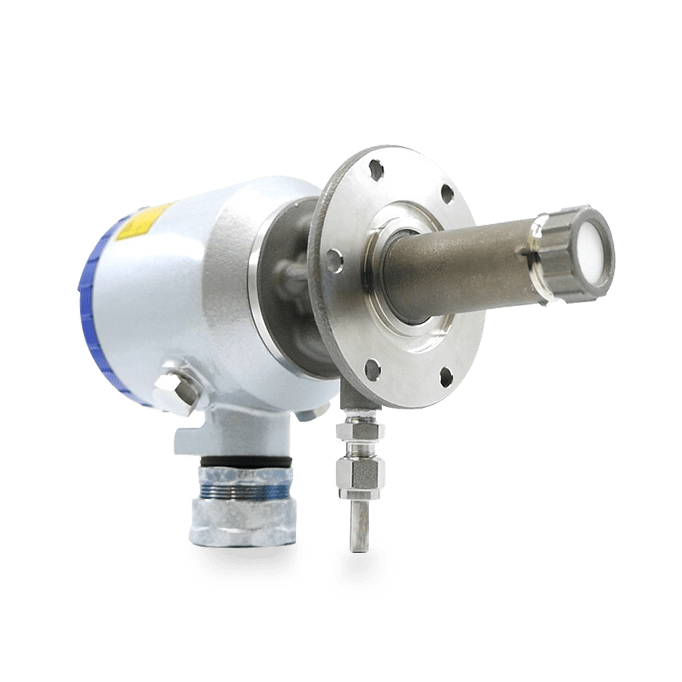

Zirconia oxygen probe - ZFK8
