Thermal conductivity gas analysis for explosive areas
Fields of application
Monitoring gas concentrations in semiconductor manufacturing, Controlling hydrogen purity in generators, Regulating the atmosphere in industrial furnaces, Checking the purity of industrially produced gases, Monitoring contaminants in superconducting cooling systems, Monitoring the efficiency of gas separation processes, Monitoring hydrogen purity in chemical industries, Controlling hydrogen production processes, Detecting hydrogen leaks in storage and transport facilities, Measurement of hydrogen concentration in gaseous mixtures for research purposes, Safety monitoring in areas at risk of explosion due to hydrogen, Hydrogen analysis in oil and gas refining processes, Monitoring in electrolyzers, Analysis of hydrogen produced by biomass thermolysis, Hydrogen steam reforming process monitoring, Hydrogen measurement in fuel cells, Monitoring of hydrogen production by coal gasification.
Features
Theanalyser thermal conductivity gas meter is a analyser gas meter that quantitatively measures gas concentration using the temperature of a platinum wire heated by the cause-and-effect method. Theanalyser continuously measures the concentration of gases such as Helium, Argon, Hydrogen, Methane, Carbon Dioxide with high stability.
NO CE
| Principle | Thermal conductivity |
| Fuji Electric Components | He, Ar, H2, CH4, CO2 |
| Measurement ranges | Depending on the components |
| Repeatability | ≤ ± 1 % PE |
| Linearity | ≤ ± 2 % PE |
| Response time (for 90%) | ≤ 60 s (standard version), ≤ 10 s (fast-response version) |
| Analog outputs | 4-20 mAdc, 0-1 Vdc or 0-10 mVdc |
| Contact outputs (option) | 5 SPST-NO contacts: calibration in progress, high/low limit alarm, etc. |
| Contact inputs (optional) | 3 dry contacts; hold measurement, change range, start self-calibration |
| Display | Backlit LCD |
| Communication (optional) | RS-232C Modbus® |
| Assembly | Panel mount |
| Supply voltage | 100-240 Vac, 50/60 Hz |
| Dimensions | 192 (W) × 240 (H) × 213 (D) mm |
| Weight | Approx. 5 kg |
Application: Ensure a successful heat treatment in a controlled atmosphere
Application Sheet DownloadTechnologies
Discover our H2, He and Ar thermal conductivity analysers for reliable process control in furnaces, metallurgy, semiconductor industry

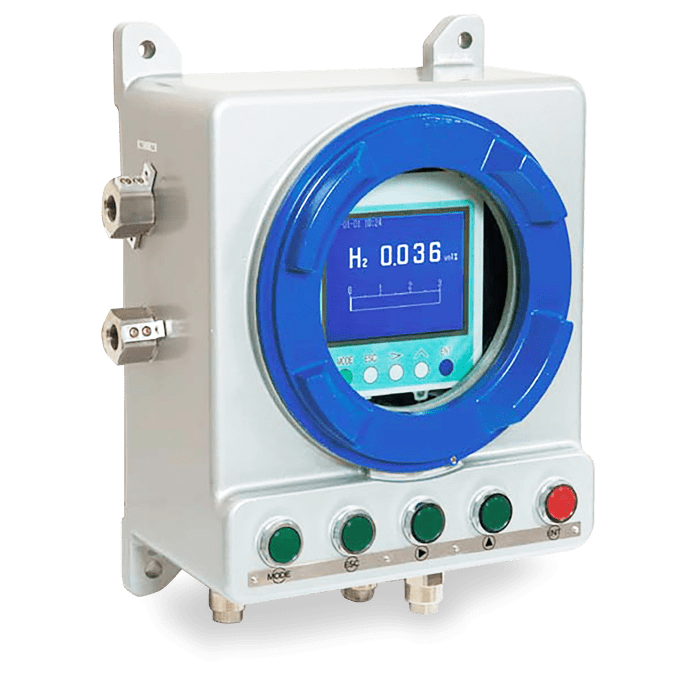

Thermal conductivity gas analyser for EX zones - ZAFE
Reference : ZAFE
