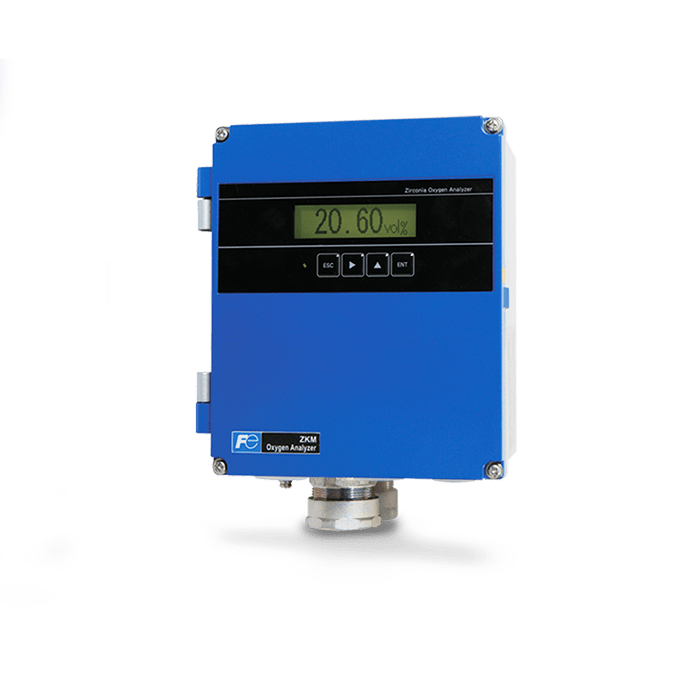

• ZKMA general view header

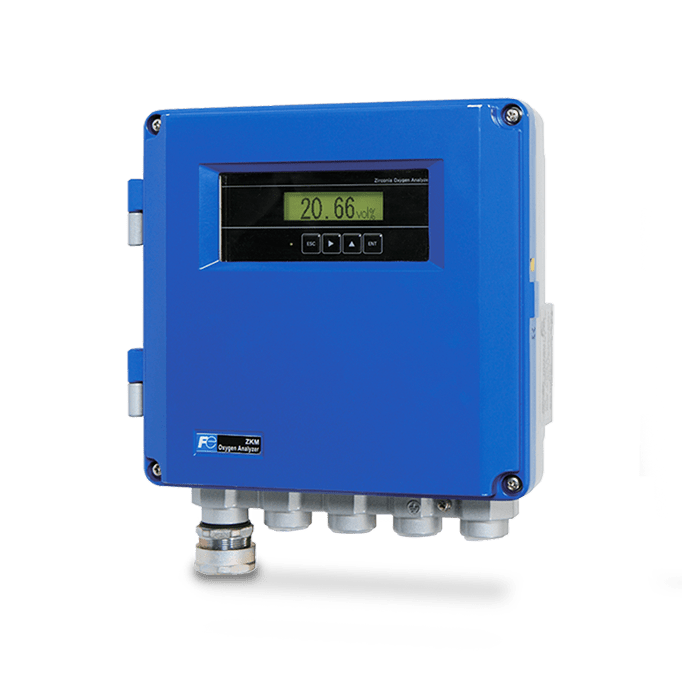

  • ZKMB general view header

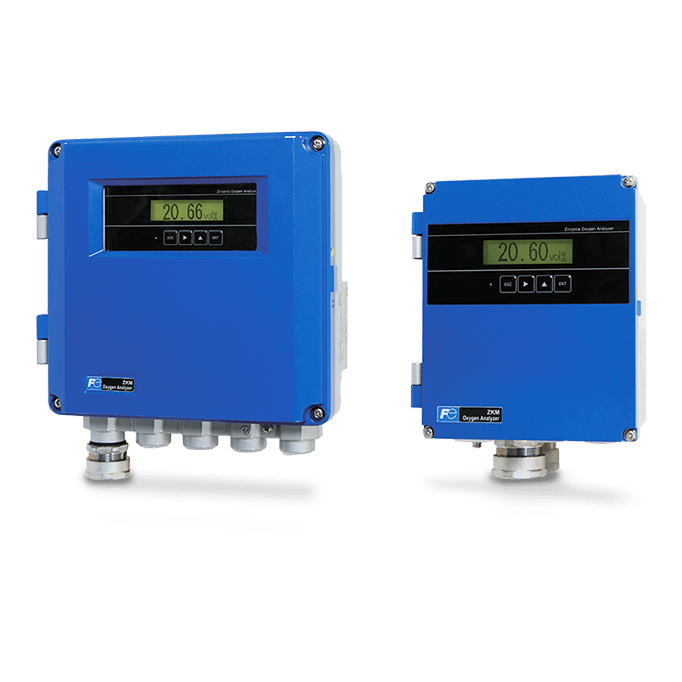

  • ZKMA ZKMB general view header
  • ZKMA general view header
  • ZKMB general view header
  • ZKMA ZKMB general view header
In stock

Zirconia oxygen converter - ZKM

Oxygen measurement zirconia

Fields of application

Ideal for combustion control in boilers, incinerators and furnaces.

Features

  • No gas conditioning system required
  • Easy maintenance
  • High reliability thanks to diagnostic function
  • Safe and secure
  • Easy to use
  • HART® communication is available as an option
Catalogue number: ZKM
From 2692 €
Configure my product

Configure

Specifications

This analyser is used for continuous measurement of oxygen concentration in flue gases from boilers and industrial furnaces, for combustion control and optimization. It consists of a measurement probe combined with a signal converter. The probe is associated with a convection tube which is inserted into the flue gas to channel the gases to the probe for oxygen measurement. The converter (ZKM) is a microprocessor-based signal converter that manages inputs/outputs, digital communication, display and control of the overall operation. The converter features advanced functions such as self-diagnosis of operation and probe regeneration, giving it very long stability.



ApplicationO2 measurement in non-combustible gas mixtures
PrincipleIn-situ zirconia sensor
ScaleO ... 2 ... 50% Vd O2 (user-configurable)
Repeatability<± 0,5 % PE
Linearity<±2%PE
Response time (for 90%)4 s ... 7 s
Analog output4-20 mAcc or 0-1 Vcc
Contact outputs6 points, SPST-NO contacts: high/low limit alarm
maintenance in calibration in progress, fault analyser, purging in progress, calibration in progress, fault analyser
Contact inputs3 dry contacts: select from 7 options
DisplayBacklit LCD
ConnectivityRS-485 Modbus or HART
Optional functionsCombustion efficiency display, cleaning, automatic calibration, selection valve, flow meter
Safety functionsWhen theanalyser detects a break in the thermocouple used to control the temperature in the detector, it cuts power to the detector.
In the event of an emergency, the detector's power supply can also be cut off via an external input.
Locking function prevents operating errors
Controller installationPanel or pipe mounting
Cable length between controller and detector < 100m
Power supply100-120 v ac or 200-240 v ac, 50/60 Hz
