HMI - Monitouch V1008 - 8.4 inches

Name: HMI - Monitouch V1008 - 8.4 inches
SKU: V1008
Availability: InStock

Monitouch V10 human-machine interface

Fields of application

Molding machine, assembly machine, PLC packaging machine, press machine, reflow oven, semiconductor film former, filler, water and wastewater treatment plant.

Features

Ultra-fast screen switching speed
High-performance quad-core CPU
Full compatibility with V9 communication units
Reduced start-up time
Fast data transfer capabilities

Catalogue number: V1008

From 2493 €

Configure my product

Configure
Specifications
Documentations

Configure

Specifications

The Monitouch V1008 human-machine interface is a high-performance model in the V10 series, designed to offer fluid, fast interaction between the user and industrial machines. Equipped with an 8.4" TFT screen, it boasts 800x600 resolution and can display up to 16.7 million colors. Thanks to its quad-core CPU, this model guarantees high processing speed, enabling rapid screen switching and a significant reduction in start-up time. Compatible with V9 communication units, the V1008 facilitates integration into complex industrial environments, while ensuring optimum reliability and efficiency.

Rated voltage	24 VDC
Permissible voltage	±10％
Insulation resistance	Between external AC terminal and FG: 500V DC, 10MΩ or more Between external DC terminal and FG: 500V DC, 10MΩ or more
Ambient temperature	0～50℃
Ambient humidity	85%RH or less (non-condensing, maximum wet bulb temperature less than or equal to 39°C)
Operating altitude	2000 meters max
Environment	Do not expose to corrosive gases or conductive dust.
Storage temperature	-10～60℃
Storage humidity	85% RH minimum (non-condensing)
Level of contamination	Level 2
Grounding	Ground resistance: less than 100Ω, FG/SG separation
Structure	Front case: IP66, Type 4X/13 (when gasket is used) Back box: IP20 Installation method: panel mounting
Dimensions	235.0 × 180.0 × 48.7 mm

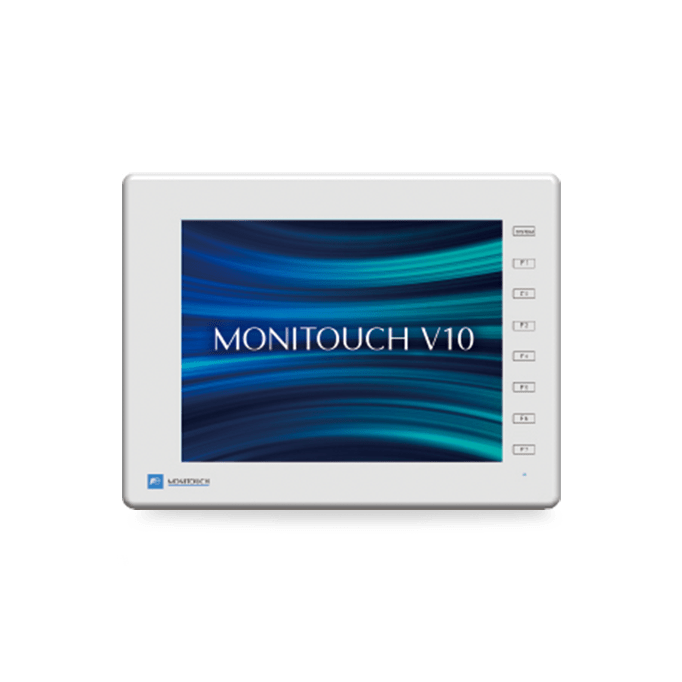

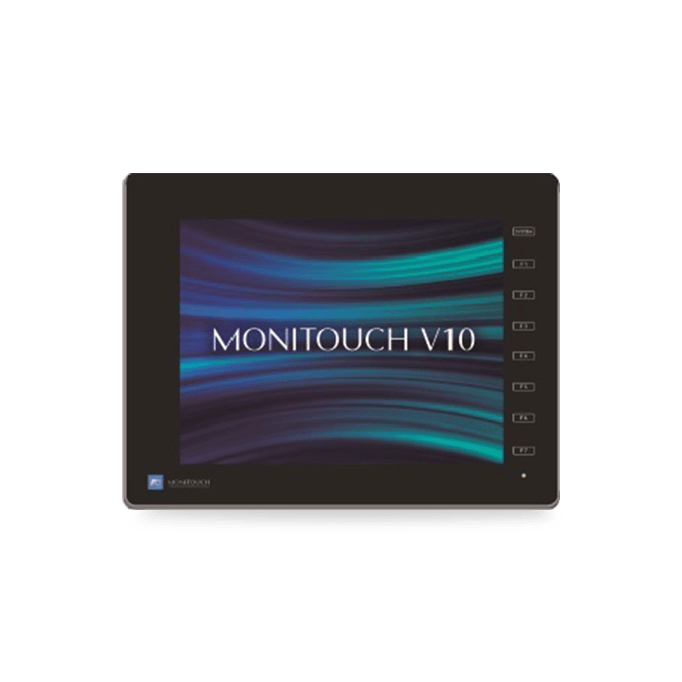

Color	Front case: Light gray / Black (black model) Rear housing: Light gray
Material	PBT+GF30 resin
