HMI - Monitouch V1010 - 10.4 inches

Name: HMI - Monitouch V1010 - 10.4 inches
SKU: V1010
Availability: InStock

Monitouch V10 human-machine interface

Fields of application

Molding machine, assembly machine, PLC packaging machine, press machine, reflow oven, semiconductor film former, filler, water and wastewater treatment plant.

Features

Ultra-fast screen switching speed
High-performance quad-core CPU
Full compatibility with V9 communication units
Reduced start-up time
Fast data transfer capabilities

Reference : V1010

From 2896 €

Configure my product

Configure
Specifications
Documentations

Configure

Specifications

The Monitouch V1010 human-machine interface is a high-performance interface designed to optimize industrial operations. With a 10.4" screen and quad-core CPU, it offers ultra-fast screen switching speed and efficient data transfer capabilities. Compatible with V9 communication units, it ensures a smooth transition and a significant reduction in start-up time, meeting the rigorous demands of modern industrial environments.

Rated voltage	100-240V AC 24 VDC (depending on model)
Permissible voltage	-15%, +10% ±10％ (depending on model)
Insulation resistance	Between external AC terminal and FG: 500V DC, 10MΩ or more Between external DC terminal and FG: 500V DC, 10MΩ or more
Ambient temperature	0～50℃
Ambient humidity	85%RH or less (non-condensing, maximum wet bulb temperature less than or equal to 39°C)
Operating altitude	2000 meters max
Environment	Do not expose to corrosive gases or conductive dust.
Storage temperature	-10～60℃
Storage humidity	85% RH minimum (non-condensing)
Level of contamination	Level 2
Grounding	Ground resistance: less than 100Ω, FG/SG separation
Structure	Front case: IP66, Type 4X/13 (when gasket is used) Back box: IP20 Installation method: panel mounting
Dimensions	303.8×231.0×53.8 mm

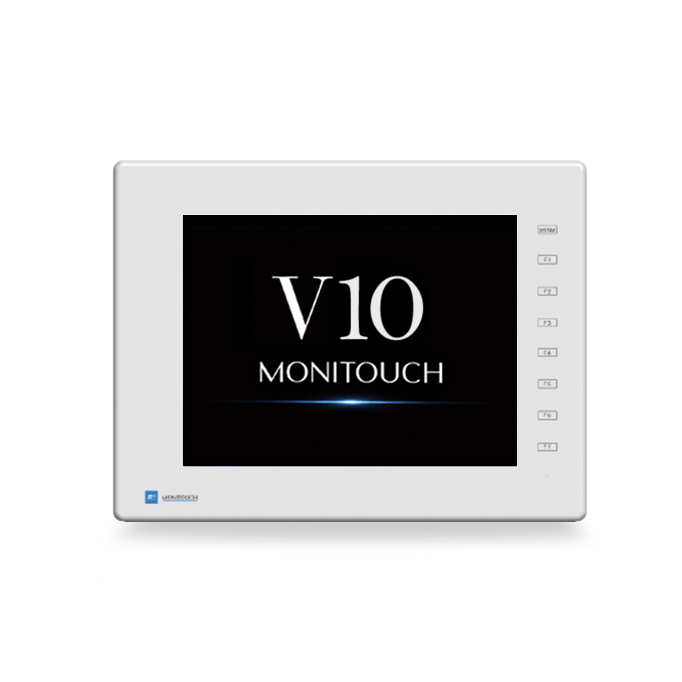

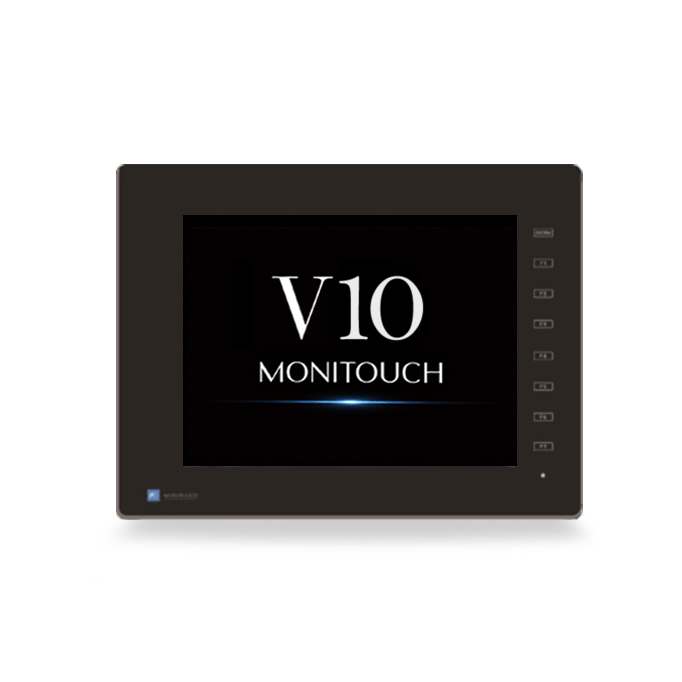

Color	Front case: Light gray / Black (black model) Rear housing: Light gray
Material	PBT+GF30 resin
