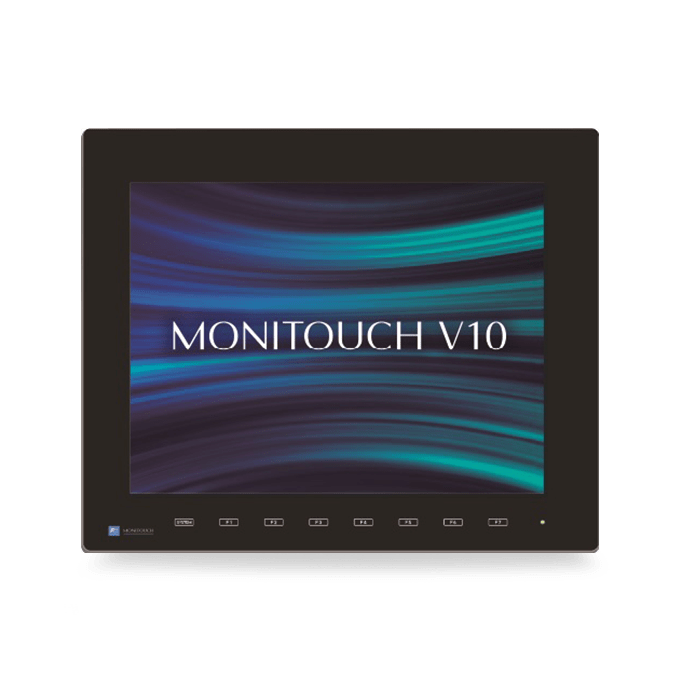

HMI - Monitouch V1015 - 15 inches

Monitouch V10 human-machine interface

Fields of application

Molding machine, assembly machine, PLC packaging machine, press machine, reflow oven, semiconductor film former, filler, water and wastewater treatment plant.

Features

  • Ultra-fast screen switching speed
  • High-performance quad-core CPU
  • Full compatibility with V9 communication units
  • Reduced start-up time
  • Fast data transfer capabilities
Reference : V1015
From 4375 €
Configure my product

Configure

Specifications

The MONITOUCH V1015 Human Machine Interface (HMI) is designed to deliver state-of-the-art performance in a variety of industrial environments. Featuring a 15" TFT screen, this HMI integrates a quad-core CPU for exceptional responsiveness, enabling smooth, continuous operation even with multiple devices connected. It ensures full compatibility with V9 series communication units, facilitating upgrades and system integrations. Thanks to its fast data transfer capabilities and reduced start-up times, the V1015 optimizes industrial processes by minimizing waiting times and maximizing operational efficiency.



Rated voltage100-240V AC
24 VDC (depending on model)
Permissible voltage-15%, +10%
±10% (depending on model)
Insulation resistanceBetween external AC terminal and FG: 500V DC, 10MΩ or more
Between external DC terminal and FG: 500V DC, 10MΩ or more
Ambient temperature0~40℃
Ambient humidity85%RH or less (non-condensing, maximum wet bulb temperature less than or equal to 39°C)
Operating altitude2000 meters max
EnvironmentDo not expose to corrosive gases or conductive dust.
Storage temperature-10~50℃
Storage humidity85% RH minimum (non-condensing)
Level of contaminationLevel 2
GroundingGround resistance: less than 100Ω, FG/SG separation
StructureFront case: IP66, Type 4X/13 (when gasket is used)
Back box: IP20
Installation method: panel mounting
Dimensions382.8×312.8×79.2 mm
ColorFront case: Light gray / Black (black model)
Rear housing: Light gray
MaterialPBT+GF30 resin

Documentations

Brochure: Selection guide for variable frequency drives and HMI

Brochures Download
