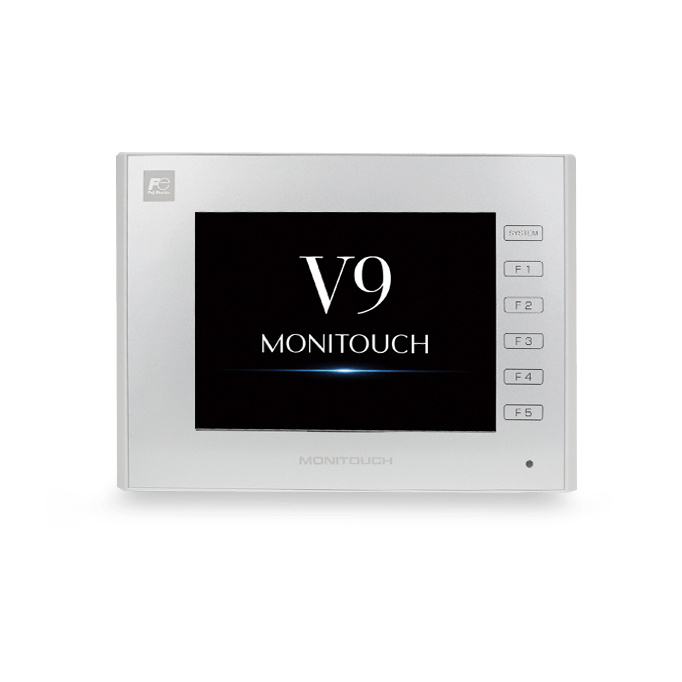

• V9060 front view header

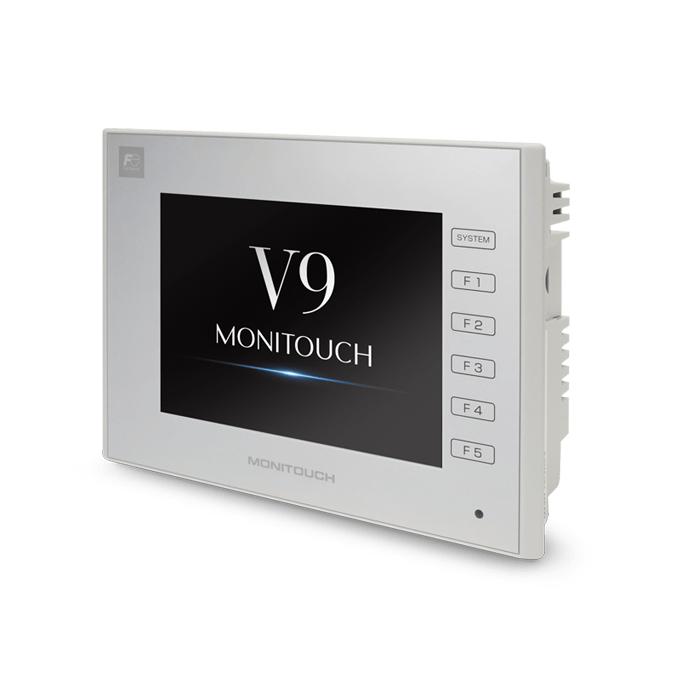

  • V9060 diagonal view left header 2

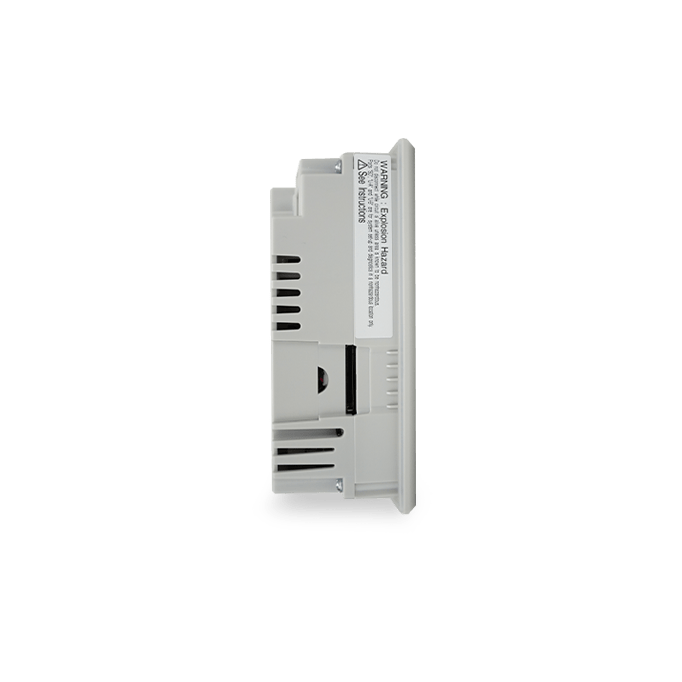

  • V9060 profile view left header

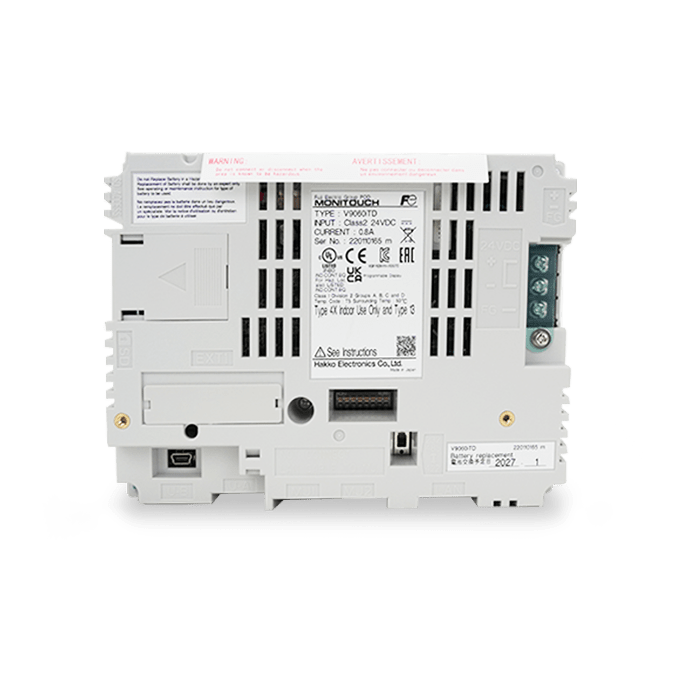

  • V9060 back view header

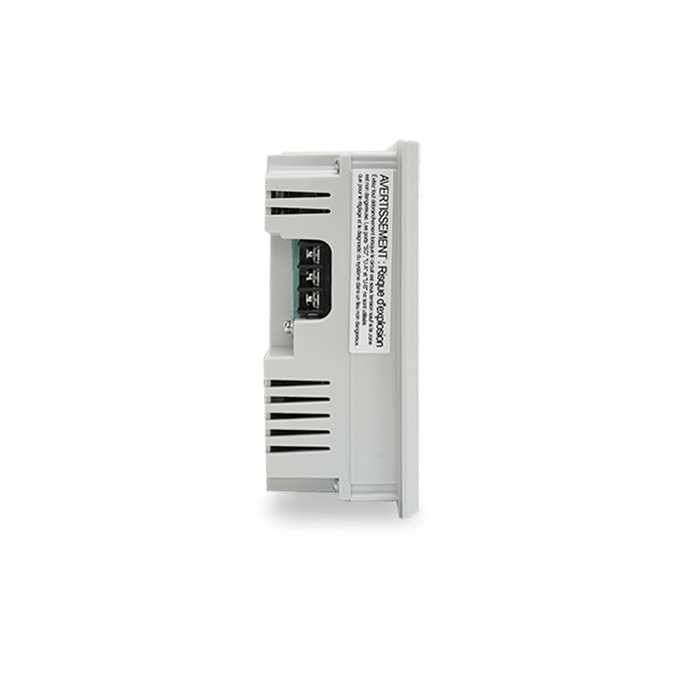

  • V9060 profile view right header
  • V9060 diagonal view right header

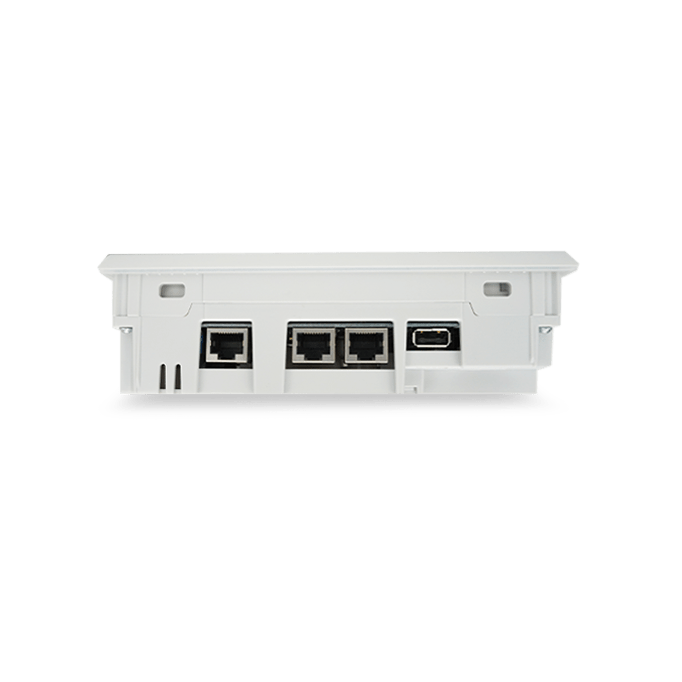

  • V9060 view profile bottom header

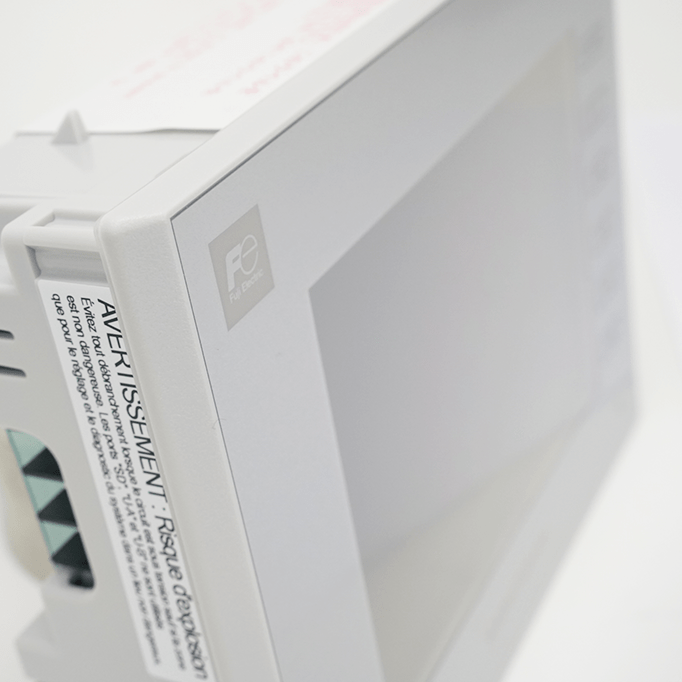

  • V9060 zoom low header

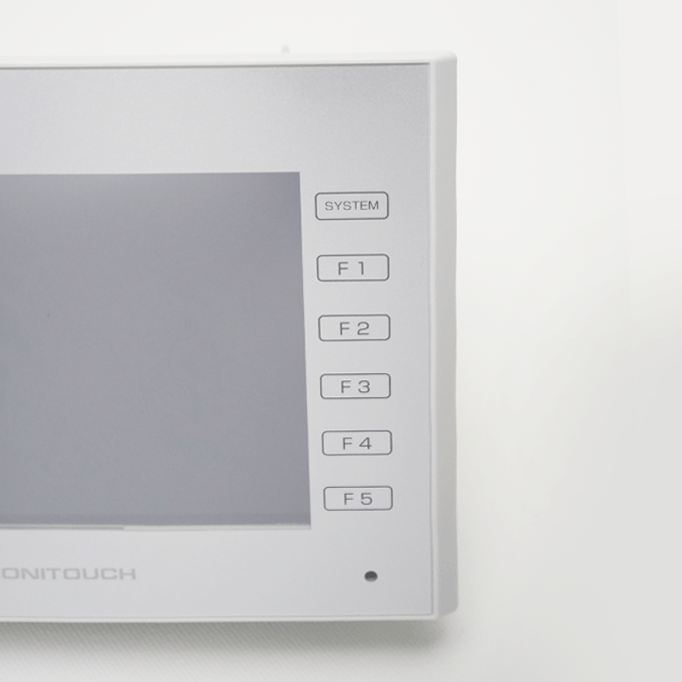

  • V9060 zoom face header
  • V9060 front view header
  • V9060 diagonal view left header 2
  • V9060 profile view left header
  • V9060 back view header
  • V9060 profile view right header
  • V9060 diagonal view right header
  • V9060 view profile bottom header
  • V9060 zoom low header
  • V9060 zoom face header
In stock

HMI - Monitouch V9060 - 5.7 inches

Monitouch V9 human-machine interface

Fields of application

Molding machine, assembly machine, PLC packaging machine, press machine, reflow oven, semiconductor film former, filler, water and wastewater treatment plant

Features

  • Abundant information available
  • Extended network (Wifi, dual Ethernet addressing, etc.)
  • Capacitive touch technology
  • Remote connection from tablet PCs: VNC server function
  • Wireless data transfer: Wireless LAN function
  • Secure, easy and inexpensive communication thanks to VPN functionality
Catalogue number: V9060iTD
From 1256 €

Specifications

Features common to all three HMI (human-machine interface) models :

  • Accept remote connections via VNC
  • Same amount of memory, same communication ports
  • Use FTP protocol and SD card storage
  • Modbus® RTU and TCP communication and Master/Slave configuration for easy connection to your PLC or PUM series modular controllers
  • V-SFT software: a single program for configuring all touch operator models in the range. Updates available free of charge from the Monitouch Fuji Electric website.
  • Tellus and V-Server remote monitoring and control software available



Permissible voltage±10%
Insulation resistance500 V DC 10 Ω mini
Ambient temperature0～50℃
Ambient humidity85% RH minimum (non-condensing)
Operating altitude2000 meters max
EnvironmentDo not expose to corrosive gases or conductive dust.
Storage temperature-10～60℃
Storage humidity85% RH minimum (non-condensing)
Level of contaminationLevel 2
GroundingGround resistance: less than 100 Ω, FG/SG separation
StructureFront protection: IP66 equivalent (if gasket used.), Rear cover: IP20, single unit, installation method: panel mounting
Dimensions182.5×138.8×53.0 mm
ColorLight grey
MaterialPC

Documentations

in Down arrow

Brochure: Selection guide for variable frequency drives and HMI

Brochures Download
in

Certificate: EU declaration of conformity HMI Monitouch V9

Certificates Download
in Down arrow

Manual : HMI Monitouch V9 hardware specifications

Manuals Download
in

Manual : Replacing the HMI Monitouch V9 lithium battery

Manuals Download
in

Manual: Monitouch V9060 5.7" HMI

Manuals Download
in

Manual: Monitouch V9 HMI macro reference

Manuals Download
en

Manual : Guide to the Monitouch V9 HMI training manual

Manuals Download
in

datasheet : HMI Monitouch V9060

Datasheet Download
in

datasheet : Monitouch V9 HMI

Datasheet Download
in

Brochure: HMI Monitouch V9 model in black

Brochures Download
in Down arrow

Brochure: HMI Monitouch V9

Brochures Download

Technologies

HMI - Monitouch V9060 - 5.7 inches

From 1256 €

Reference : V9060iTD
