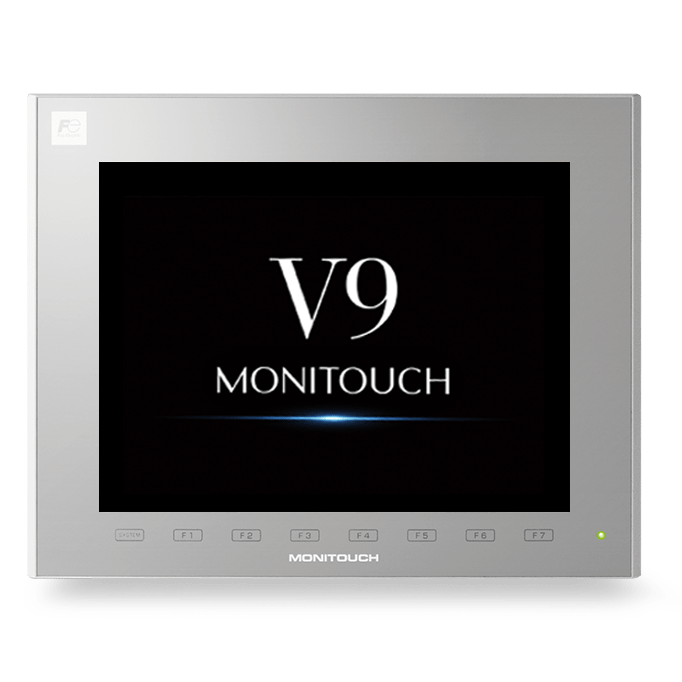

• V9120 front view header
  • V9120 front view header
In stock

HMI - Monitouch V9120 - 12.1 inch

Monitouch V9 human-machine interface

Fields of application

Molding machine, assembly machine, PLC packaging machine, press machine, reflow oven, semiconductor film former, filler, water and wastewater treatment plant.

Features

  • Abundant information available
  • Extended network (Wifi, dual Ethernet addressing, etc.)
  • Capacitive touch technology
  • Remote connection from tablet PCs: VNC server function
  • Wireless data transfer: Wireless LAN function
  • Secure, easy and inexpensive communication thanks to VPN functionality
Catalogue number: V9120
From 3451 €
Configure my product

Configure

Specifications

Features common to all three HMI (human-machine interface) models :

  • Accept remote connections via VNC
  • Same amount of memory, same communication ports
  • Use FTP protocol and SD card storage
  • Modbus® RTU and TCP communication and Master/Slave configuration for easy connection to your PLC or PUM series modular controllers
  • V-SFT software: a single program for configuring all touch operator models in the range. Updates available free of charge from the Monitouch Fuji Electric website.
  • Tellus and V-Server remote monitoring and control software available



Rated voltage100-240 V AC
24 VDC (depending on model)
Permissible voltage-15 %, +10 %
±10％ (depending on model)
Insulation resistance500 V DC 10 Ω mini
Ambient temperature0～50℃
Ambient humidity85% RH minimum (non-condensing)
Operating altitude2000 meters max
EnvironmentDo not expose to corrosive gases or conductive dust.
Storage temperature-10～60℃
Storage humidity85% RH minimum (non-condensing)
Level of contaminationLevel 2
GroundingGround resistance: less than 100 Ω, FG/SG separation
StructureFront protection: IP66 equivalent (if gasket used.), Rear cover: IP20, single unit, installation method: panel mounting
Dimensions382.8×312.8×80.8 mm
327.8×261×54.9 mm
ColorLight grey
MaterialPC
Front panel: Aluminum; Rear cover: Resin (depending on model)

Documentations

in Down arrow

Brochure: Selection guide for variable frequency drives and HMI

Brochures Download
in

Certificate: EU declaration of conformity HMI Monitouch V9

Certificates Download
in

Manual: Monitouch V9120 12.1" HMI

Manuals Download
in Down arrow

Manual : HMI Monitouch V9 hardware specifications

Manuals Download
in

Manual : Replacing the HMI Monitouch V9 lithium battery

Manuals Download
in

Manual: Monitouch V9 HMI macro reference

Manuals Download
en

Manual : Guide to the Monitouch V9 HMI training manual

Manuals Download
in

datasheet : HMI Monitouch V9120

Datasheet Download
in

datasheet : Monitouch V9 HMI

Datasheet Download
in

Brochure: HMI Monitouch V9 model in black

Brochures Download
in Down arrow

Brochure: HMI Monitouch V9

Brochures Download

Technologies

HMI - Monitouch V9120 - 12.1 inch

From 3451 €

Reference : V9120

Configure
