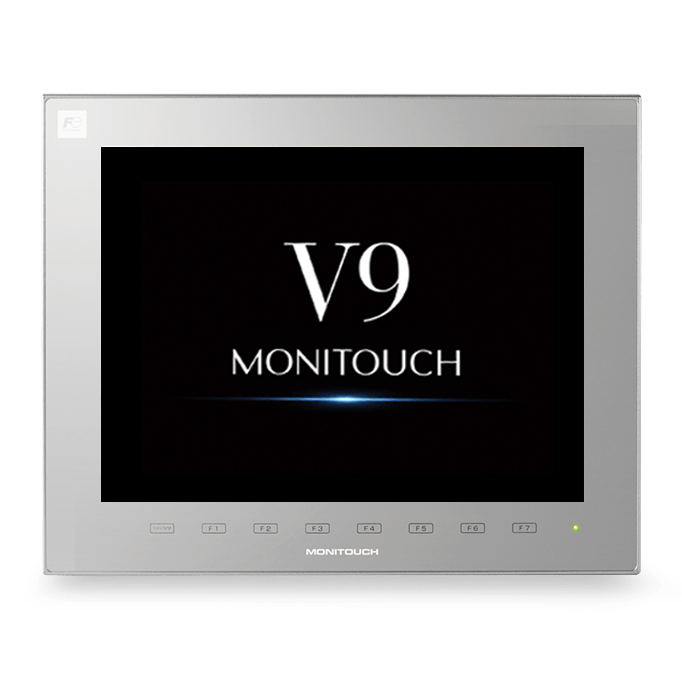

• V9150 front view header
  • V9150 front view header
In stock

HMI - Monitouch V9150 - 15 inches

Monitouch V9 human-machine interface

Fields of application

Molding machine, assembly machine, PLC packaging machine, press machine, reflow oven, semiconductor film former, filler, water and wastewater treatment plant.

Features

  • Abundant information available
  • Extended network (Wifi, dual Ethernet addressing, etc.)
  • Capacitive touch technology
  • Remote connection from tablet PCs: VNC server function
  • Wireless data transfer: Wireless LAN function
  • Secure, easy and inexpensive communication thanks to VPN functionality
Catalogue number: V9150
From 4335 €
Configure my product

Configure

Specifications

Features common to all three HMI (human-machine interface) models :

  • Accept remote connections via VNC
  • Same amount of memory, same communication ports
  • Use FTP protocol and SD card storage
  • Modbus® RTU and TCP communication and Master/Slave configuration for easy connection to your PLC or PUM series modular controllers
  • V-SFT software: a single program for configuring all touch operator models in the range. Updates available free of charge from the Monitouch Fuji Electric website.
  • Tellus and V-Server remote monitoring and control software available



Rated voltage100-240 V AC
24 VDC (depending on model)
Permissible voltage-15 %, +10 %
±10％ (depending on model)
Insulation resistance500 V DC 10 Ω mini
Ambient temperature0～50℃
Ambient humidity85% RH minimum (non-condensing)
Operating altitude2000 meters max
EnvironmentDo not expose to corrosive gases or conductive dust.
Storage temperature-10～60℃
Storage humidity85% RH minimum (non-condensing)
Level of contaminationLevel 2
GroundingGround resistance: less than 100 Ω, FG/SG separation
StructureFront protection: IP66 equivalent (if gasket used.), Rear cover: IP20, single unit, installation method: panel mounting
Dimensions382.8×312.8×80.8 mm
MaterialFront: Aluminium; Rear: Resin (depending on model)
