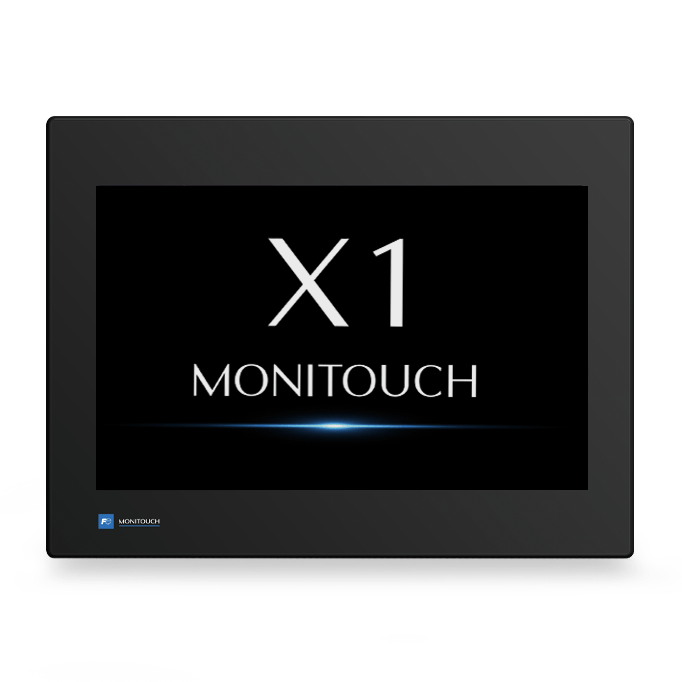

HMI - Monitouch X112 - 12.1 inches

Monitouch X1 human-machine interface

Fields of application

Use of the X1 Series optimizes industrial automation and enhances the performance of industrial robots (conveyor belts).
By installing the X1 Series at critical points on your equipment, you can increase the reliability of your pharmaceutical manufacturing processes.

Features

  • Integrated with IT systems: Microsoft Azura, Microsoft SQL Server, OPC UA, MQTT
  • Application support: Word, Excel, PDF, Internet
  • Visibility and user-friendliness
  • Inheritance of V-series screen assets
Catalogue number: X112
From 4468 €
Configure my product

Configure

Specifications

The X1 Series offers extensive automation and IT connectivity, as well as the flexibility required for your plant's digital transition.



ComplianceCE marking
UL/cL
KC
UKCA
Radio Law (depending on model)
Permissible voltage range24 VDC ± 10
Permissible momentary power failureWithin 1 ms
Power consumption (maximum rated value)41 W or less
Peak current24 A or less, 6 ms (ambient temperature at 25°C)
Resistance voltageExternal terminals DC to FG: 500 VAC for 1 minute
Insulation resistanceExternal terminals DC to FG: 500 VDC, 10 MΩ or more
Operating temperature0 °C to +45 °C
Storage temperature-10 °C to +60 °C
Operating humidity85% RH or less (non-condensing)
Storage humidity85% RH or less (non-condensing)
Altitude2000 m or less
EnvironmentNo corrosive gases, no excessive dust, no conductive dust
Mounting methodPanel mounting
WeightApprox. 3.2 kg
Dimensions320 × 241 × 66.7 mm
ColorBlack
MaterialBefore : PBT+GF30 resin
Rear: Sheet metal
