Programming software for electricity meters
Field of application
Programming software supplied with Fuji Electric 53U and L53U energy meters.
Features

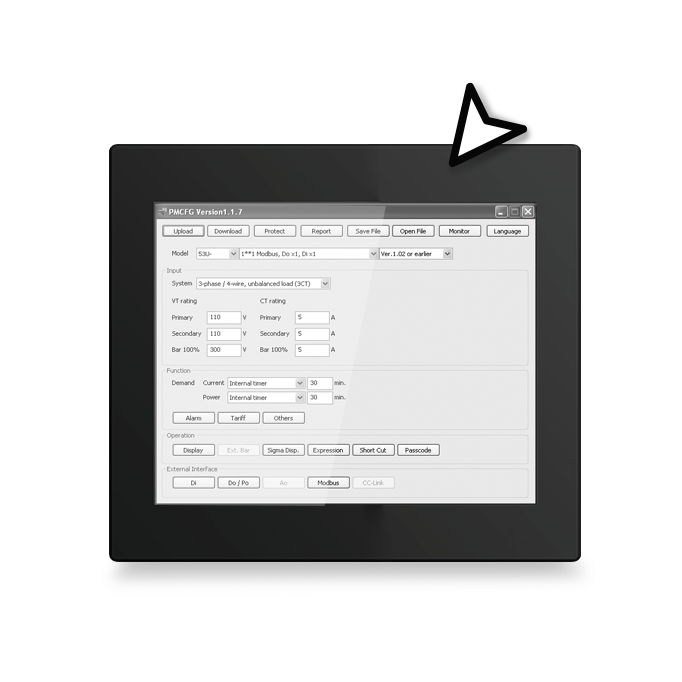

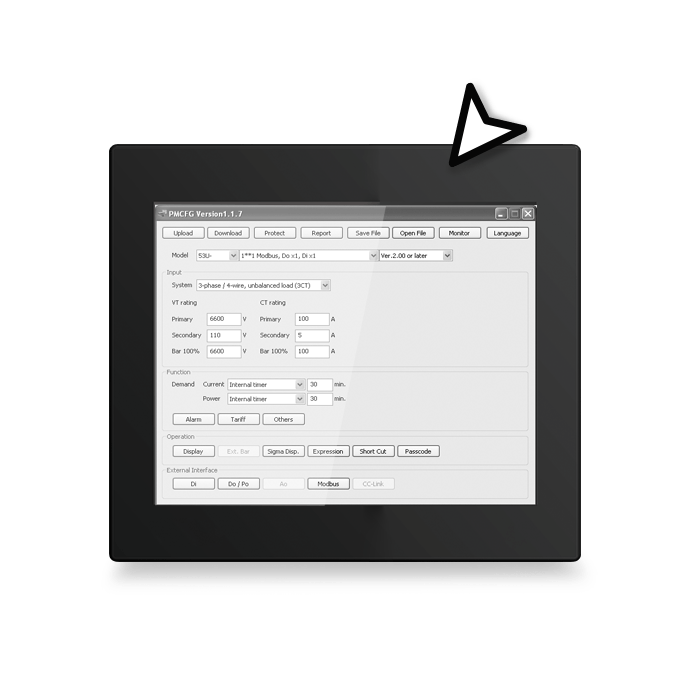

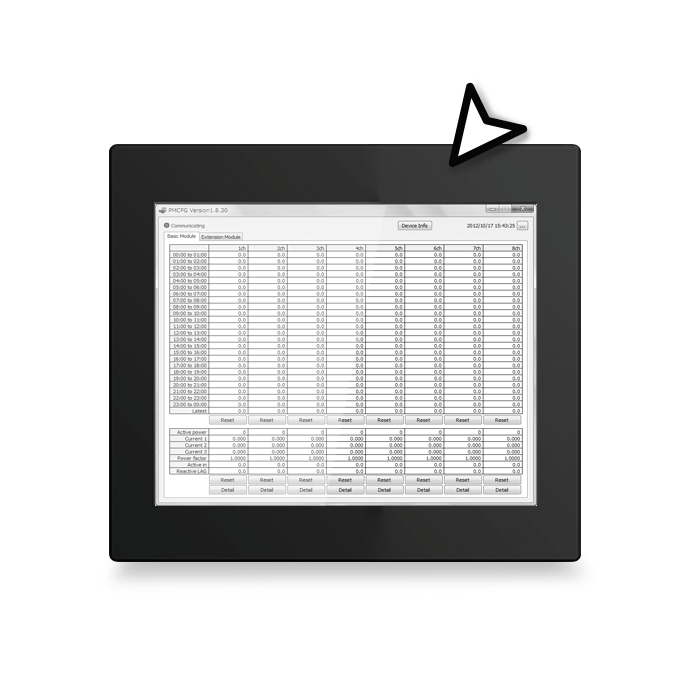

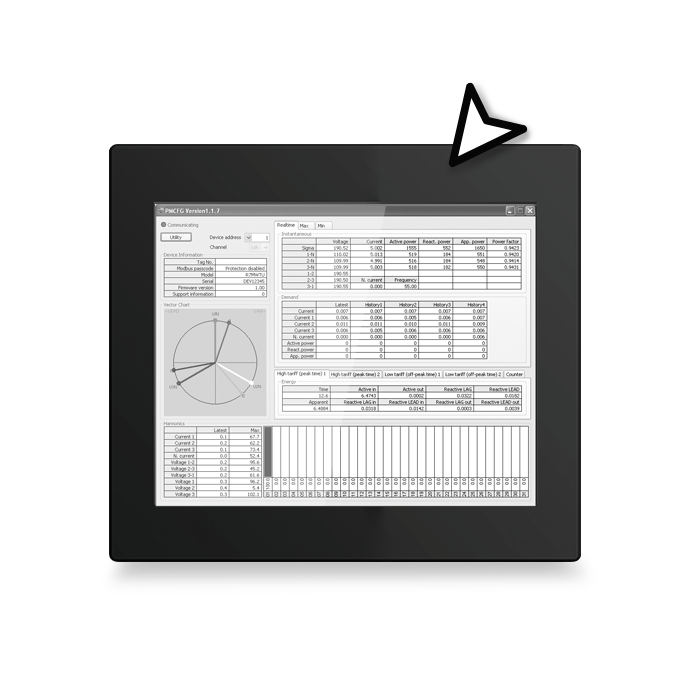

The electric energy meter programming software - PMCFG is designed for programming parameters on Fuji Electric 53U and L53U electric energy meters. It enables parameters to be edited and uploaded to devices, saved as files, and measured values to be monitored in real time. The software also offers advanced functions such as network loop testing and password protection of parameters.
| Compatible models | 53U, 54U, 54UL, 54UC, R7CWTU, R7MWTU, R7EWTU, R9MWTU, R9CWTU, R9EWTU, L53U, M5XWTU, M5XWT, M50XWTU, M50EXWTU |
| Software version | PMCFG Ver. 1.19 |
| Supported operating systems | Windows 10 (32-bit/64-bit), Windows 11 (64-bit) |
| Memory requirements | Depends on Windows operating system requirements |
| Processor requirements | Depends on Windows operating system requirements |
| Required communication ports | At least one COM port (COM1 to COM16) or LAN port |
| Main functions | Edit and download parameters, save parameters as files, monitor measured values in real time, test in network loop |
| Communication options | RS-232-C, RS-485, Ethernet, Infrared |
| Loop testing | Available for models R7xWTU, R9xWTU, M5XWTU, M5XWT, M50XWTU, M50EXWTU |
| Parameter protection | Password protection (4 to 9 digits) |
To download the programming software for electrical energy meters - PMCFG, click on the following link: https: //www.fujielectric.fr/telechargements/logiciel-parametrages-du-compteur-energie-electrique-53u/
