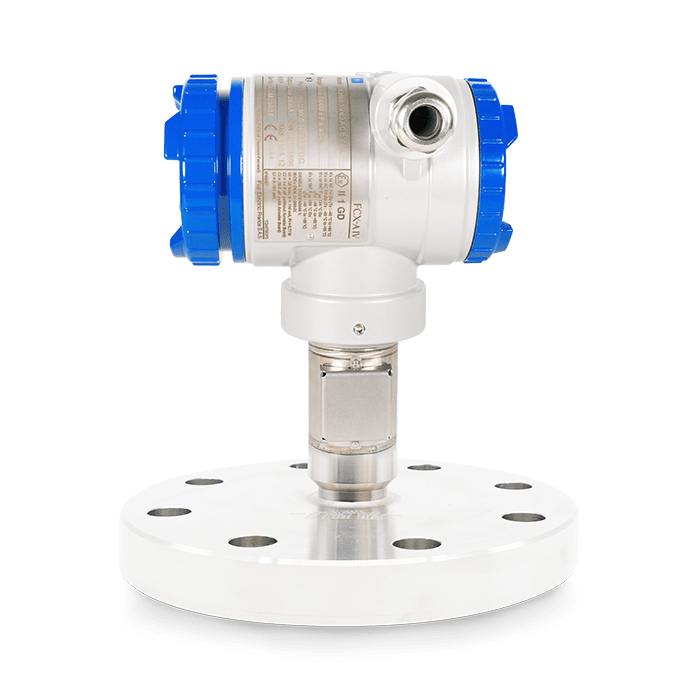

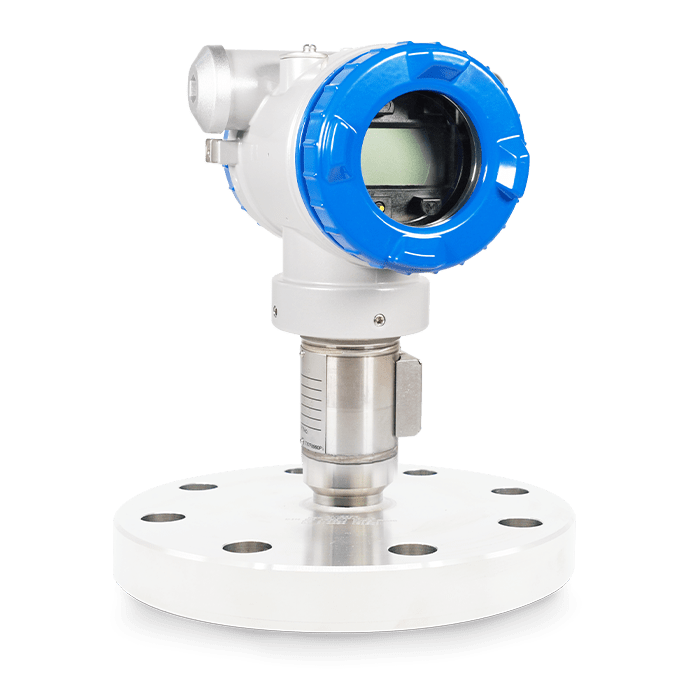

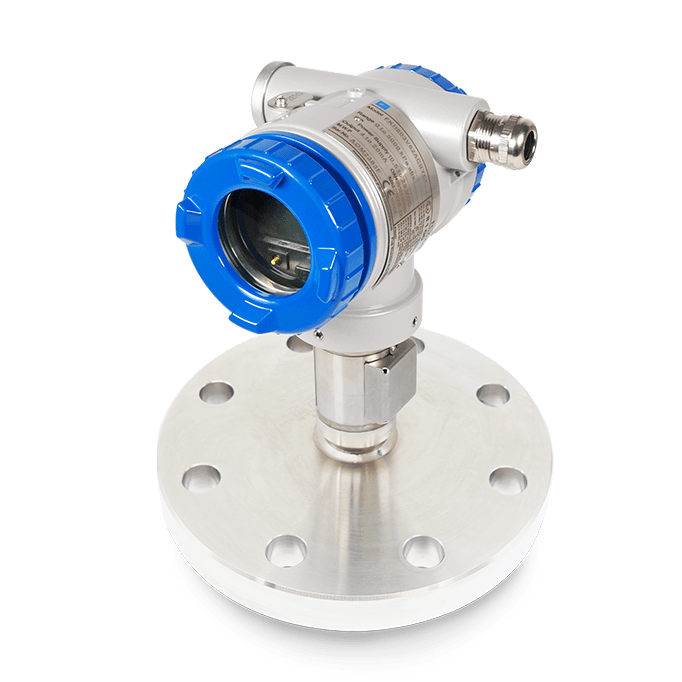

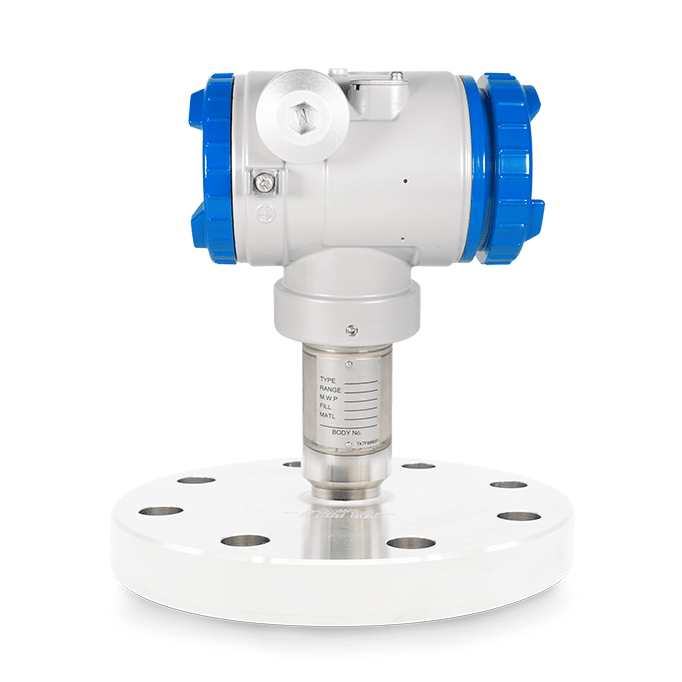

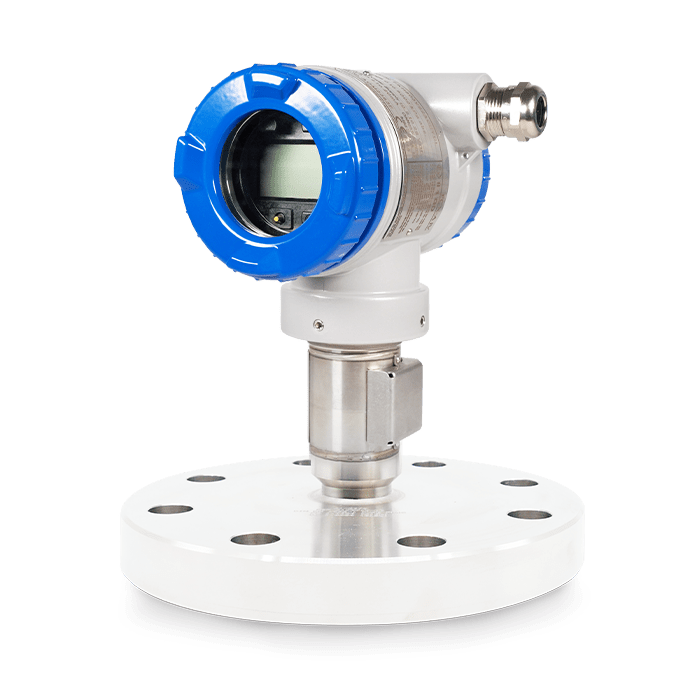

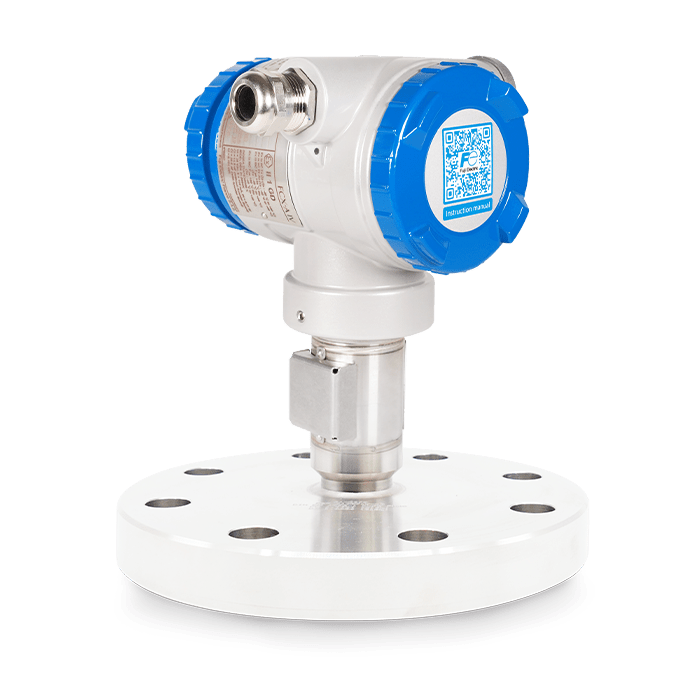

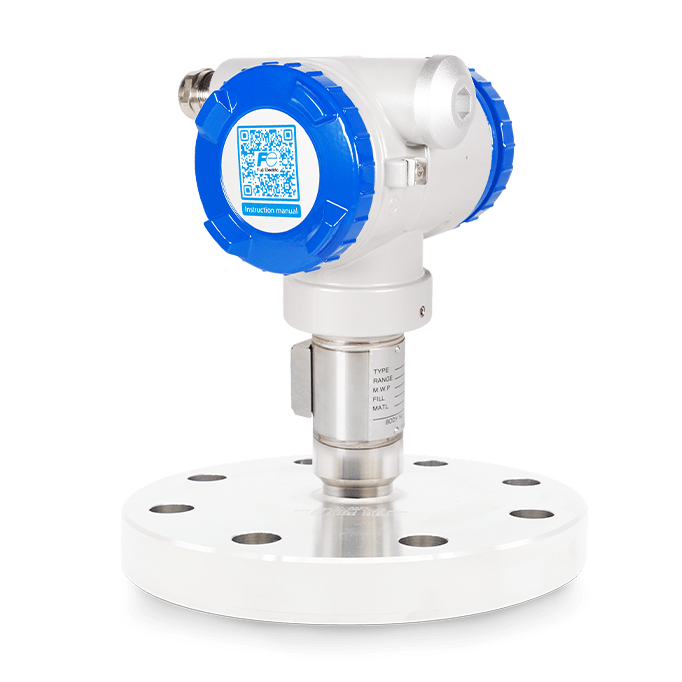

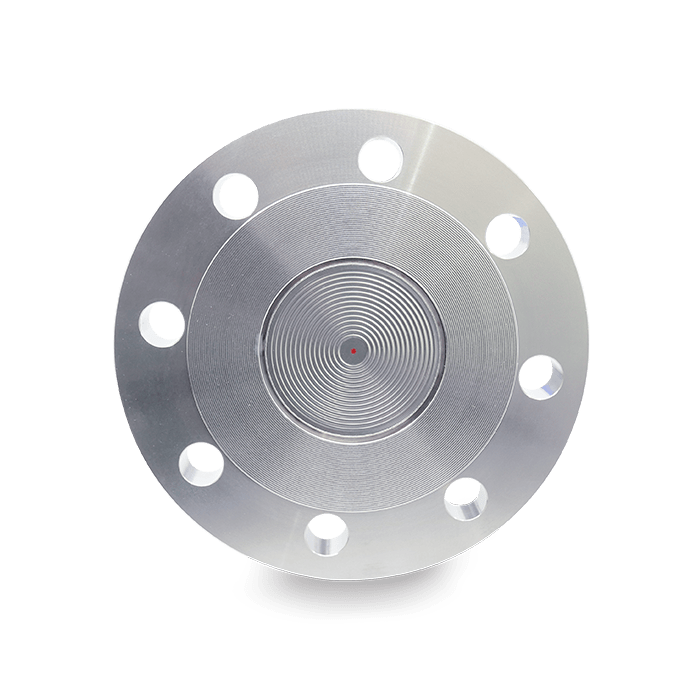

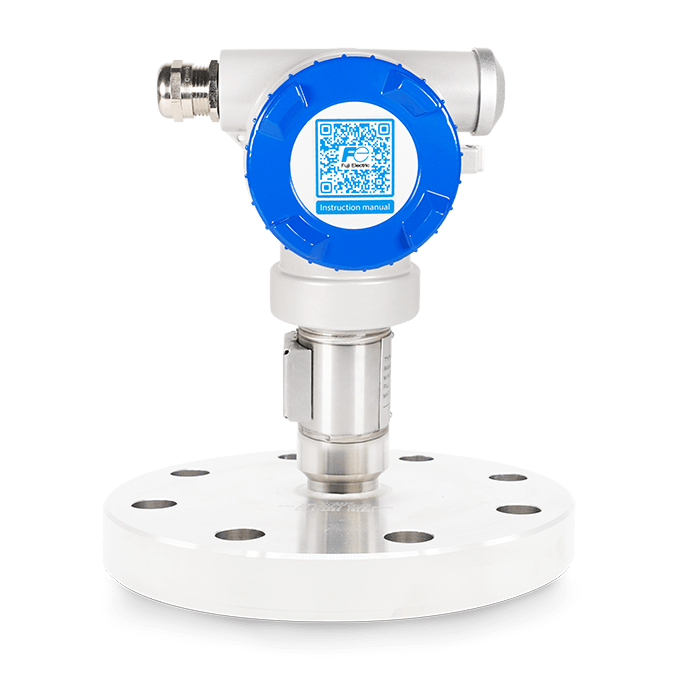

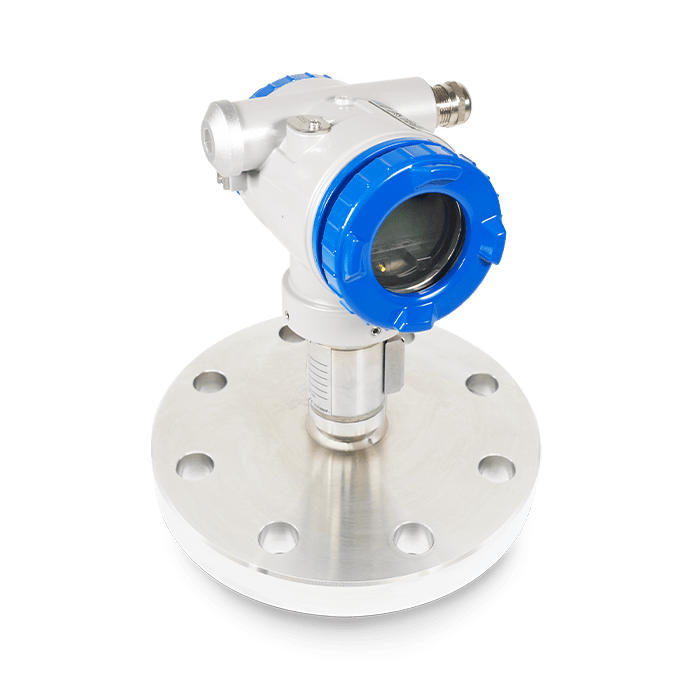

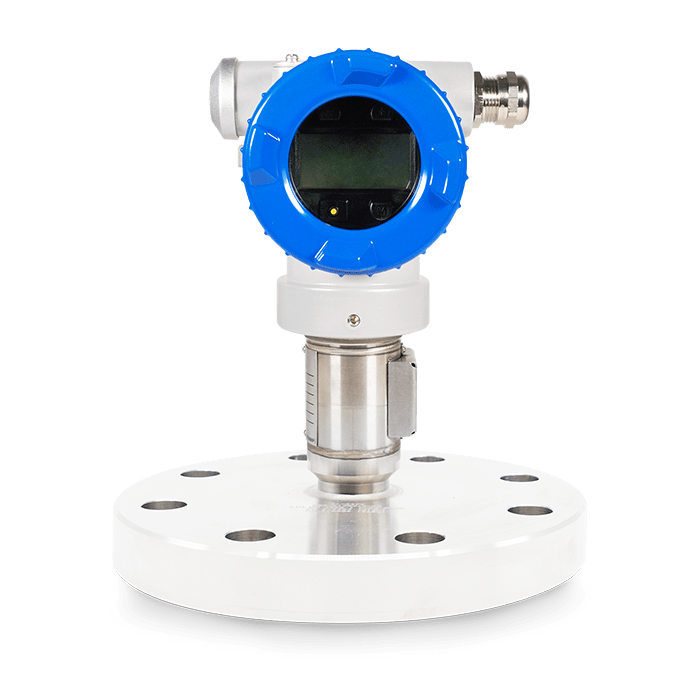

Absolute diaphragm seal pressure transmitter - FKH F

Pressure measurement with diaphragm seals

Fields of application

Diaphragm seal pressure transmitter can be used for a wide range of applications: liquid flow measurement, gas flow measurement, steam flow measurement, fluid level measurement in a tank, fluid density measurement or pressure measurement at low or high temperatures.

Features

  • Precise measurement even at low pressures
  • Accessible sensor installation and reading
  • Diaphragm seals can be mounted on all transmitter types
  • A wide range of possible applications
Reference: FKH F
From 2067 €
Configure my product

Configure

Specifications



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]130
500
3000
10000
Weight per kg (without indicator)1.7 - 17
Accuracy± 0.2% of the measurement range set as standard.
Materials in contact with the processStainless steel 316 L, Stainless steel 316 L + Gilding
Case materialsLow-copper aluminum alloy with polyester coating (standard), or 316 stainless steel (optional).
Membrane materialsStainless steel 316 L
Hastelloy-C
Stability±0.2% of full scale for 10 years
Elevation / DeletionFrom -100 to +100% of maximum scale
Scale setting range1 to 1/100 of maximum scale
Measurement cycle40 ms
Communication protocolHART™ 7 communication protocol
Process temperatureFrom +40° to +120°C (versions for higher temperatures are available)
Ambient temperatureFrom -40° to +85 °C
Power supply10.5 to 45 V DC
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable between 0.04 and 32 secs
Zero and span adjustmentVia external sensor screw, local three-button indicator or HART™ protocol
Electrical connectionsM20x1.5" / 1/2 - 14 NPT / Pg13.5
OptionsDigital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
