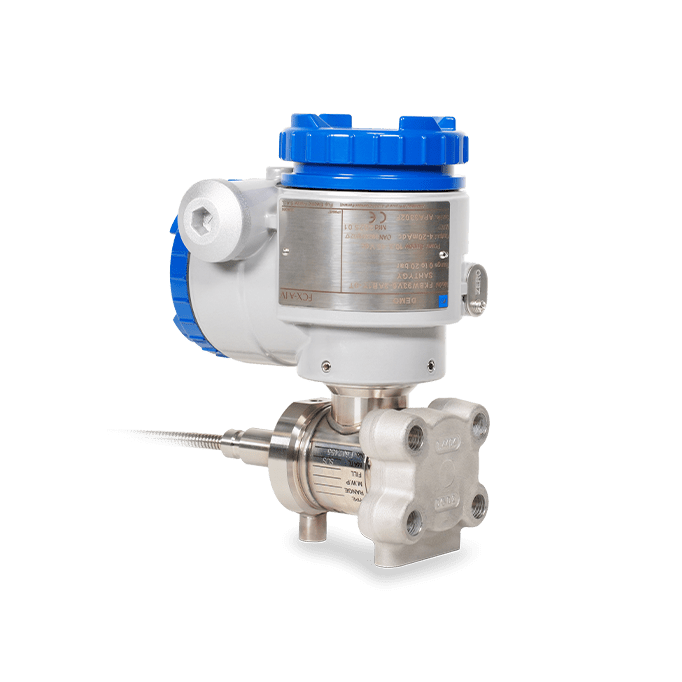

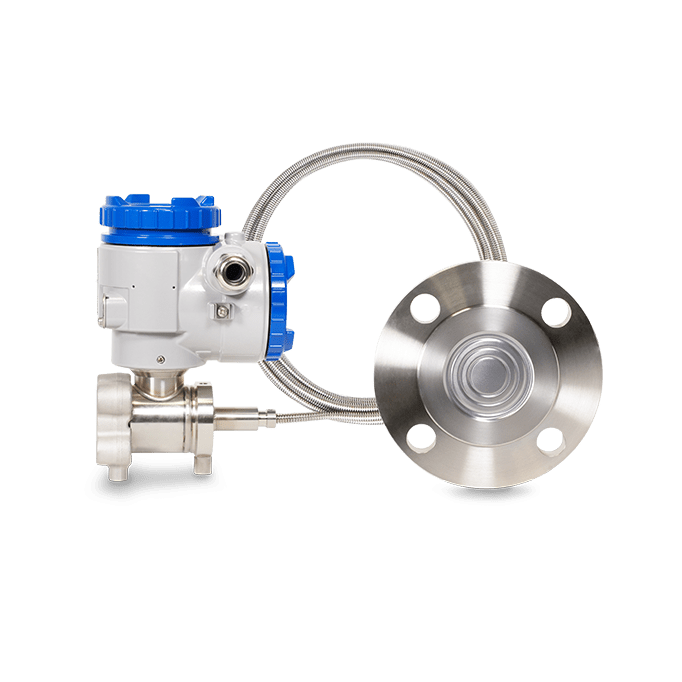

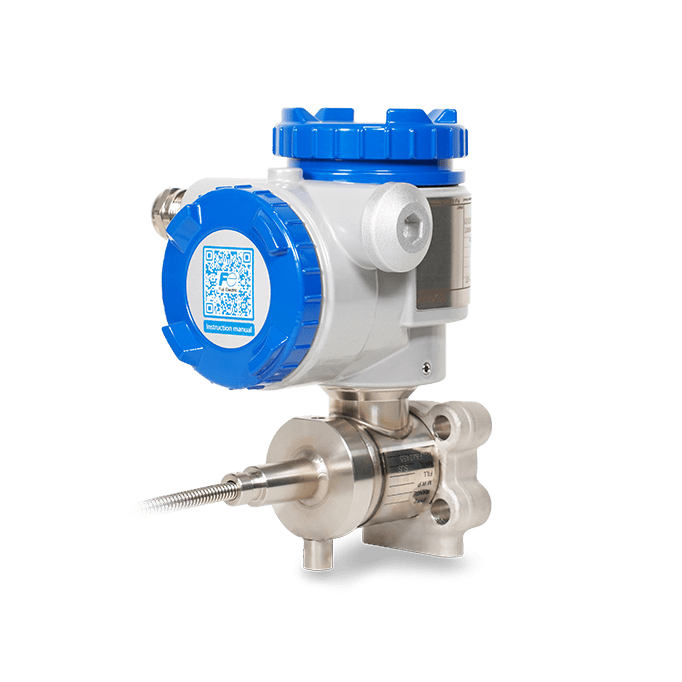

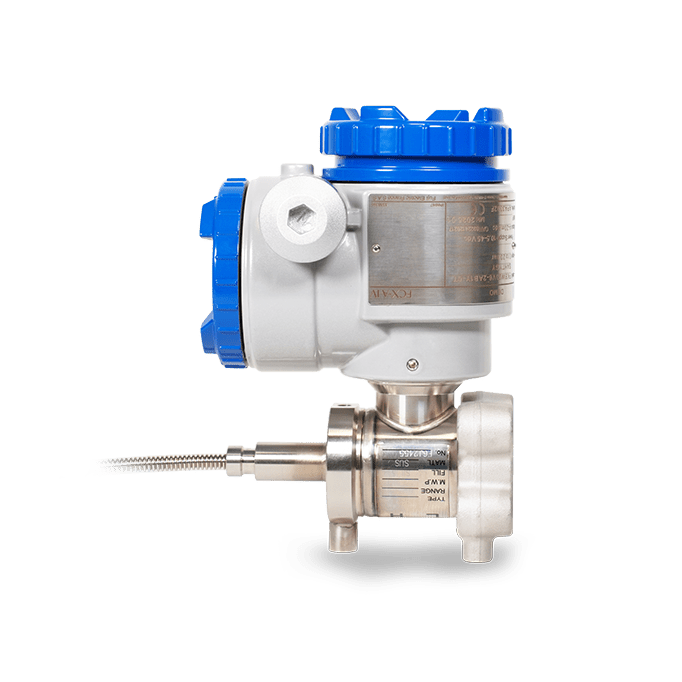

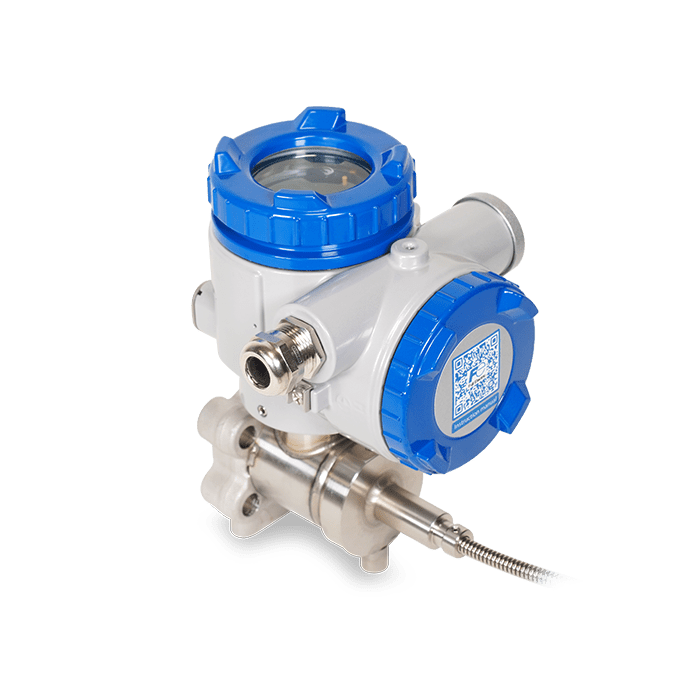

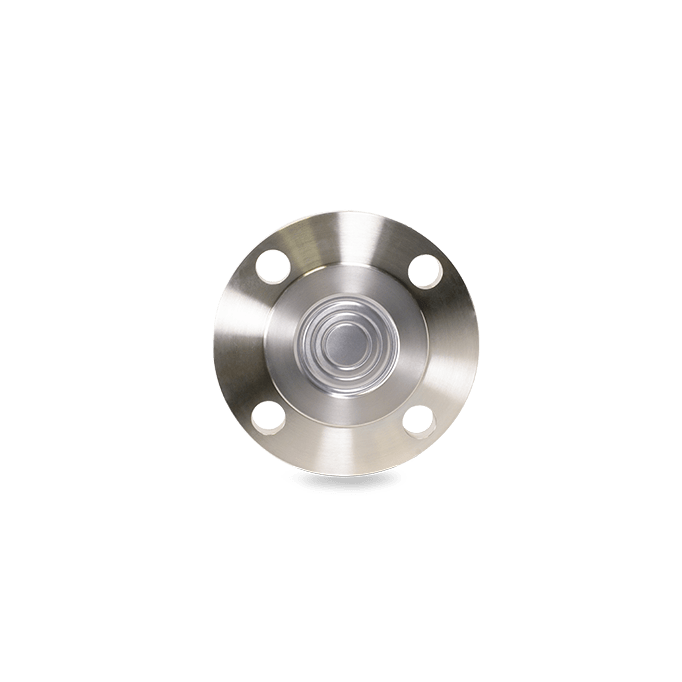

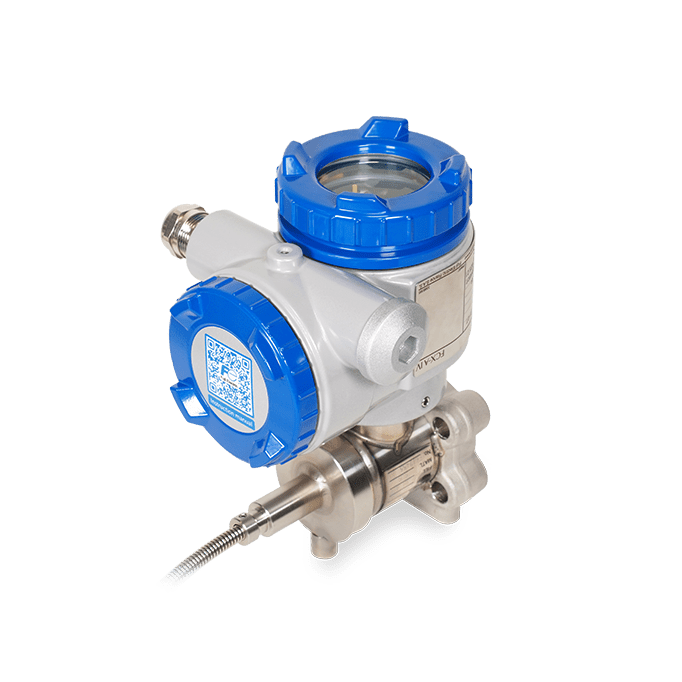

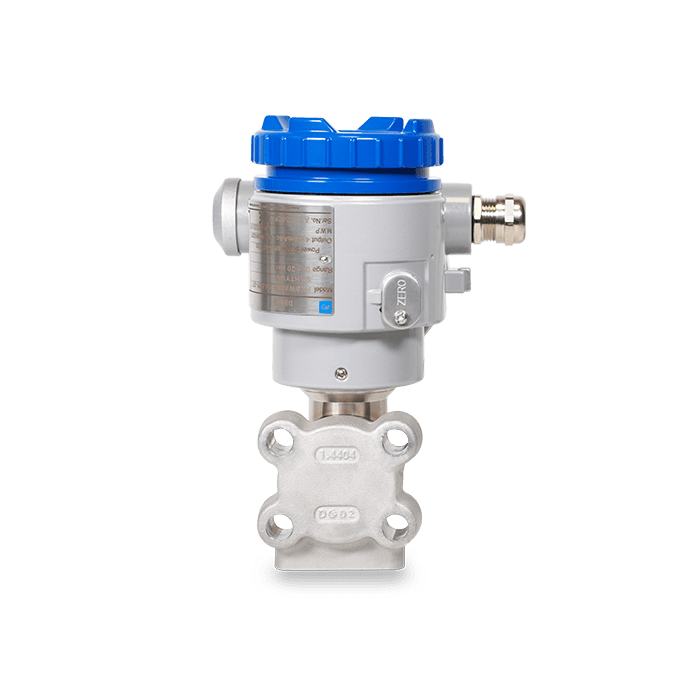

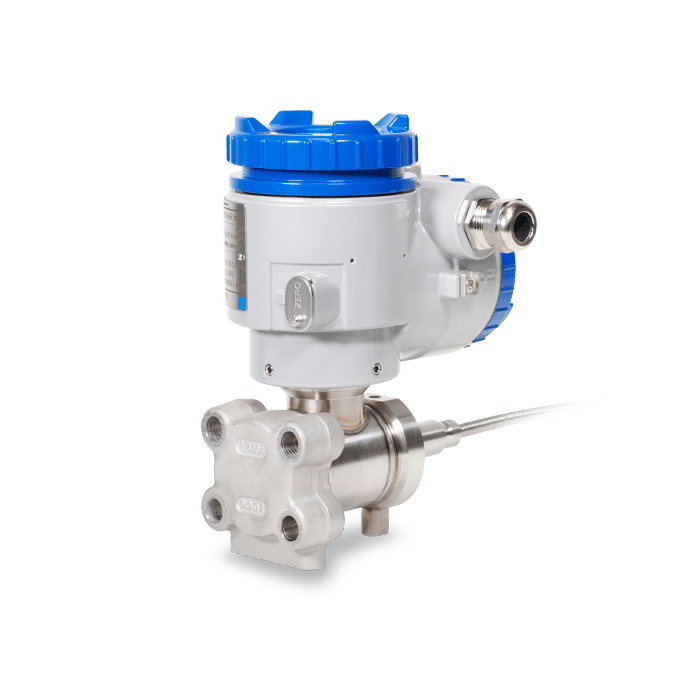

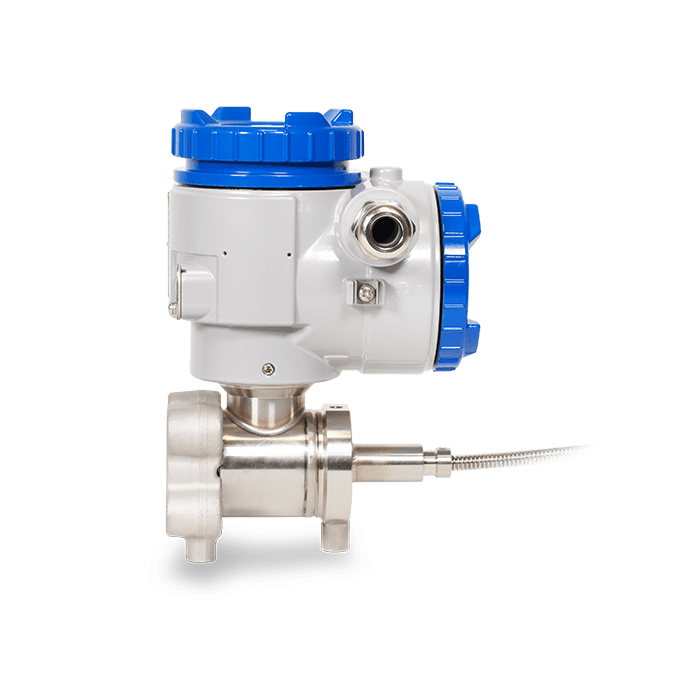

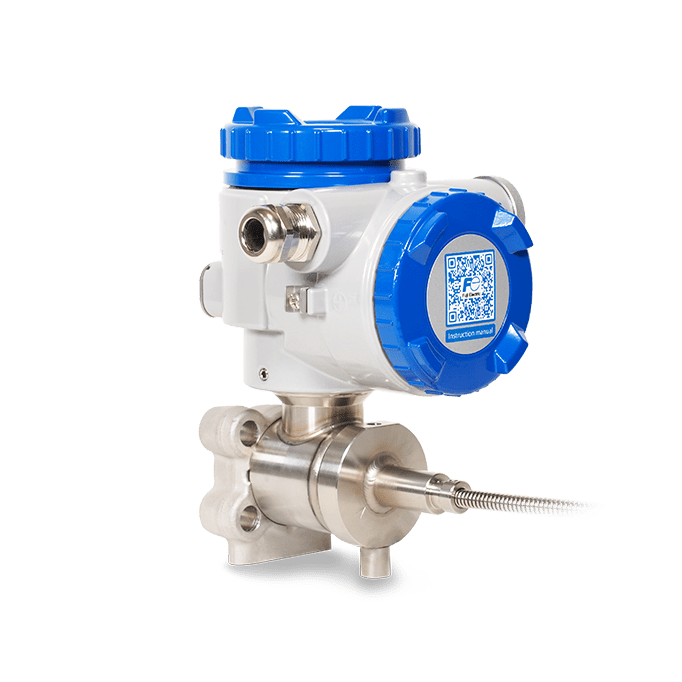

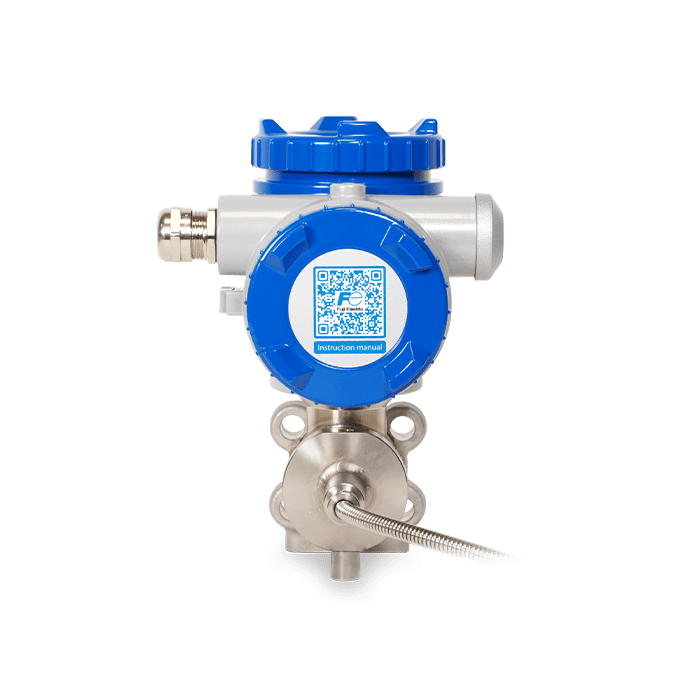

Diaphragm seal gauge pressure transmitter - FKB

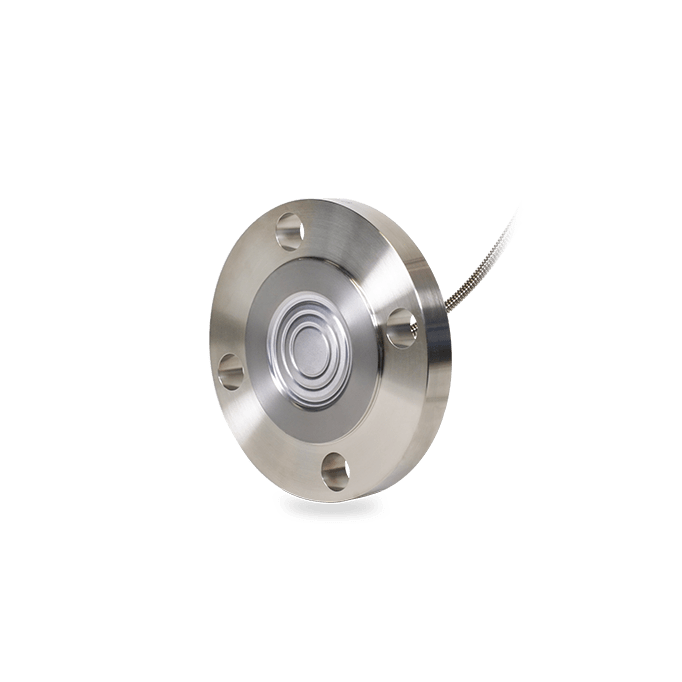

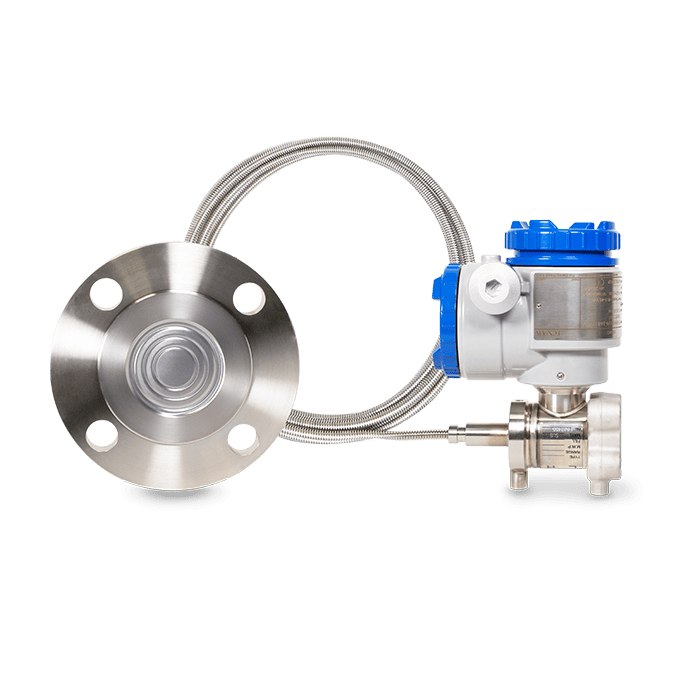

Pressure measurement with diaphragm seals

Fields of application

Diaphragm seal pressure transmitter can be used for a wide range of applications: liquid flow measurement, gas flow measurement, steam flow measurement, fluid level measurement in a tank, fluid density measurement or pressure measurement at low or high temperatures.

Features

  • Precise measurement even at low pressures
  • Accessible sensor installation and reading
  • Diaphragm seals can be mounted on all transmitter types
  • A wide range of possible applications
Reference : FKB
From 2437 €
Configure my product

Configure

Specifications

The FKB, FKD and FKM pressure transmitters in the FCX-AIV family accurately measure gauge pressure, differential and absolute pressure respectively, and convert it into a directly proportional 4-20 mA output signal. At the heart of the measuring element is a micro-capacitive silicon transducer highly proven in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]130
500
3000
10000
20000
Weight per kg (without indicator)4-18
Accuracy± 0,065 %
Materials in contact with the processInoc 316L, Hastelloy-C, Monel, Tantalum, Titanium, Zirconium
Case materialsLow-copper aluminum alloy
with polyester coating or 316L stainless steel
Membrane materialsStainless steel 316L
Hastelloy-C
Monel
Titanium
Zirconium
Stainless steel 316L and Gilding
Stability±0.2% of full scale for 10 years
Elevation / SuppressionFrom -100 to +100% of maximum scale
Scale setting range1 to 1/100 of maximum scale
Measurement cycle40 ms
Communication protocolHART™ 7 communication protocol
Process temperatureFrom +40° to +120°C (versions for higher temperatures are available)
Ambient temperatureFrom -40° to +85°C
Power supply10.5 to 45V DC
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable between 0.04 and 32 secs
Zero and span adjustmentVia external sensor screw, local three-button indicator or HART™ protocol
Electrical connectionsM20x1.5" / 1/2 - 14 NPT / Pg13.5
OptionsDigital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
