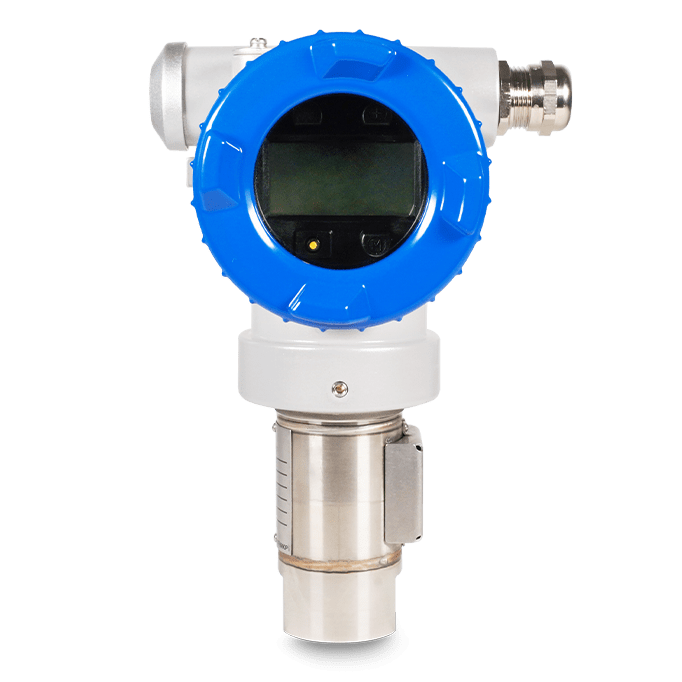

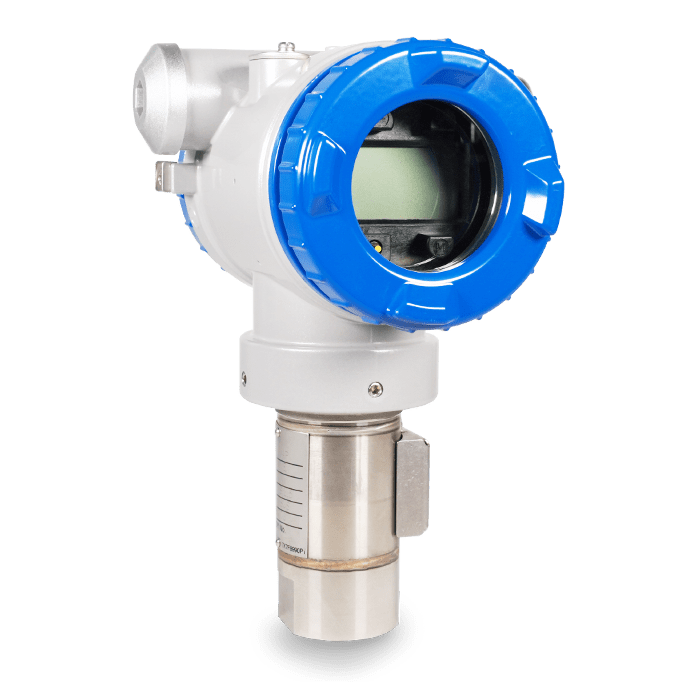

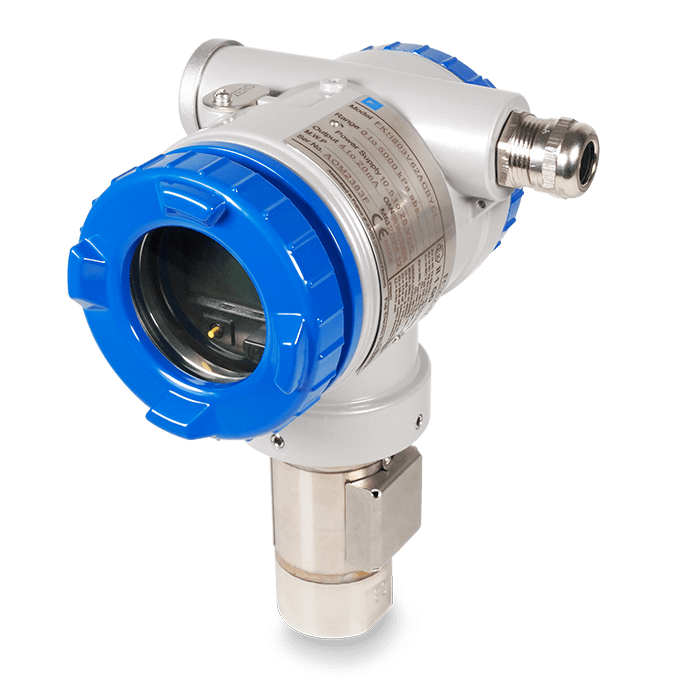

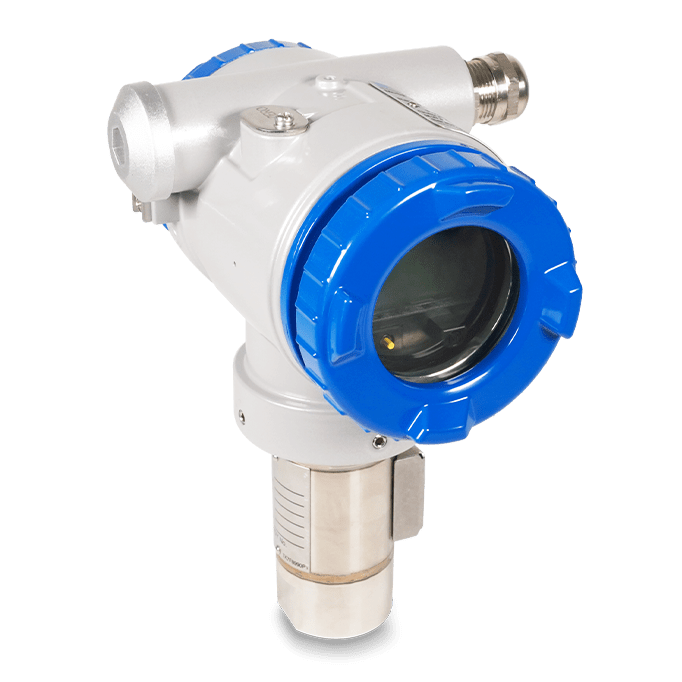

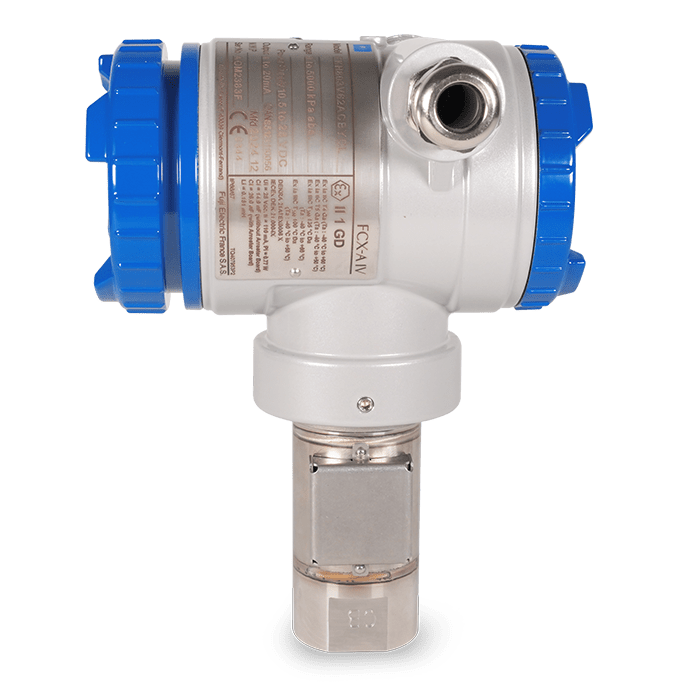

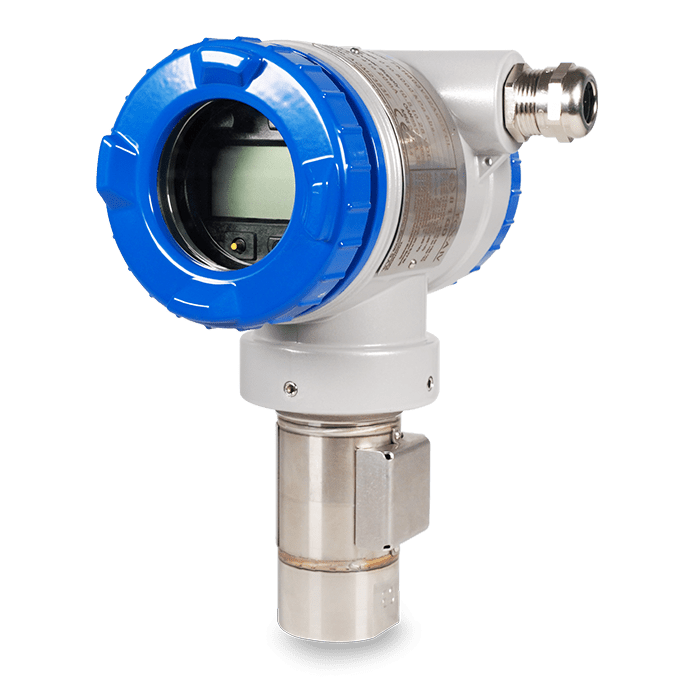

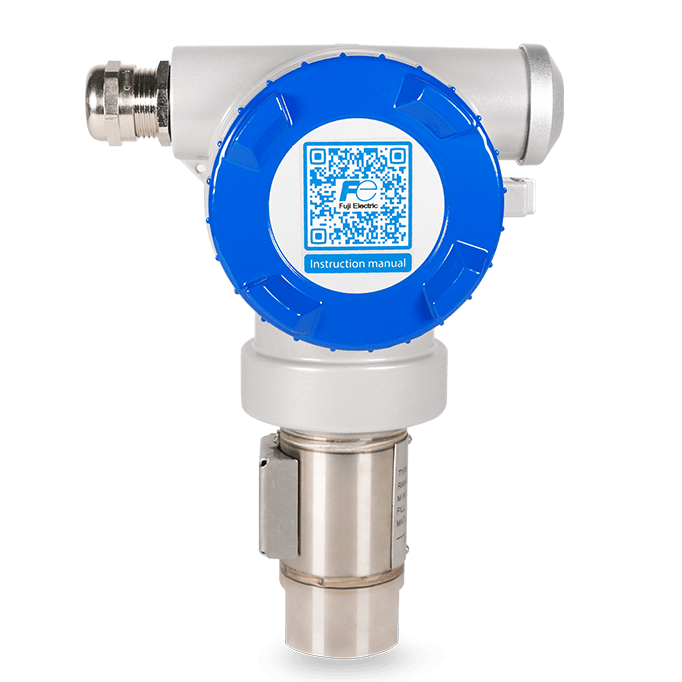

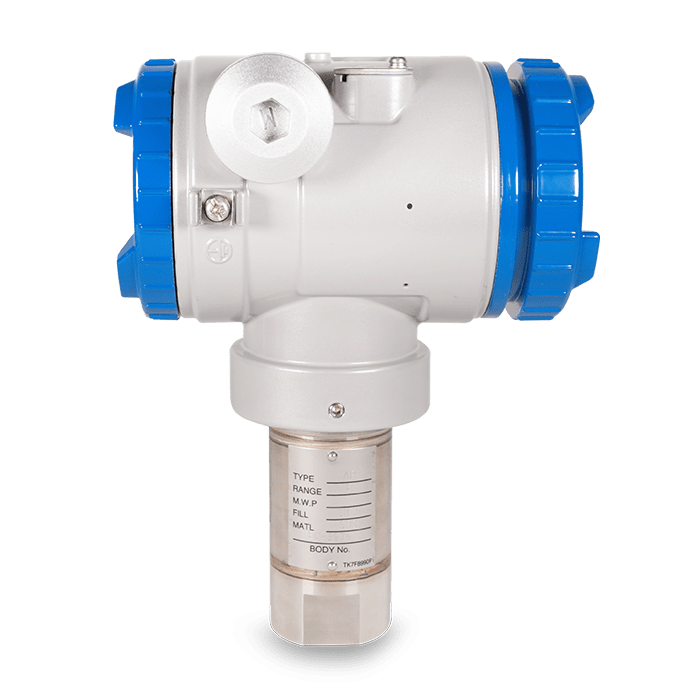

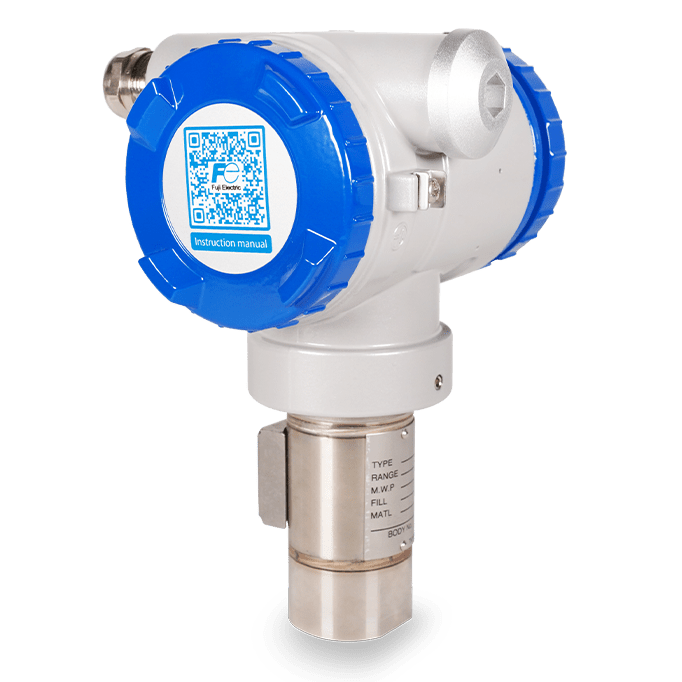

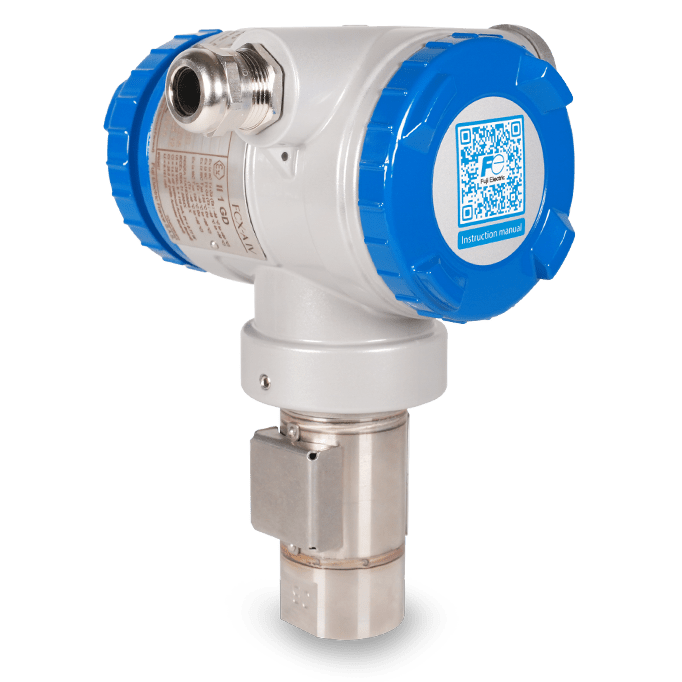

Absolute pressure transmitter - FKH

Absolute pressure measurement

Fields of application

The direct mounting absolute pressure transmitter FKH allows precise measurement of any pressurized gas or fluid, while using a fixed vacuum pressure as a reference.

Features

  • Barometric pressure measurement
  • Not affected by atmospheric pressure
  • High repeatability and accuracy
  • Long-term stability
Catalogue number: FKH
From 1184 €
Configure my product

Configure

Specifications

FKH direct-mounting pressure transmitters in the FCX-AIV family accurately measure absolute pressure and convert it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a micro-capacitive silicon transducer that has proven its worth in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]130
500
3000
Weight per kg (without indicator)1,7
Accuracy± 0.2% of the measurement range set as standard.
Materials in contact with the processStainless steel 316L, Stainless steel 316L + Gilding
Case materialsLow-copper aluminum alloy with polyester coating
polyester coating or 316L stainless steel.
Membrane materialsStainless steel 316L
Hastelloy-C
Stability±0.2% of maximum scale for 10 years
(if digit 6 codes "3", "4")
Elevation / DeletionFrom -100 to +100% of maximum scale
Scale setting range1 to 1/100 of maximum scale
Measurement cycle40 ms
Communication protocolHART™ 7 communication protocol
Process temperatureFrom +40° to +120°C (versions for higher temperatures are available)
Ambient temperatureFrom -40° to +85°C
Power supply10.5 to 45V DC
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable between 0.04 and 32 secs
Zero and span adjustmentVia external sensor screw, local three-button indicator or HART™ protocol
Electrical connectionsM20x1.5" / 1/2 - 14 NPT / Pg13.5
OptionsDigital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
