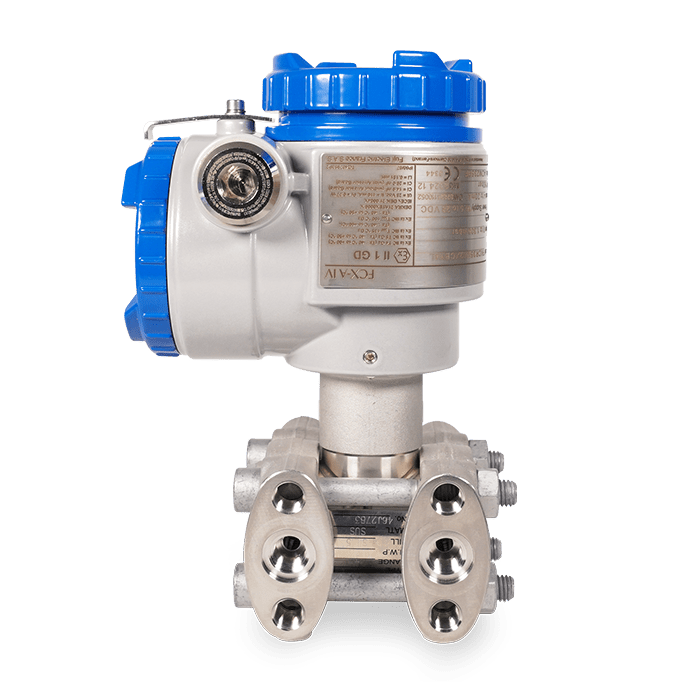

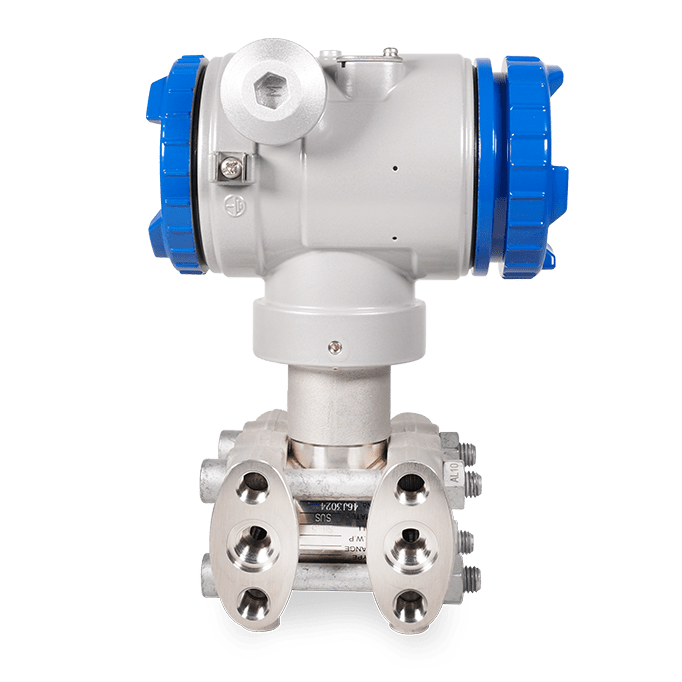

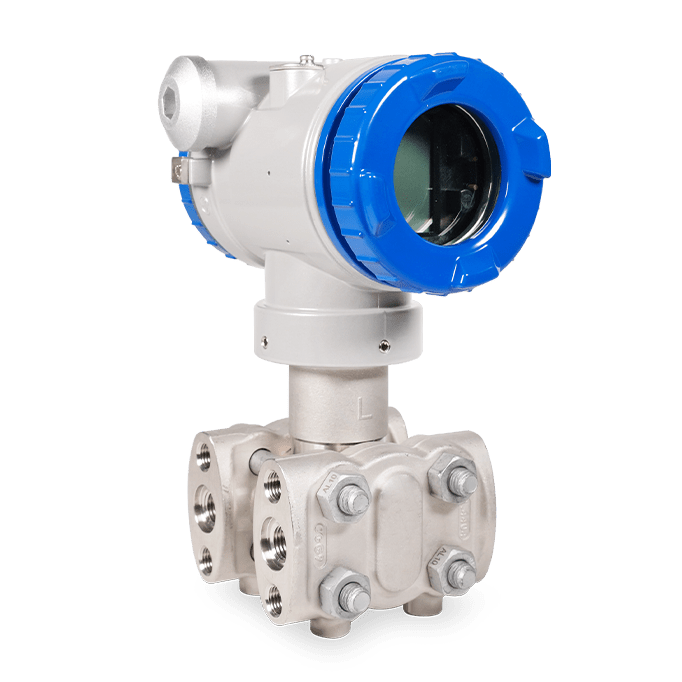

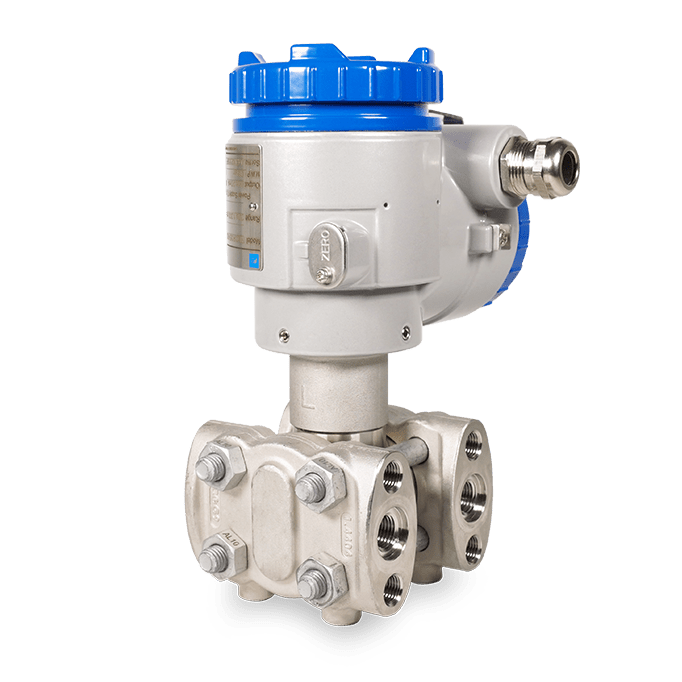

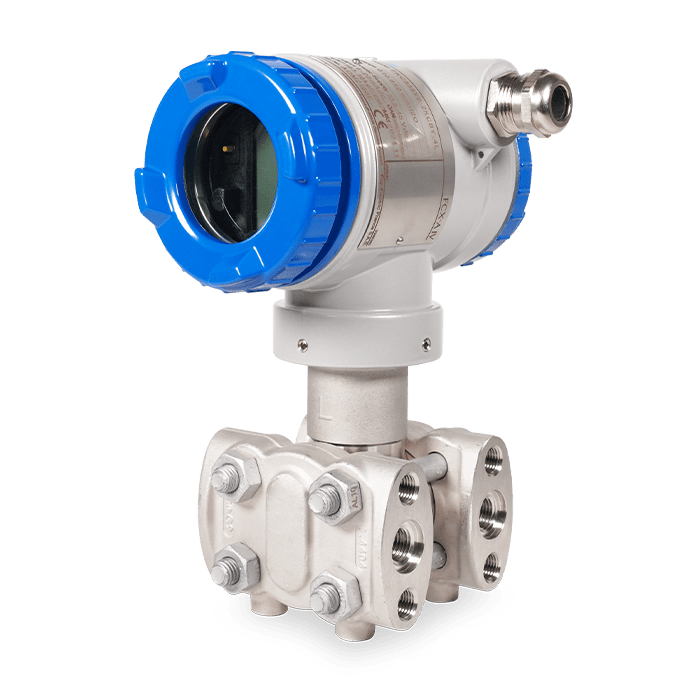

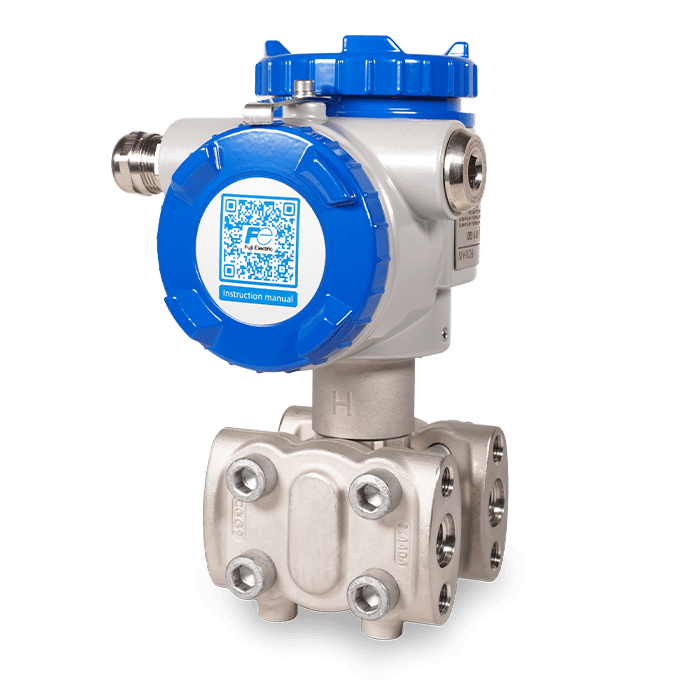

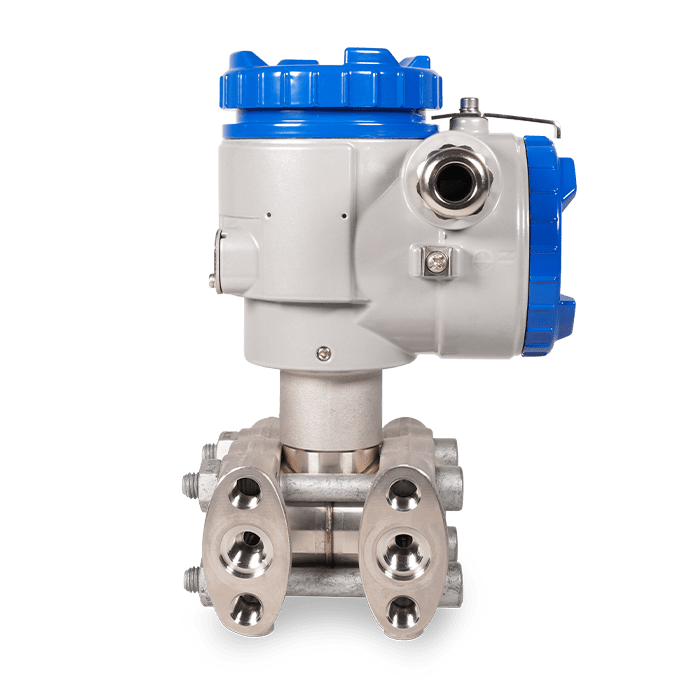

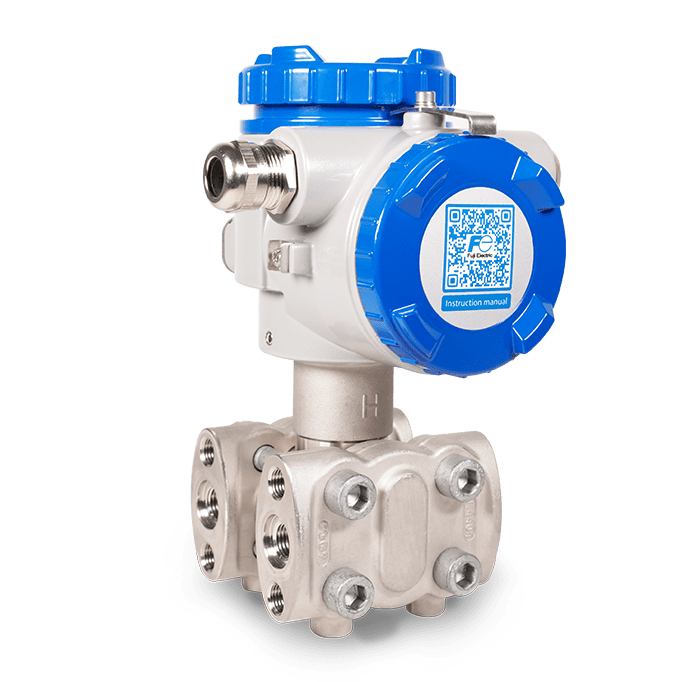

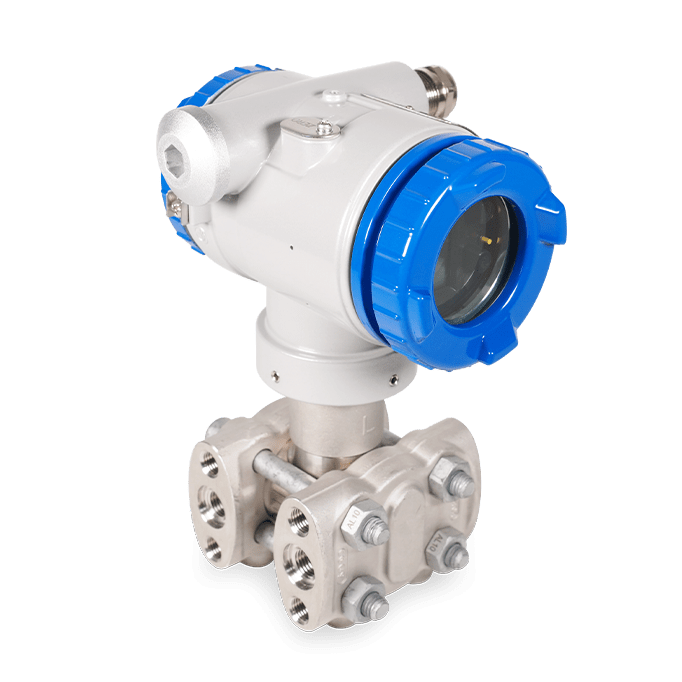

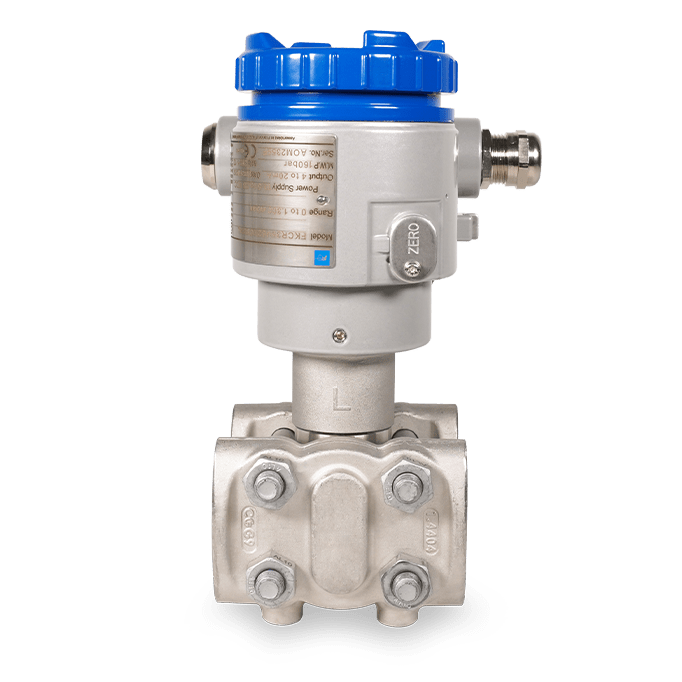

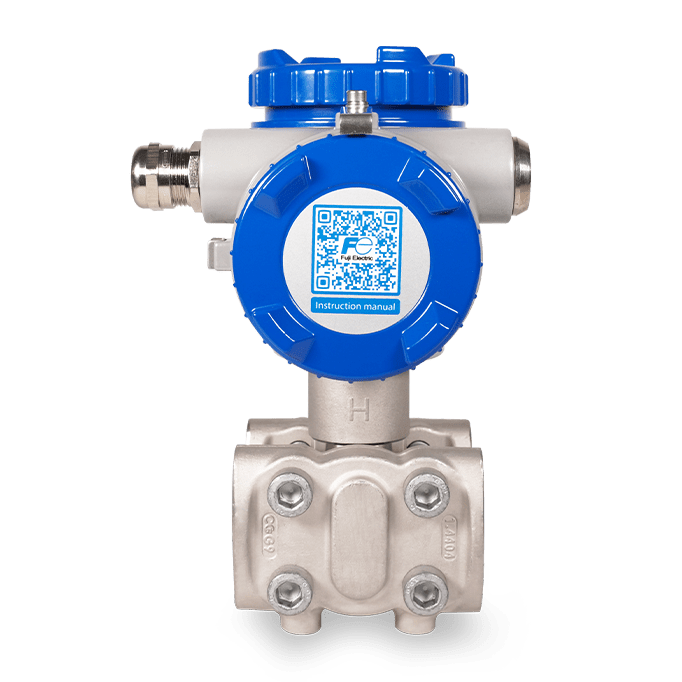

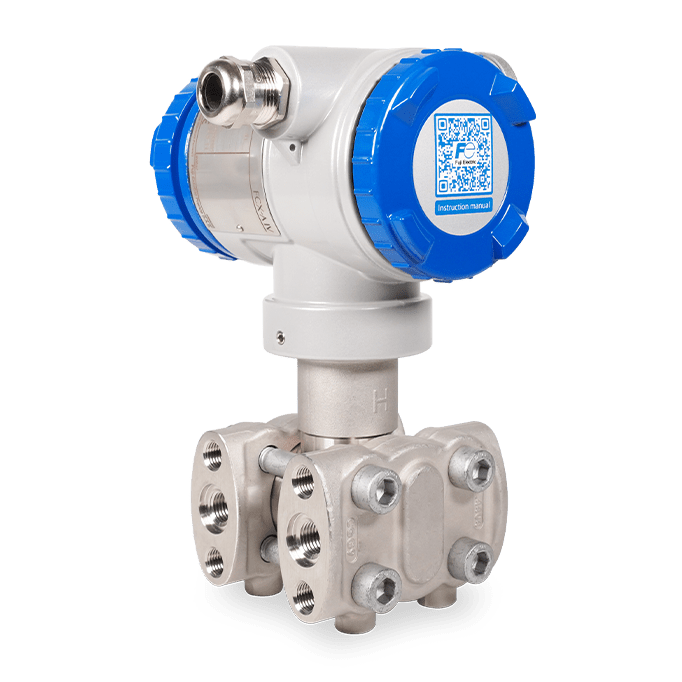

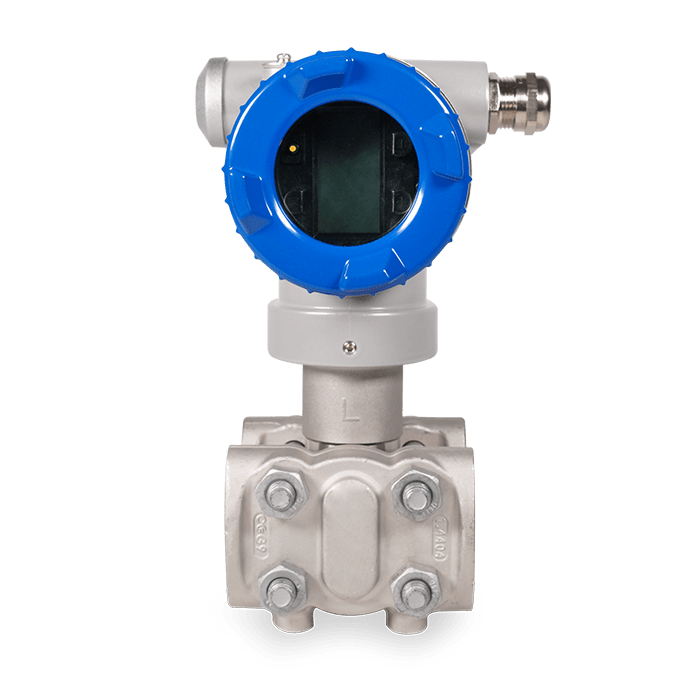

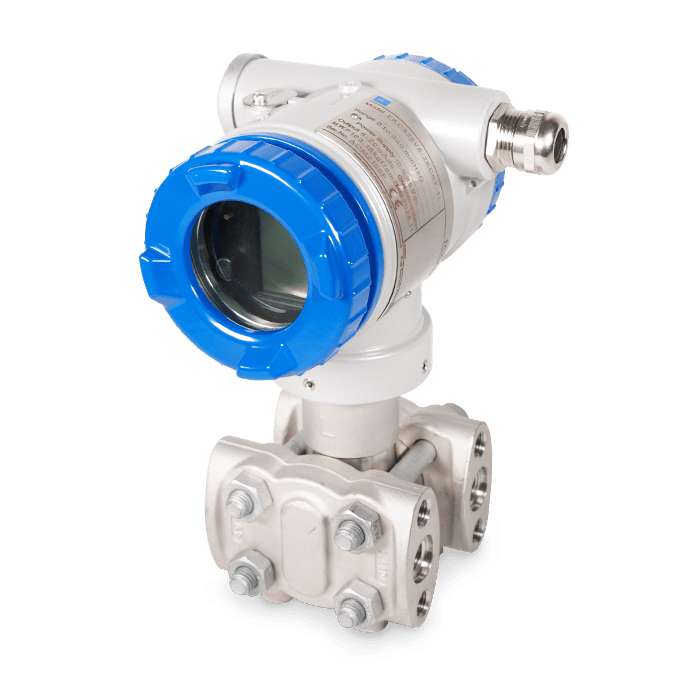

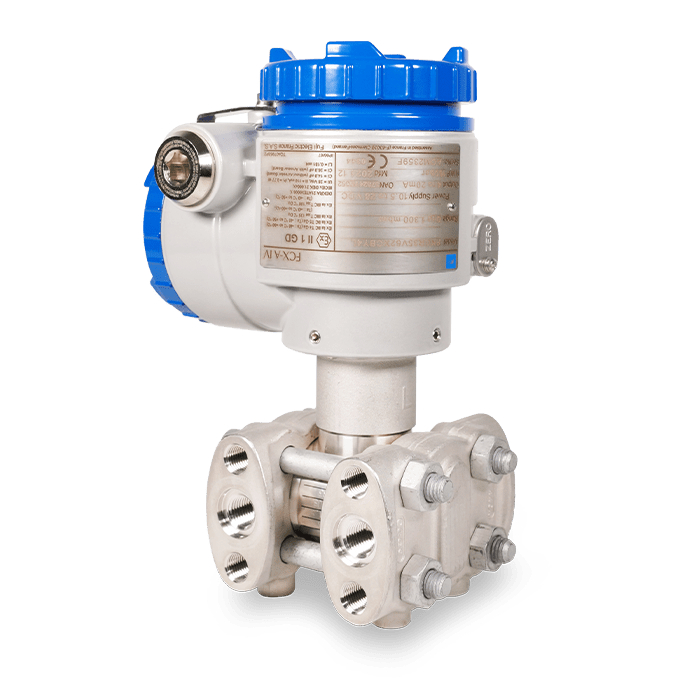

Pressure transmitter differential for hydrogen - FKC with hydroseal membrane

Differential pressure measurement

Fields of application

The pressure transmitter differential - FKC with hydroseal membrane is used for optimizing pressure gradients for hydrogen electrolyzer efficiency, precise pressure monitoring for safety in biomass thermolysis, fine pressure regulation in steam reforming reactors, managing membrane integrity in fuel cells, monitoring pressure variations to maximize coal gasification efficiency, rigorously controlling overpressure during hydrogen transport, ensuring pressure constancy for pump reliability in hydrogen distribution stations.

Features

Durable, stable design
Precise, reliable measurement
Minimal influence of external environment
Wide measuring range

Reference: FKC-HYDROSEAL Please contact us

Accessories
Specifications
Documentations
Technologies

Accessories

In stock
5-valves manifold for differential pressure transmitter
ref : W7
From
464,00 € Request a quote
In stock
ATEX cable glands

From
11,00 € Request a quote
Please contact us
Oval flanges
ref : 651B051-01 Request a quote

Specifications

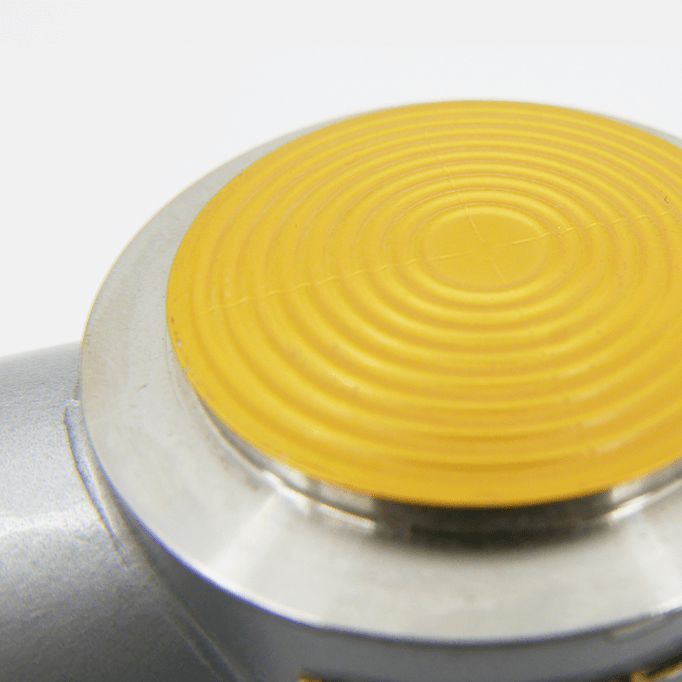

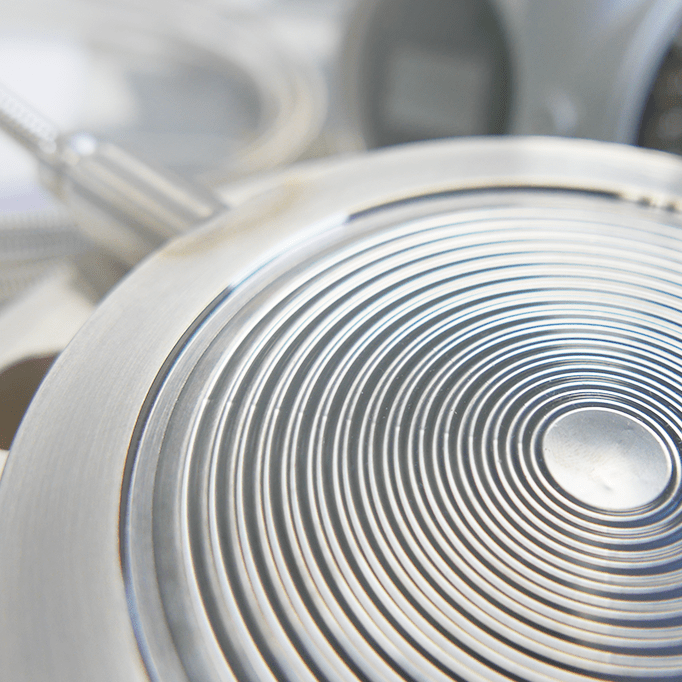

Fuji Electric's pressure transmitter differential FKC with hydroseal membrane, with its sensor technology for hydrogen, uses a double-coated gold and ceramic membrane to effectively block hydrogen permeation, guaranteeing increased accuracy and durability. Designed for pressures up to 42 MPa and temperatures between -40°C and +85°C, this system is ideal for critical applications such as fuel cells and gas monitoring in a variety of sectors, including the automotive and chemical industries. The transmitter's robust design ensures reliable performance even under high pressure, enhanced by features such as HART protocol for easy configuration.

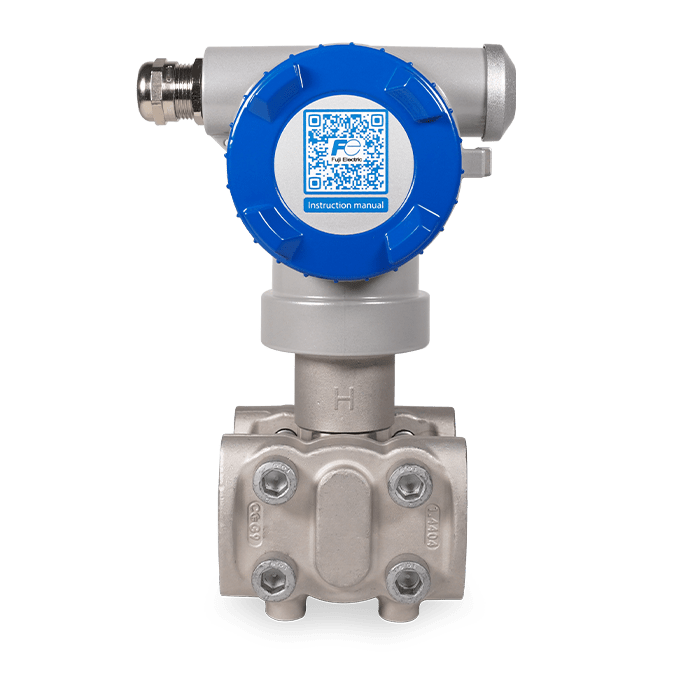

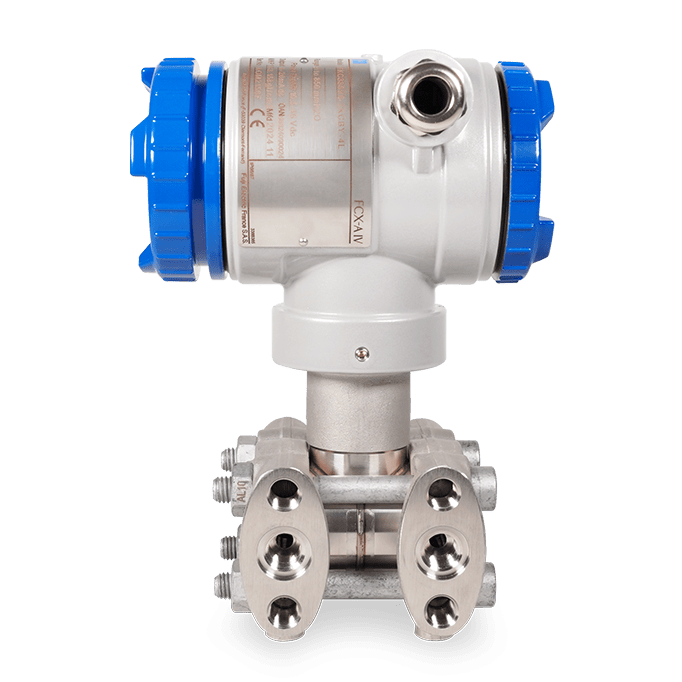

Limping	L- or T-shaped housing
Measuring ranges (kPa) [e.max.]	32 130
Weight per kg (without indicator)	3,6
Accuracy	±0.15%
Materials in contact with the process	Stainless steel 316, Stainless steel 316 L
Case materials	Standard: low-copper aluminum alloy with polyurethane epoxy coating (2 layers). Option: 316 stainless steel
Membrane materials	Stainless steel 316
Stability	±0.15% of maximum scale for 10 years
Elevation / Deletion	Equal to the upper limit of static pressure.
Process temperature	-40 to +120 °C for silicone sensor filling -20 to +80 °C for fluorinated oil sensor filling
Ambient temperature	from -40 to +85 °C -20 to +80 °C for LCD indicators - 40 to +60 °C for shutdown option -10 to +60 °C for fluorinated oil-filled sensors
Power supply	10.5 V to 45 V DC
Output signal / Load resistance	4 to 20 mA
Damping	Configuration between 0.06 and 32 seconds
Zero and span adjustment	Via external sensor screw, local three-button indicator or HART™ protocol
Electrical connections	G1/2, 1/2-14 NPT, Pg13.5 or M20 × 1.5, depending on application datasheet
Options	Indicator, local configurator with LCD display, integrated lightning arrester, oxygen service, chlorine service, degreasing, datasheet NACE, vacuum service, optional nameplate, cell lining
