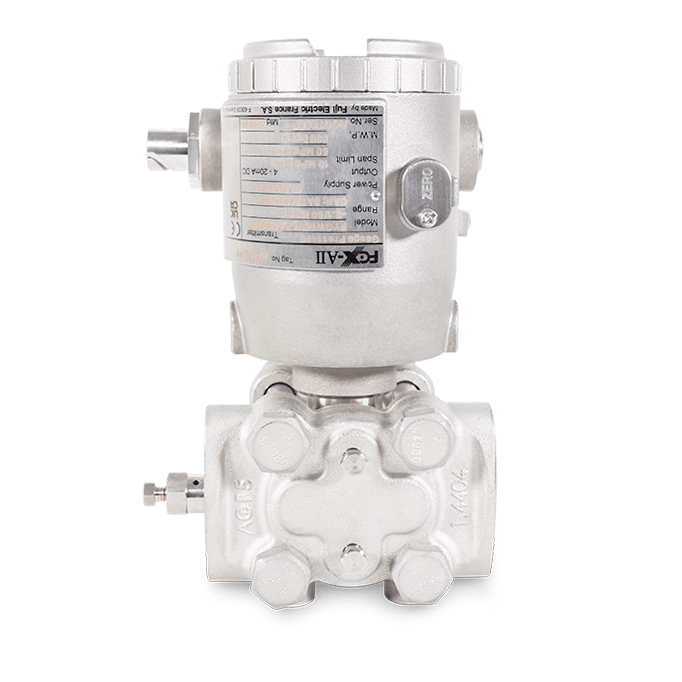

• FKA NC K3 general view top left header

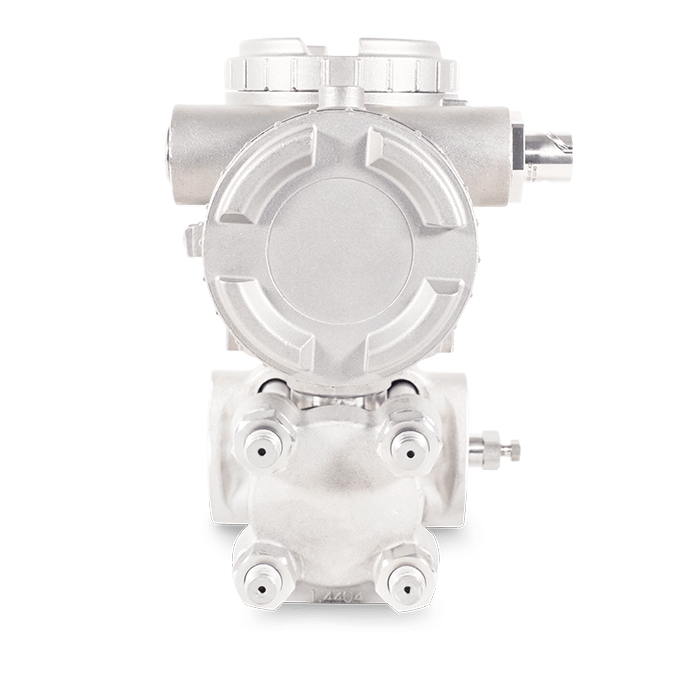

  • FKA NC K3 general view face header

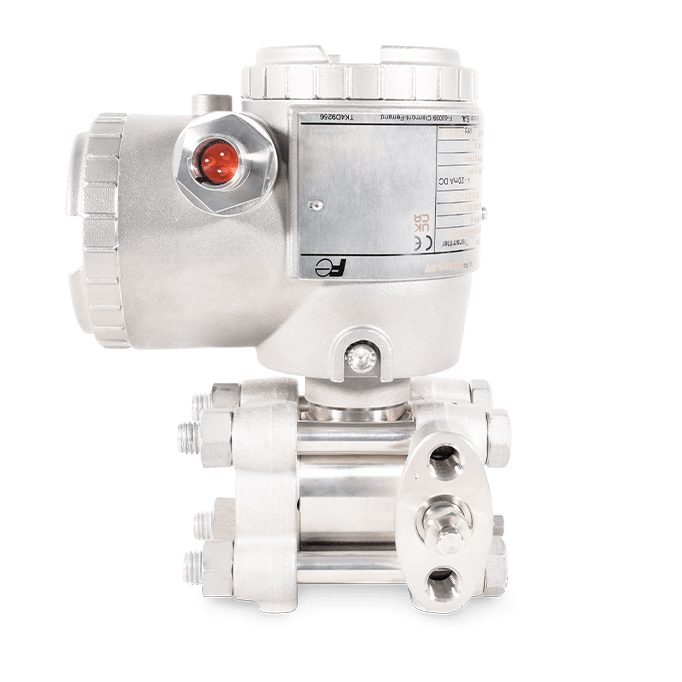

  • FKA NC K3 general view left header
  • FKA NC K3 general view back header
  • FKA NC K3 general view right header
  • FKA NC K3 general view top right header

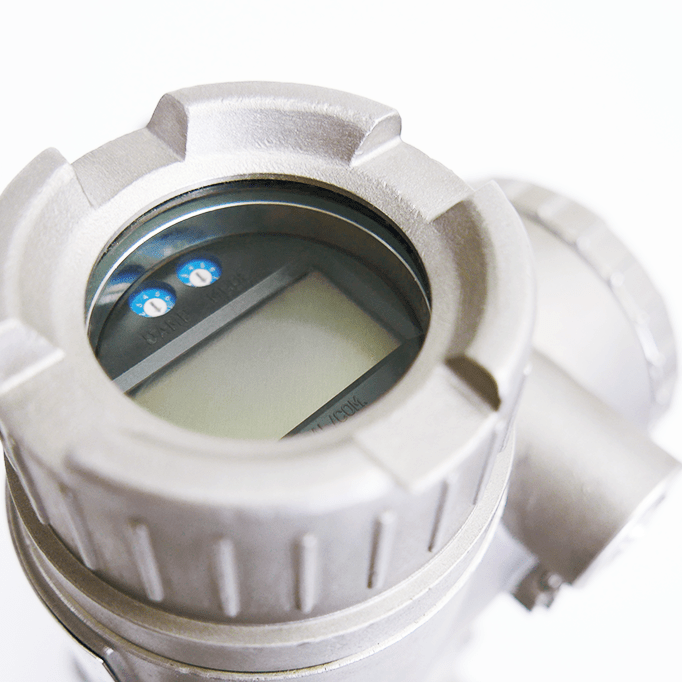

  • FKA NC K3 zoom header display option
  • FKA NC K3 general view top left header
  • FKA NC K3 general view face header

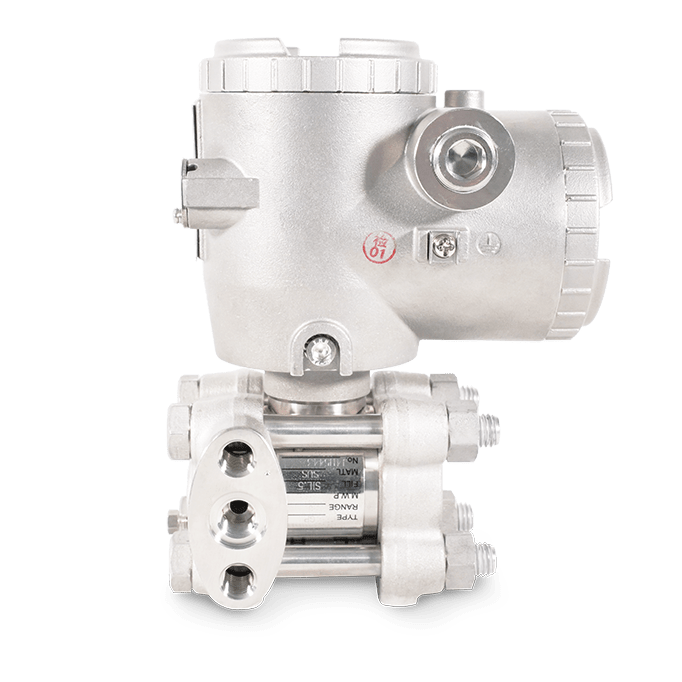

  • FKA NC K3 general view left header
  • FKA NC K3 general view back header
  • FKA NC K3 general view right header
  • FKA NC K3 general view top right header
  • FKA NC K3 zoom header display option
Please contact us

Nuclear absolute pressure transmitter - FKA - NC - K3

Absolute pressure measurement

Fields of application

The absolute pressure transmitter FKA - NC - K3 allows precise measurement of any pressurized gas or fluid, while using a fixed vacuum pressure as a reference for nuclear applications.

Features

  • Barometric pressure measurement
  • Not affected by atmospheric pressure
  • High repeatability and long-term stability
  • Compliance with current regulations
Reference: FKA - NC - K3 Please contact us

Specifications

FKA pressure transmitters in the FCX-AIV family accurately measure absolute pressure and convert it into a directly proportional 4-20 mA output signal. At the heart of the measuring element is a micro-capacitive silicon transducer with a proven track record in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]16
130
500
3000
Weight per kg (without indicator)3,4
Accuracy± 0,2 %
± 0.1% available as an option
Materials in contact with the processStainless steel 316, Stainless steel 316 L, Stainless steel 316 L + Gilding
Case materialsStandard: low-copper aluminum alloy with polyurethane epoxy coating (2 layers).
Option: 316 stainless steel
Membrane materialsStainless steel 316 L
Stainless steel 316 L + gilding
Stability± 0.2% of max. scale for 3 years.
Elevation / DeletionEqual to the upper limit of static pressure.
Scale setting range
Measurement cycle
Communication protocolHART 7 communication protocol
Process temperature-40 to +85°C (silicone oil)
-20 to +80 °C (fluorinated oil)
Ambient temperaturefrom -25 to +55°C
-20 to +55 °C (digital indicator option)
-20 to +55 °C (fluorinated oil option)
Power supply10.5 to 53 Vdc
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable from 0.12 to 32 seconds
Zero and span adjustmentZero and span can be set from the FXW handheld
the FXW handheld communicator and with the external screw
located on the electronic box.
Electrical connectionsM20 x 1.5 or
ATEX explosion-proof cable gland, or
Sub-base Souriau 8N35, or
Sub-base Souriau 8N45S, or
Souriau subbase 8N45, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park), or
Jaeger base with M20 x 1.5 thread ref.536 006 006
OptionsAnalog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate
