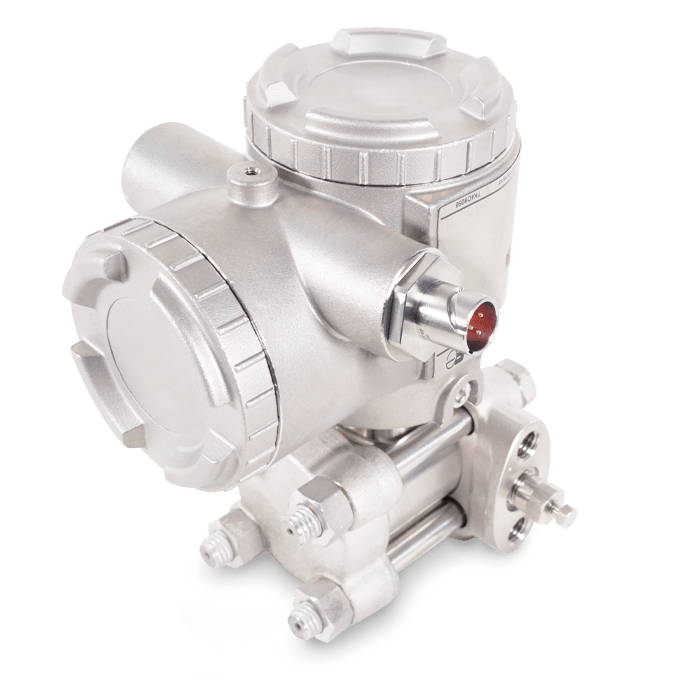

• FYG K3 diagonal general view top left header
  • FYG K3 general view face header

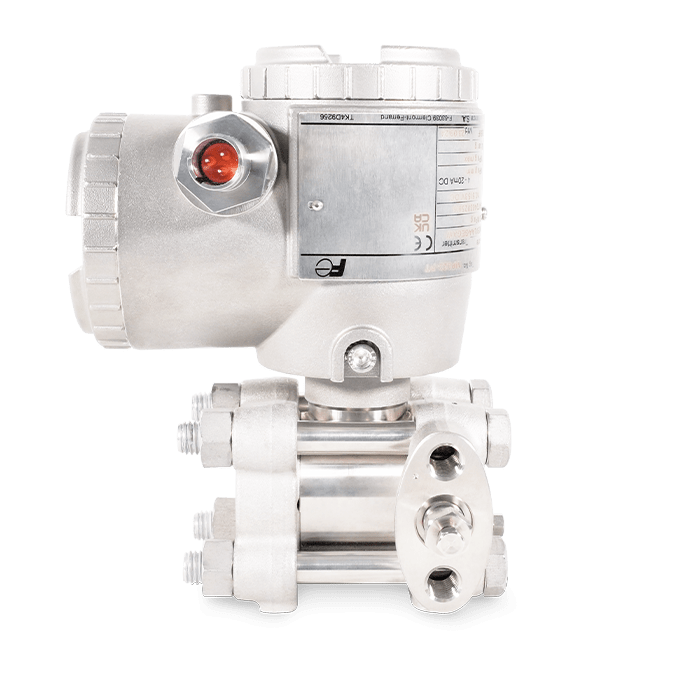

  • FYG K3 general view left header

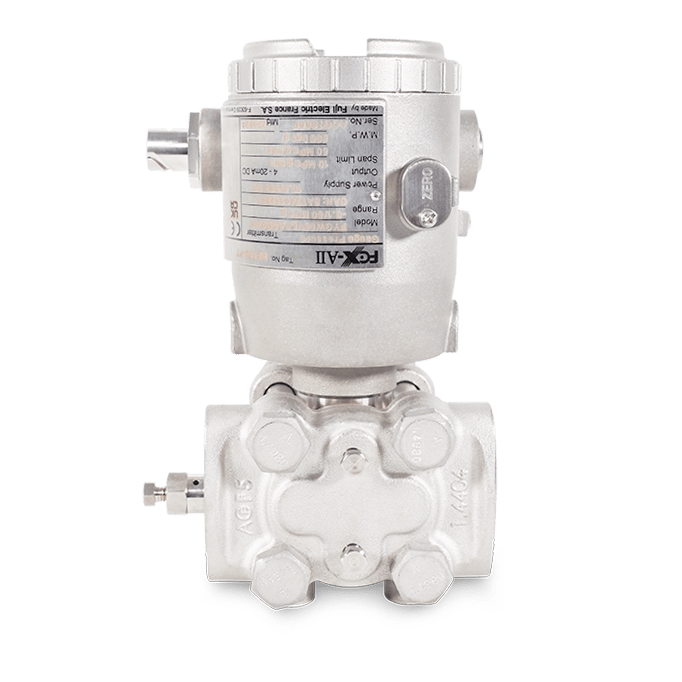

  • FYG K3 general view back header

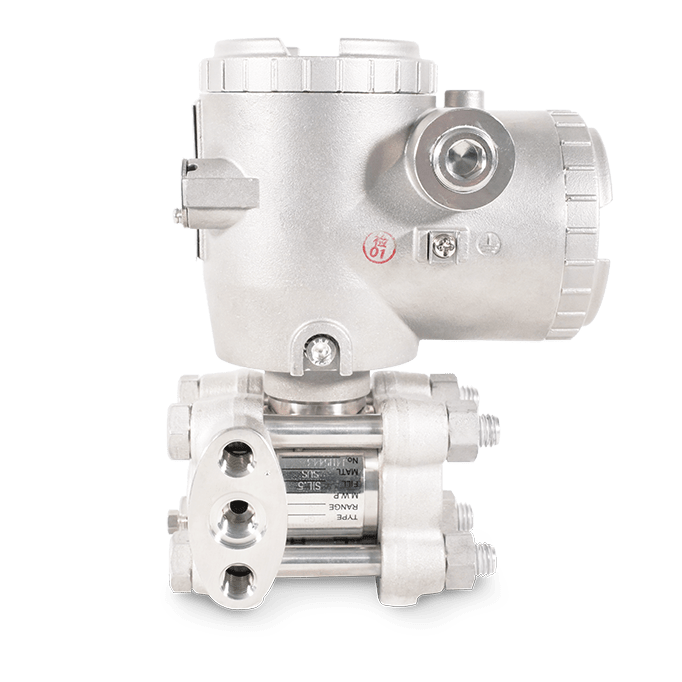

  • FYG K3 general view right header

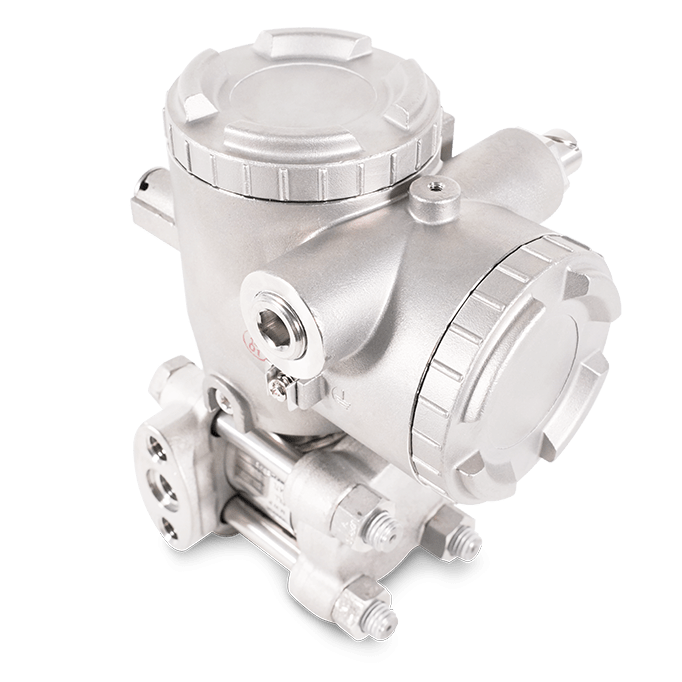

  • FYG K3 diagonal general view top right header
  • FYG K3 diagonal general view top left header
  • FYG K3 general view face header
  • FYG K3 general view left header
  • FYG K3 general view back header
  • FYG K3 general view right header
  • FYG K3 diagonal general view top right header
Please contact us

Nuclear analog gauge pressure transmitter - FYG - K3

Gauge pressure measurement

Fields of application

The nuclear analog gauge pressure transmitter FYG - K3 can be used to measure the pressure of any pressurized gas or fluid in pipes or vessels in nuclear applications.

Features

  • High accuracy and reliability
  • Minimal influence on the environment
  • Wide measurement ranges
  • Compliance with current regulations
Reference : FYG - K3 Please contact us

Specifications

The FYG analog pressure transmitter is a device that precisely measures gauge pressure and converts it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a Silicon micro-capacitive sensor, offset in the cell neck, providing exceptional performance. The FYG series is specifically designed for safety in nuclear applications requiring high reliability and long life in harsh environments (radiation with a Total Integrated Dose of 50kGray).



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]130
500
3000
10000
50000
Weight per kg (without indicator)5,7
Accuracy± 2 %
Materials in contact with the processStainless steel 316, Hast C276, Stainless steel 316 L
Case materialsStainless steel 316
Membrane materialsStainless steel 316 L, Hast C276
Stability± 0.2% of max. scale for 30 days.
Elevation / DeletionEqual to the upper limit of static pressure
Process temperature-40 to +120°C (silicone oil)
Ambient temperature0 to 70 °C
Power supply13 to 48V Vdc
Output signal / Load resistance4-20 mA / 600 Ω
DampingConfiguration between 0.1 and 3.2 seconds
Zero and span adjustmentThe zero point can be adjusted using the external adjustment screw on the electronic box, and the scale using the internal adjustment screw.
Electrical connectionsM20 x 1.5 or
Souriau subbase 8N35, or
Souriau sub-base 8N45S, or
Souriau subbase 8N4, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park)
OptionsDegreasing treatment, Additional marker plate, Vacuum service
