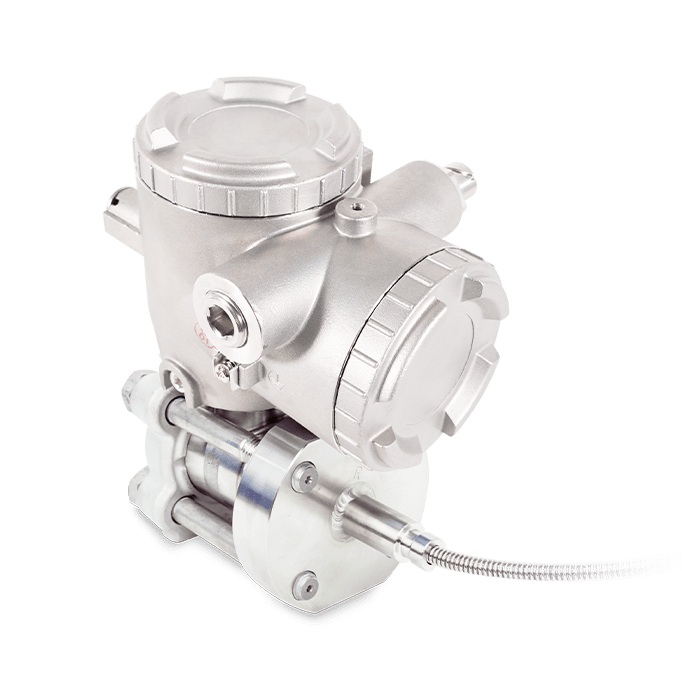

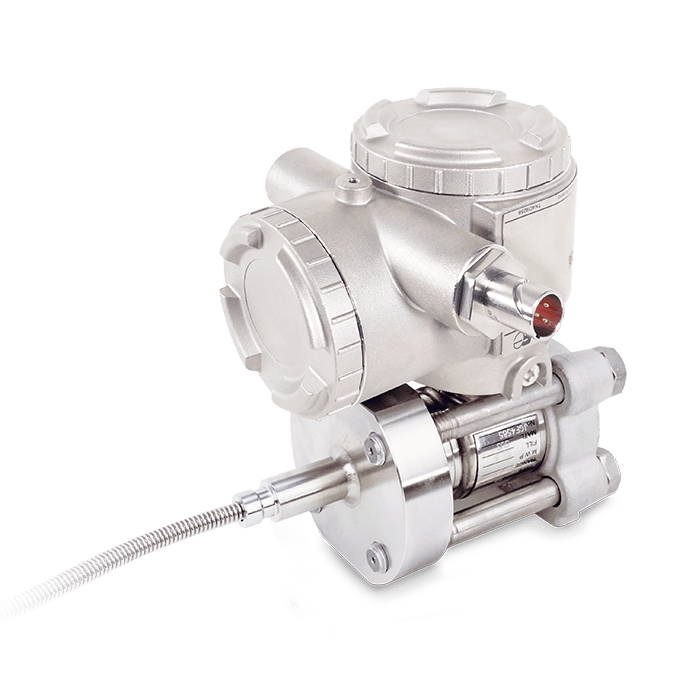

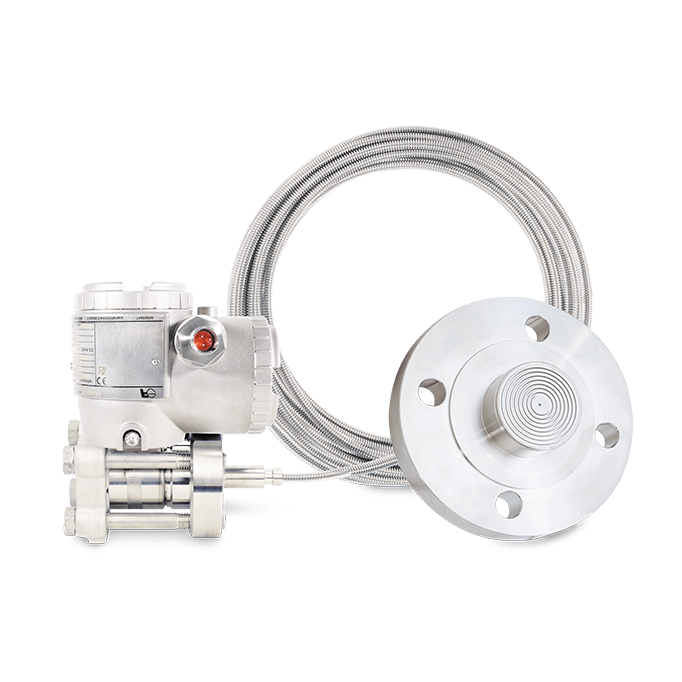

Nuclear diaphragm seal absolute pressure transmitter - FKM - NC - K3

Pressure measurement with diaphragm seals

Fields of application

A pressure transmitter with diaphragm seal for nuclear applications can be used to measure liquid flow, gas flow, steam flow, fluid level in a tank, fluid density or pressure at low or high temperatures.

Features

  • Precise measurement even at low pressures
  • Accessible sensor installation and reading
  • Diaphragm seals can be mounted on all transmitter types
  • Compliance with current regulations
Reference: FKM- NC - K3 Please contact us

Specifications

The pressure transmitter, FCX-AII series electronic transmitter is a device that accurately measures differential, relative or absolute pressure and converts it into a directly proportional 4-20 mAcc output signal. It is used to measure differential, absolute and relative pressure, flow, level or density. The heart of the measuring element is a silicon micro-capacitive sensor. In addition, the electronic unit benefits from the latest microprocessor technology.



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]16
130
500
3000
Weight per kg (without indicator)6
Accuracy± 0,2 %
Materials in contact with the process
Case materials316 stainless steel.
Membrane materials
Stability± 0.2% of max. scale for 3 years.
Elevation / DeletionEqual to the upper limit of static pressure.
Scale setting range
Measurement cycle
Communication protocolHART™ 7 communication protocol
Process temperaturefrom -25 to +55°C
-20 to +55 °C (digital indicator option)
Ambient temperatureSee datasheet for operating temperatures. diaphragm seals
Power supply10.5 to 53 Vdc
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable from 0.12 to 32 seconds
Zero and span adjustmentZero and span can be set from the FXW handheld
the FXW handheld communicator and with the external screw
located on the electronic box.
Electrical connectionsM20 x 1.5 or
ATEX explosion-proof cable gland, or
Sub-base Souriau 8N35, or
Sub-base Souriau 8N45S, or
Souriau subbase 8N45, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park), or
Jaeger base with M20 x 1.5 thread ref.536 006 006

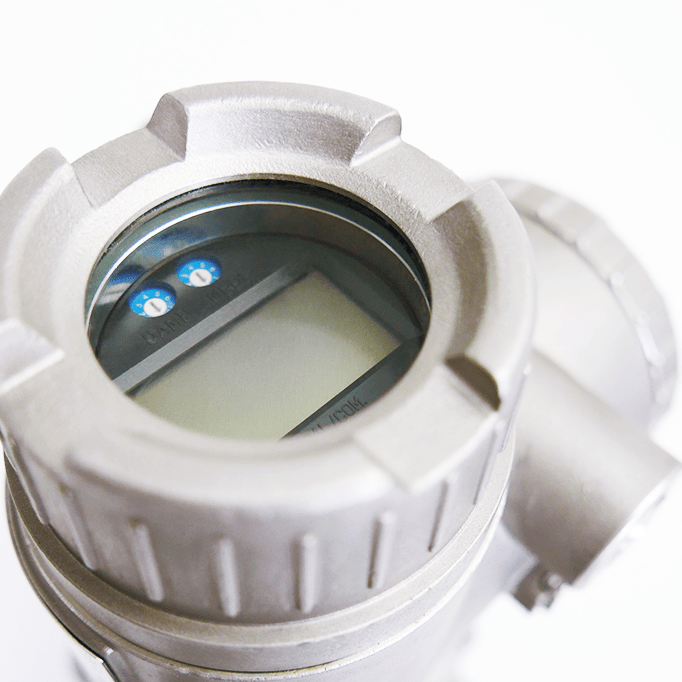

OptionsAnalog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate

Documentations

in Down arrow

Manual: Smart pressure transmitters for nuclear applications FCX-AII V4 K3

Manuals Download
in Down arrow

Software: Windows USB/HART modem drivers for pressure transmitter FCX

Software Download
in Down arrow

Carousel: How to choose a pressure transmitter that meets nuclear safety requirements?

Carousel Download
in Down arrow

Carousel: 6 essential criteria to ensure a safety function with a nuclear pressure transmitter

Carousel Download
in Down arrow

Carousel: 5 factors to limit the pressure transmitters failures on your facilities

Carousel Download
in Down arrow

Carousel: 7 steps to choose the safest pressure transmitter for your hazardous areas

Carousel Download
in Down arrow

Carousel: 7 factors that influence the accuracy of your pressure transmitters

Carousel Download
in Down arrow

Datasheet: Smart diaphragm seal pressure transmitter for nuclear applications FCX-AII K3 FKB FKD FKM

Datasheet Download
in Down arrow

Software: Configuration of pressure transmitter FDT DTM pack for FCX V4 V5 VG V6

Software Download
in Down arrow

Brochure : Pressure transmitters

Brochures Download
in Down arrow

Brochure: Measures for energy and the environment

Brochures Download

Technologies

  • Absolute pressure transmitter

    Absolute pressure transmitter

    Absolute pressure transmitters measure the process pressure relative of gasesand liquids from the absolute zero reference point, i.e. perfect vacuum.

  • Diaphragm seal pressure transmitter

    Diaphragm seal pressure transmitter

    Discover the Power of Diaphragm Seal Pressure Transmitter : Improve Accuracy, Performance, and Reliability. Learn how to enhance your pressure measurement process

Nuclear diaphragm seal absolute pressure transmitter - FKM - NC - K3

Reference : FKM- NC - K3
