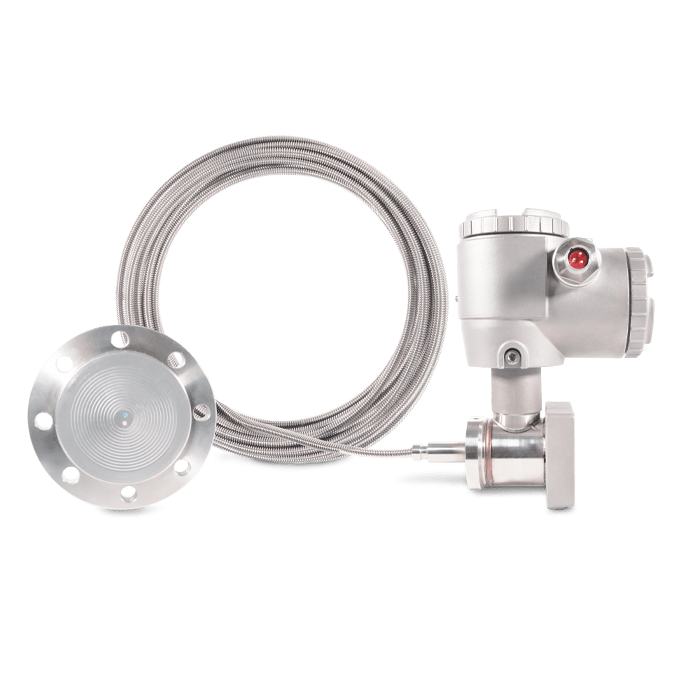

• FKB NC K3 general view header separator face

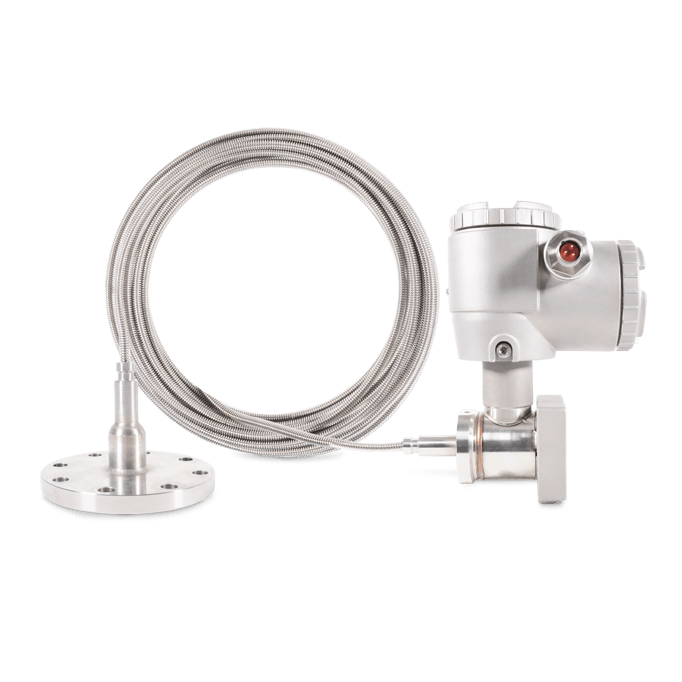

  • FKB NC K3 general view face separator profile header

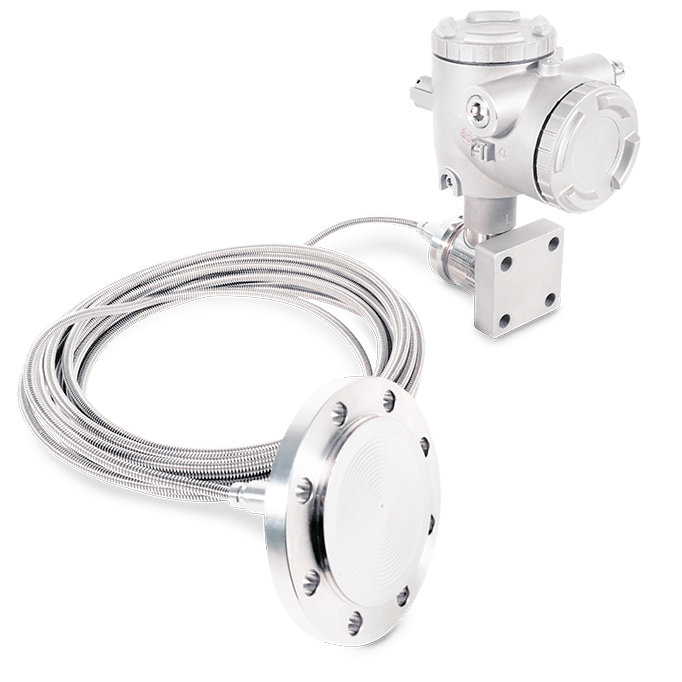

  • FKB NC K3 diagonal general view face header separator

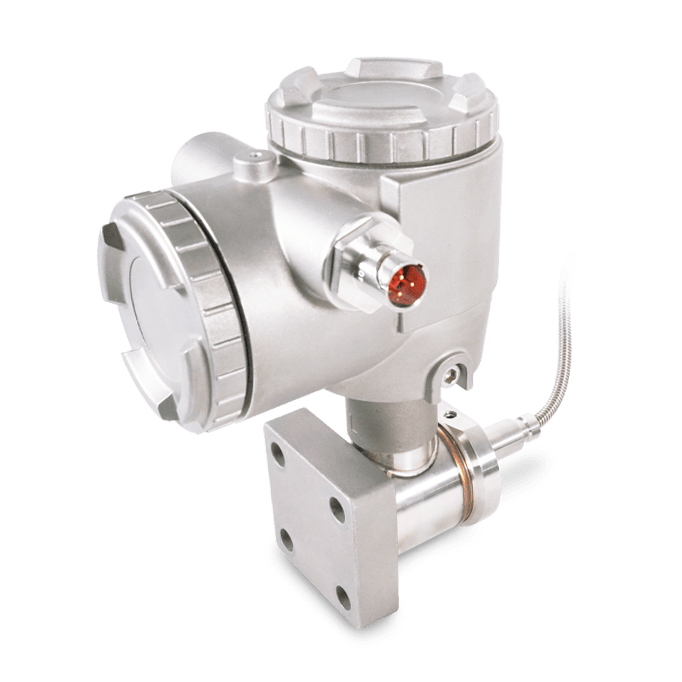

  • FKB NC K3 diagonal general view left top header

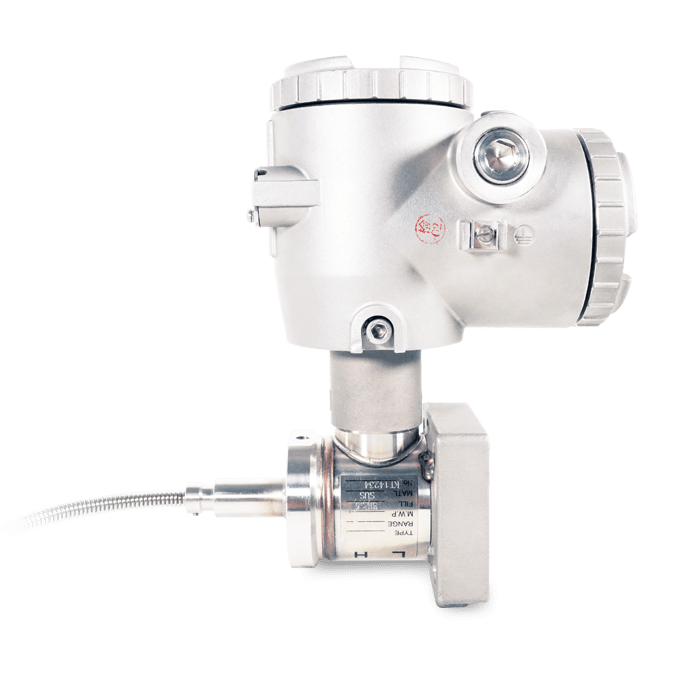

  • FKB NC K3 diagonal general view profile right header

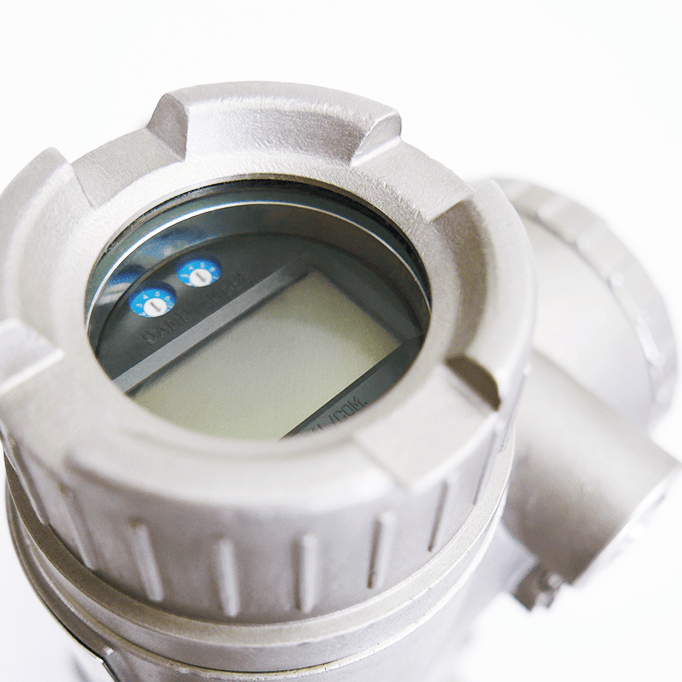

  • FKB NC K3 zoom header display option
  • FKB NC K3 general view header separator face
  • FKB NC K3 general view face separator profile header
  • FKB NC K3 diagonal general view face header separator
  • FKB NC K3 diagonal general view left top header
  • FKB NC K3 diagonal general view profile right header
  • FKB NC K3 zoom header display option
Please contact us

Nuclear diaphragm seal gauge pressure transmitter - FKB - NC - K3

Pressure measurement with diaphragm seals

Fields of application

A pressure transmitter with diaphragm seal for nuclear applications can be used to measure liquid flow, gas flow, steam flow, fluid level in a tank, fluid density or pressure at low or high temperatures.

Features

  • Precise measurement even at low pressures
  • Accessible sensor installation and reading
  • Diaphragm seals can be mounted on all transmitter types
  • Compliance with current regulations
Reference: FKB- NC - K3 Please contact us

Specifications

The pressure transmitter, FCX-AII series electronic transmitter is a device that accurately measures differential, relative or absolute pressure and converts it into a directly proportional 4-20 mAcc output signal. It is used to measure differential, absolute and relative pressure, flow, level or density. The heart of the measuring element is a silicon micro-capacitive sensor. In addition, the electronic unit benefits from the latest microprocessor technology.



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]130
500
3000
10000
50000
Weight per kg (without indicator)6
Accuracy± 0,07 %
Materials in contact with the process
Case materials316 stainless steel.
Membrane materials
Stability± 0.1% of max. scale for 3 years.
Elevation / DeletionEqual to the upper limit of static pressure.
Scale setting range
Measurement cycle
Communication protocolHART™ 7 communication protocol
Process temperaturefrom -25 to +55°C
-20 to +55 °C (digital indicator option)
Ambient temperatureSee datasheet for operating temperatures. diaphragm seals
Power supply10.5 to 53 Vdc
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable from 0.12 to 32 seconds
Zero and span adjustmentZero and span can be set from the FXW handheld
the FXW handheld communicator and with the external screw
located on the electronic box.
Electrical connectionsM20 x 1.5 or
ATEX explosion-proof cable gland, or
Sub-base Souriau 8N35, or
Sub-base Souriau 8N45S, or
Souriau subbase 8N45, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park), or
Jaeger base with M20 x 1.5 thread ref.536 006 006
OptionsAnalog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate
