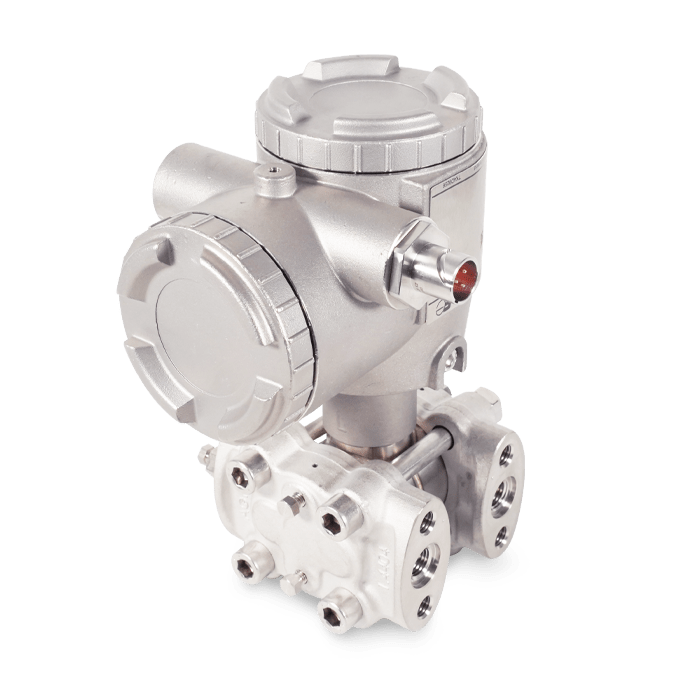

• FKC NC K3 general view left face header

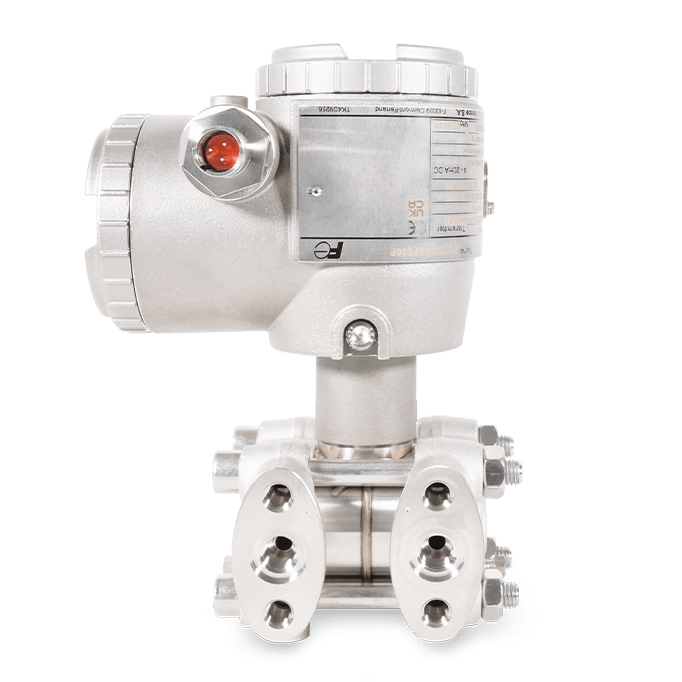

  • FKC NC K3 general view profile left header

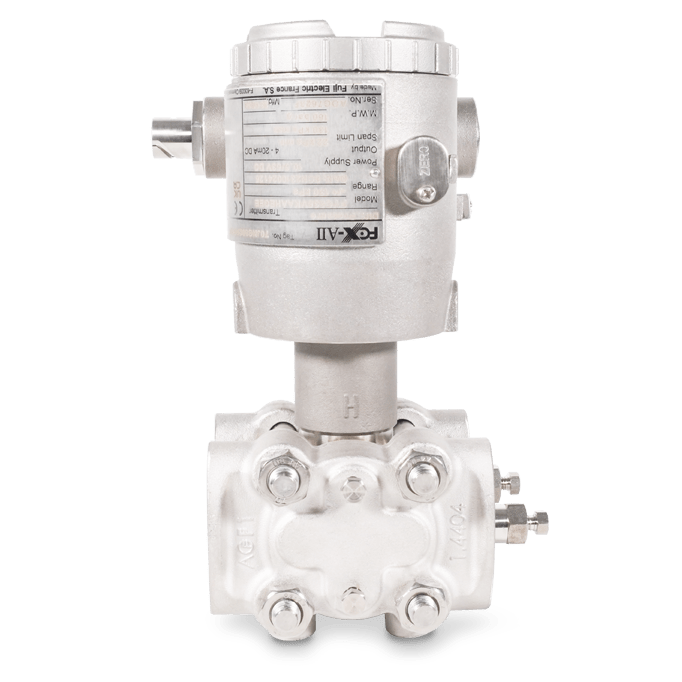

  • FKC NC K3 general view back header

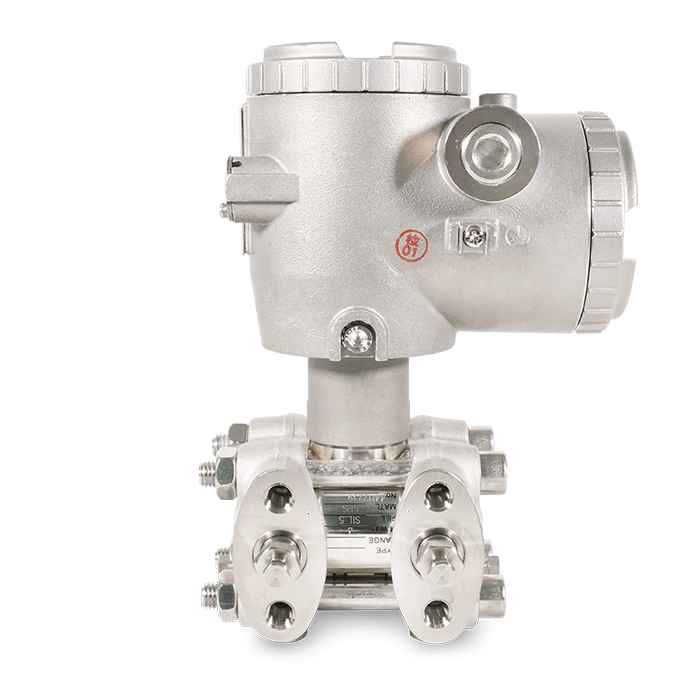

  • FKC NC K3 general view profile right header

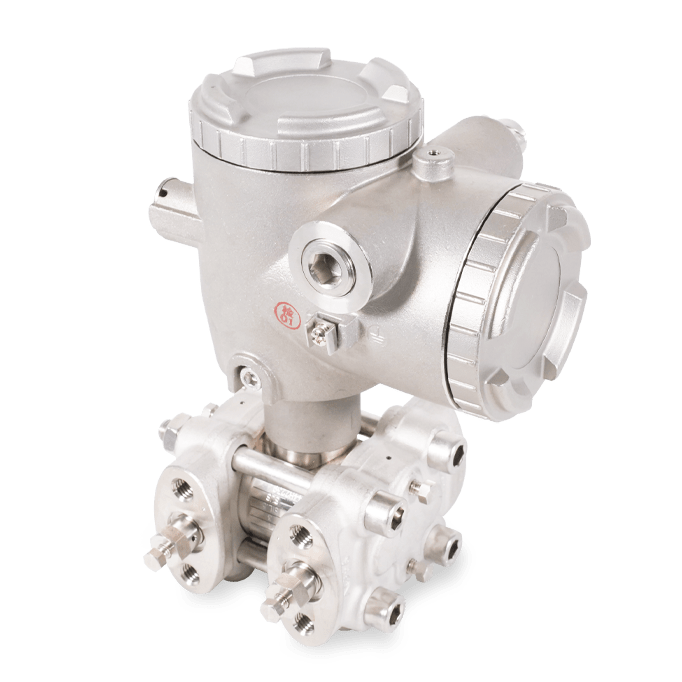

  • FKC NC K3 general view right face header

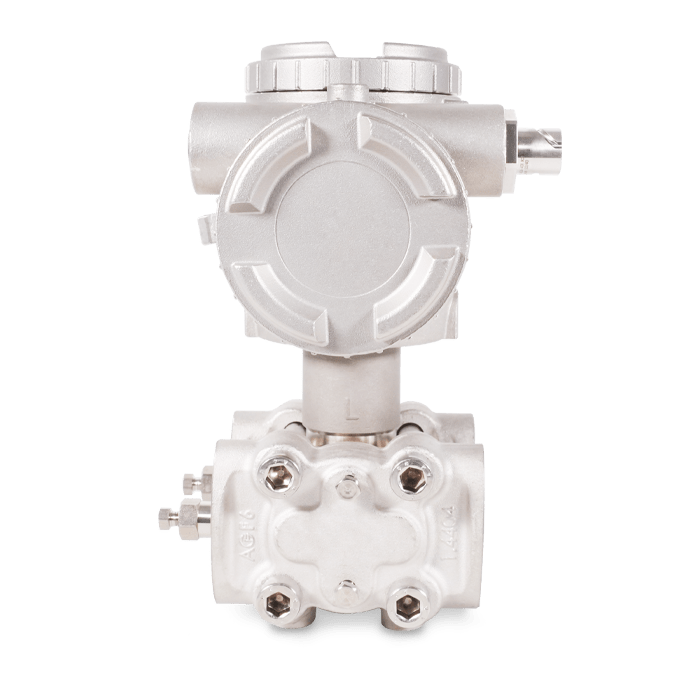

  • FKC NC K3 general view face header

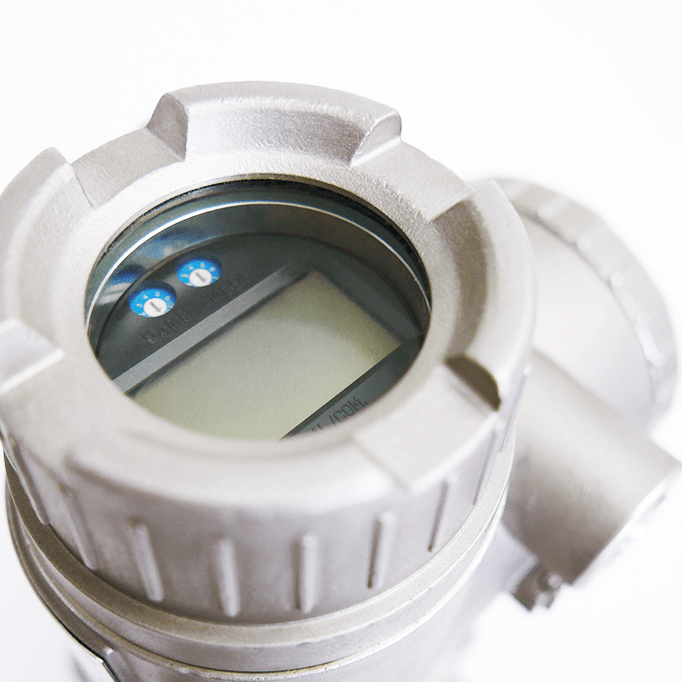

  • FKC NC K3 zoom header display option
  • FKC NC K3 general view left face header
  • FKC NC K3 general view profile left header
  • FKC NC K3 general view back header
  • FKC NC K3 general view profile right header
  • FKC NC K3 general view right face header
  • FKC NC K3 general view face header
  • FKC NC K3 zoom header display option
Please contact us

Nuclear differential pressure transmitter - FKC - NC - K3

Differential pressure measurement

Fields of application

The differential pressure transmitter FKC - NC - K3 provides level, flow, density, filtration and interface measurement for nuclear applications.

Features

  • High measurement accuracy
  • Measurement of very low and very high static pressures
  • Resistant to extreme temperatures and harsh environments
  • Compliance with current regulations
Reference: FKC - NC - K3 Please contact us

Specifications

The differential pressure transmitter FCX-AII series is a device that accurately measures differential pressure and converts it into a directly proportional 4-20 mAcc output signal. It is used for differential pressure, flow, level or density measurements. The heart of the measuring element is a silicon micro-capacitive sensor, offset in the cell neck. In addition, the electronic unit benefits from the latest microprocessor technology.



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]1
6
32
130
500
3000
Weight per kg (without indicator)6
Accuracy± 0,07 %
Materials in contact with the processStainless steel 316 L, Hast C276, Stainless steel 316, Stainless steel 316 L + gold plating, Stainless steel 318NL
Case materialsStandard: low-copper aluminum alloy
with polyurethane epoxy coating (2 layers)
Optional: 316 stainless steel.
Membrane materialsStainless steel 316 L
Hast C276
Stainless steel 316 L + gold plating
Stability± 0.1% of max. scale for 3 years.
Elevation / DeletionEqual to the upper limit of static pressure.
Communication protocolHART 7 communication protocol
Process temperature-40 to +120°C (silicone oil)
-20 to +80 °C (fluorinated oil)
Ambient temperature-40 to +60 °C (-25 to +55 °C for K3A)
-20 to +60 °C (-20 to +55 °C for K3A ) for digital
indicator (option)
-20 to +60°C for fluorinated oil (optional)
Power supply10.5 to 53 Vdc
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable from 0.12 to 32 seconds
Zero and span adjustmentZero and span are adjustable from the FXW communicator
FXW communicator and with the external adjustment screw
located on the electronic box.
Electrical connectionsM20 x 1.5 or
ATEX explosion-proof cable gland, or
Souriau subbase 8N35, or
Sub-base Souriau 8N45S, or
Souriau subbase 8N45, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park), or
Jaeger base with M20 x 1.5 thread ref.536 006 006
OptionsAnalog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate
