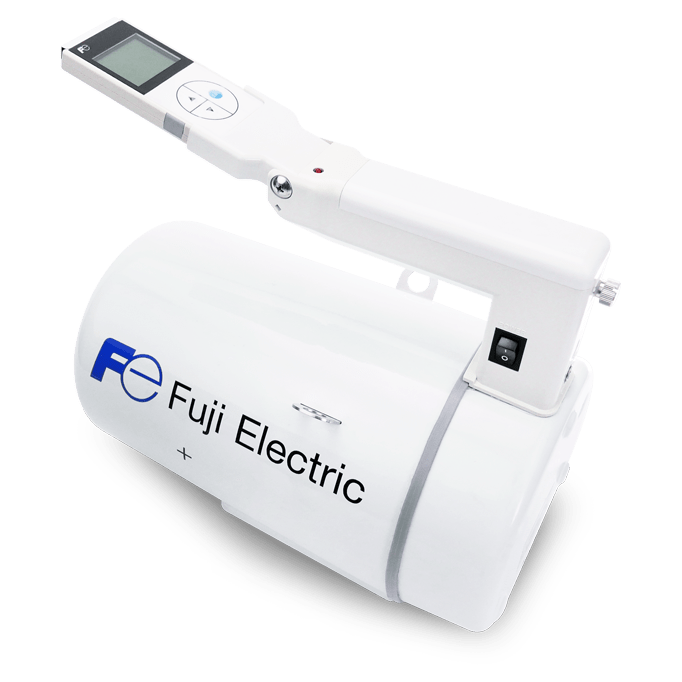

• NSN3 profile view left header

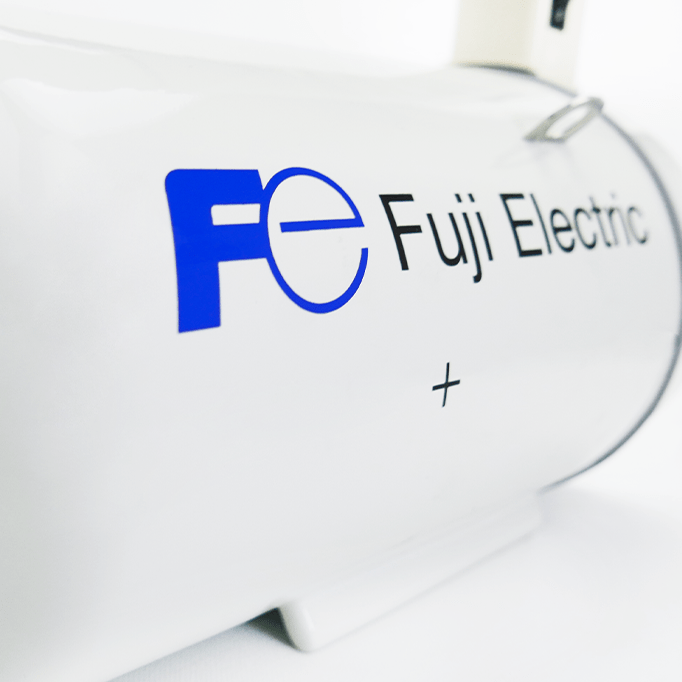

  • NSN3 zoom header view

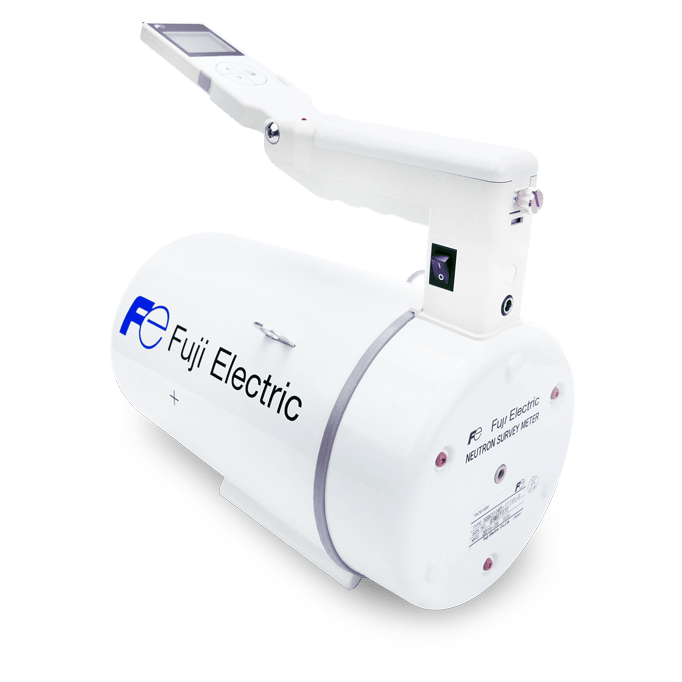

  • NSN3 rear view header

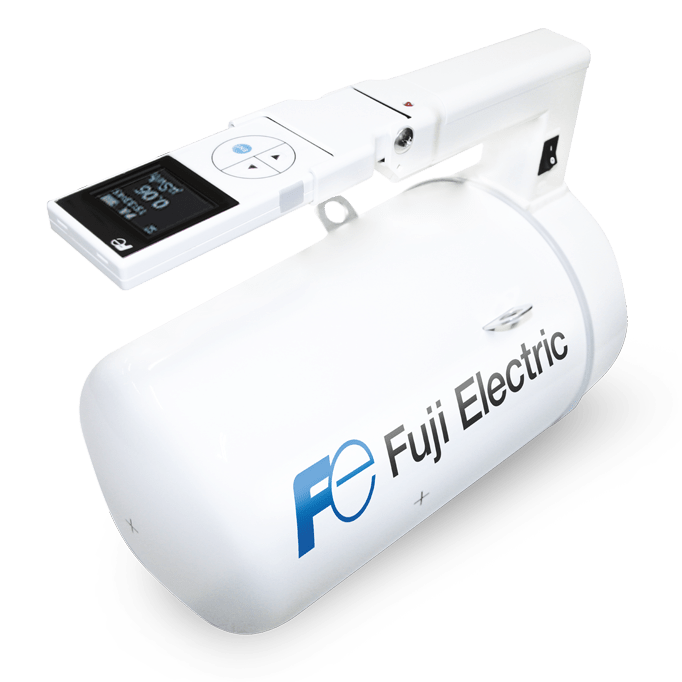

  • NSN3 general view header
  • NSN3 profile view left header
  • NSN3 zoom header view
  • NSN3 rear view header
  • NSN3 general view header
In stock

Portable neutron survey meter - NSN3

Neutron radiation measurement

Fields of application

It is designed to protect workers in nuclear facilities and throughout the fuel cycle, research centers, particle accelerators and civil protection first responders.
research centers, particle gas pedals and civil protection first-responder teams.

Features

  • Lightweight and ultra-handy
  • Without ³He or BF3
  • Excellent Gamma rejection
  • Extended measuring range
Reference : NSN3
From 17296 €

Specifications

The NSN3 neutron survey meter measures the ambient dose equivalent rate. It is designed to protect workers in nuclear facilities and throughout the fuel cycle, research centers, particle gas pedals and civil protection first-responder teams. The innovative detection principle of the NSN3 gas counter consists of an organic gas mixture of methane and nitrogen (neutrons are measured by this gas mixture). Fast neutrons are detected by the elastic diffusion reaction of hydrogen from methane. Slow, thermal neutrons are detected by the 14N (n,p) 14C reaction of nitrogen. The proton energy in this reaction is 626 keV.



StandardCompliant with IEC61005(2003) and JIS 24341 (2006) standards
Measured radiationNeutron H*(10)
DetectorProportional gas detector
Measuring rangeDose rate0.01 μSv/h to 99.99 mSv/h
Dose0.01 μSv to 99.99 mSv
AccuracyDose rates ±20% at 10 μSv/h
Doses ±20% at 1 μSv/h
Energy range0.025 eV to 15 MeV
Energy dependenceICRP74 compliant (H*(10) response curve)
Angular dependence≤ ± 25% (±90º from standard direction)
Linearity≤ ± 20% reference (10 μSv/h)
Gamma-ray sensitivity≤ ± 1% reading (10 mSv/h)
Display5-digit LCD display (dose rate, accumulated dose)
ConnectivityDose rate, accumulated dose, history, data configuration.
(USB cable or software)
Data backupNumber of recordingsUp to 1200
Backup frequency10, 20, 30, 60, 120, 300 or 600 seconds (selectable)
Power supplyPrimary or secondary battery (6 AA cells)
AC adapter (100 to 240 Vac)
Battery lifeUp to 30 hours (without permanent display)
Operating temperature-10°C to 45°C
Operating humidity35 to 90% RH (non-condensing)
Dimensions289.5 (W) x 164 (D) x 246 (H) mm
WeightApprox. 3 kg
