Temperature transmitter - type 27

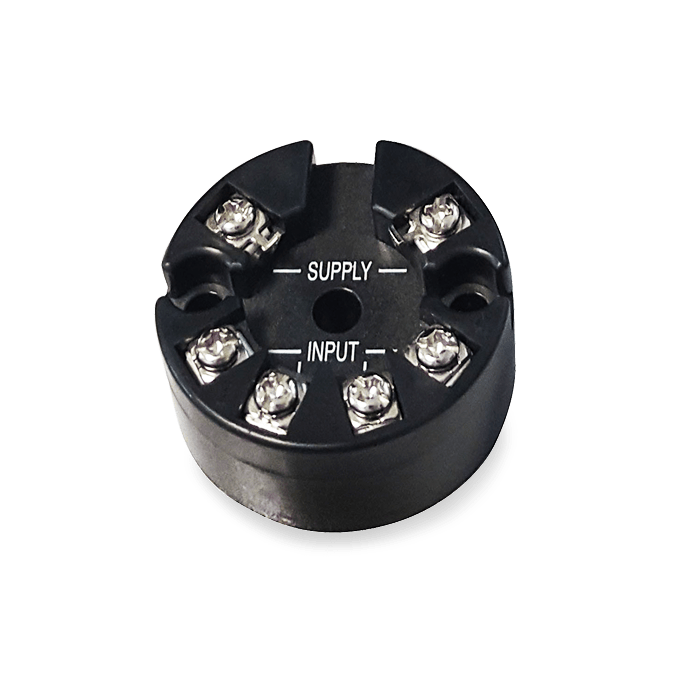

Name: Sensor head temperature converter - type 27
SKU: 27U
Availability: InStock

Universal temperature converter

Fields of application

Signal conditioners convert a field signal from various sensors into a standard signal that can be processed by PLC, DCS or PC systems.
They are also used to: amplify a signal to increase load drive capacity, and isolate a signal to avoid ground loops.

Features

Universal inputs: mV, thermocouple, RTD and resistance
Programming via PC Configurator (HART® version for 27HU model)
Programmable linearization table
N° of channels : 1 and 2 channels

Reference: 27U

From 61 €

Configure my product

Configure
Specifications
Documentations
Technologies

Configure

APPROVAL

Universal input (mV, RTD, T/C, potentiometer), isolated output, SIL2
Universal input (mV, RTD, T/C, potentiometer), isolated output, SIL2, ATEX
Thermocouple input K, E, J, T, B, R, S, C, D, N, U & L, isolated output, SIL2
Thermocouple input K, E, J, T, B, R, S, C, D, N, U & L, isolated output, SIL2, ATEX
Pt100, Pt500 & Pt1000 input, non-isolated output, SIL2
Pt100, Pt500 & Pt1000 input, non-isolated output, SIL2, ATEX
Pt100, Pt500 & Pt1000 input, isolated output, SIL2
Pt100, Pt500 & Pt1000 input, isolated output, SIL2, ATEX
Potentiometer input (100Ω to 10kΩ)

Specifications

The 27 SC converter is a head-mounted two-wire signal converter.

Connection	M3 screw terminals (0.5 N-m torque)
Housing material	Non-flammable resin (black color)
Insulation	From input to output to feed
Output signal	4-20 mA DC
Power supply	9 - 35 V DC (not approved) 9 - 28 V DC (approved)
Operating temperature	-40 to +85 °C
Operating humidity	0 to 95% RH (non-condensing)
Assembly	Head mounting (DIN type B head)
Weight	50 g (1.76 oz)
