An electromagnetic flowmeter is a flow-measuring device for conductive fluids. It operates on the basis of Faraday's law, generating an electrical signal proportional to the flow rate of the fluid passing through its magnetic field. With no moving parts, it provides accurate measurement, is easy to maintain and is suitable for a variety of industrial applications.
Electromagnetic flow meters for liquid flow measurement

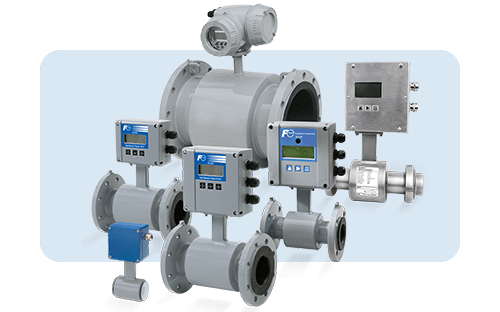

Simple, economical flowmeter for conductive liquids
Electromagnetic flowmeters are ideal for measuring the flow of all liquids with a minimum conductivity of 5 μS/cm (20 μS/cm for demineralized water).
These electromagnetic meters are highly accurate, and the measurement of volume flow is not dependent on the density, temperature or pressure of the medium.
Measurement principle of electromagnetic flow meters

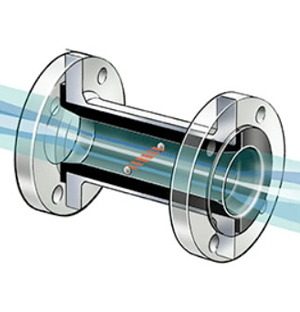

The measurement principle of electromagnetic flowmetersis based on Faraday's law:
The voltage induced by a conductor moving through a magnetic field is directly proportional to the conductor's speed.
The induced voltage is measured across two diametrically opposed electrodes.
This voltage is proportional to the magnetic field, the distance between the two electrodes and the average fluid velocity.
High accuracy: Electromagnetic flowmeters offer exceptional accuracy, capable of detecting the smallest flow variations. This enables reliable, consistent measurement, essential for critical industrial applications.
Reliability: With no moving parts, these magnetic meters require little maintenance and guarantee a long service life. Their robust design makes them particularly well suited to demanding industrial environments.
Flexibility: electromagnetic flowmeters can measure a wide variety of fluids among liquids. This versatility makes them an ideal choice for many industrial applications.
Safety: Using the principle of electromagnetic induction, ATEX electromagnetic flowmeters ensure maximum safety in sensitive environments and processes where there is a risk of explosion or fire.
Industrial applications
Electromagnetic flowmetersare widely used in a variety of industrial applications, thanks to their accuracy and reliability. They can be used wherever the flow of a conductive liquid needs to be measured, whatever the industrial sector : chemical, pharmaceutical, paper, food or water treatment.
Here are a few concrete examples of their use:
Paper industry In paper mills, electromagnetic flowmeters measure the flow of water and chemicals, ensuring efficient, high-quality production.
Water and environment: These flowmeters for drinking water or wastewater are essential in wastewater treatment plants, wastewater management (REUSE) and drinking water distribution networks. These electromagnetic water meters ensure accurate measurement of water flow, contributing to optimal management of water resources through sectorization and leak detection in water networks. Electromagnetic flowmeters are used to monitor liquid flow in pipes, ensuring efficient, uninterrupted water distribution.
Chemical and food production plants : In production environments, these flowmeters monitor the flow of liquids in the industry on the various liquid products, guaranteeing continuous, high-quality production. This type of industrial water flowmeter is particularly appreciated for its reliable performance, even under difficult working conditions.
Safety and reliability of electromagnetic flowmeters
Electromagnetic flowmeters are designed for maximum safety and reliability. Here are some of the features that ensure their performance:
Operating principle: Based onelectromagnetic induction, these flowmeters offer a safe, reliable measurement method that complies with Faraday's Law.
Robust design: Flowmeters are designed to measure the flow of conductive fluids, ensuring reliable performance even under difficult conditions.
Accurate information: They provide precise, reliable data on fluid flow, essential for industrial processes.
Measuring tube: Equipped with a specially designed measuring tube, these flowmeters guarantee optimum safety and reliability.
Adaptability: Designed to meet the specific needs of industry, electromagnetic flowmeters are used in a wide variety of sectors, from the paper industry to water management.
Earthing: To prevent electric shock, electromagnetic flowmeters are equipped with an earthing system, ensuring safe operation.

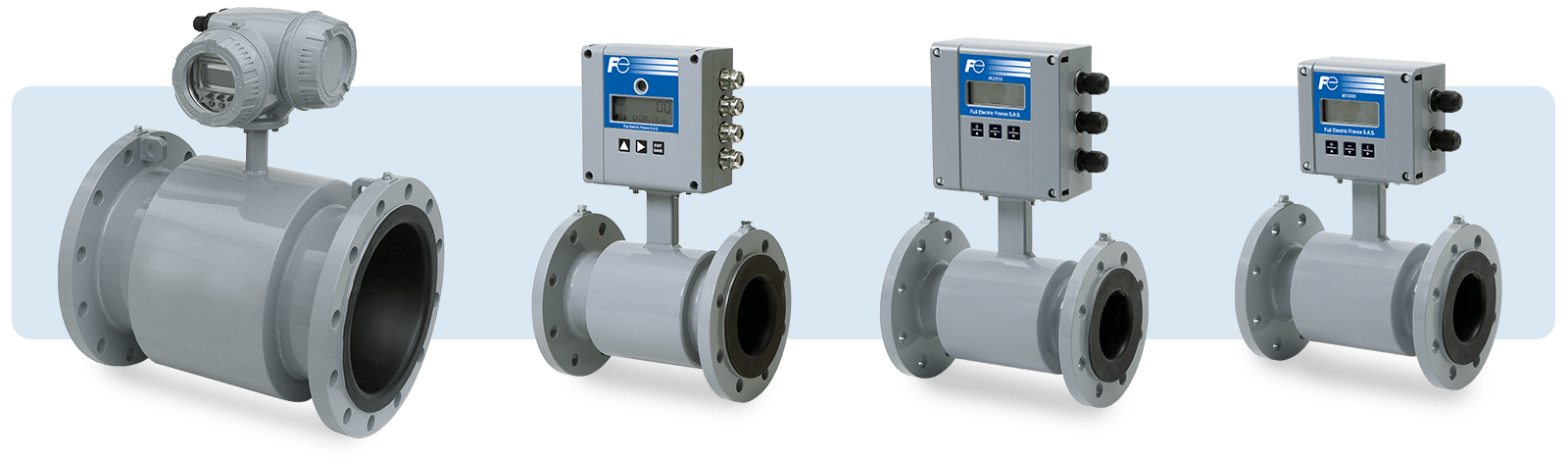

M1000, M2000, M5000 electromagnetic flowmeters
With excellent reliability over time (no moving parts), high accuracy (±0.2%) and total absence of pipe pressure drop, our electromagnetic flowmeters are perfectly suited to your measurement requirements.
Available for pipe sizes diameters from 6 to 2000 mm,
Compact mounting (converter mounted on the measuring tube) or remote,
Several internal coatings of the measuring tube (PTFE, hard rubber, rubber) and several types of electrodes (AISI 316 Ti, Hastelloy CTM and Platinum) are available,
The microprocessor converter can be integrated into the measuring tube or remotely mounted in an IP67 enclosure or rack-mounted,
Version for use in hazardous areas (M3000/4000 ATEX),
Stand-alone version (M5000) with battery power (up to 12 years of autonomy),
Extended communication options (HARTTM, PROFIBUS-DP, MODBUSTM, M-Bus, Ethernet etc.)
Portable test console for electromagnetic flow meters M1000, M2000, M5000
All important flowmeter parameters are measured, compared and evaluated. The accuracy of the converter, its inputs and outputs, as well as the most important sensor parameters are measured continuously without interrupting the flow measurement, quickly and easily. This guarantees safe, optimum operation of the magnetic flowmeter.
The M1000, M2000 and M5000 electromagnetic flowmeters can be checked periodically on site, at low cost and without interrupting the process. Thanks to this verification tool, it is possible to check without dismantling the device that the flowmeter calibration does not exceed ±1% of the original factory calibration.
Accurately measure the flow of your conductive liquids with an electromagnetic flowmeter!
Interested in simple, easy-to-install flow measurement with unrivalled accuracy? Fuji Electric's electromagnetic flowmeter is the instrument for measuring your liquids. Thanks to its technology with no moving parts, it guarantees reliability and low maintenance.
Faced with unexplained liquid losses or inaccurate measurements impacting your profitability? Our flowmeter is the tailor-made solution to optimize your operational processes and save additional costs.
Contact Fuji Electric today! Talk to our experts to explore the advanced features of our electromagnetic flowmeters.
