Gas analysers for ship scrubbers measure the gas scrubber and concentration of pollutant gases in the exhaust fumes of vessel. These gas analysers are used to verify compliance with maritime environmental protection regulations. They can monitor emissions of sulphur dioxide (SO2) and carbon dioxide (CO2). Shipbuilding gas analysers allow ships to keep their scrubbers in good working order and avoid penalties for non-compliance.
Achieving vessel emission monitoring and optimized control with compact, high speed, accurate, low-maintenance ZQS laser gas analyser.
Monitoring exhaust gas scrubbers nox sox emissions ships is crucial for compliance with MARPOL Annex VI regulations on sulphur emissions. To use an exhaust gas cleaning system EGCS, it is one of the schemes that we can take to cope with their regulation. And, it is necessary to determine and continuously monitor the concentrations of SO2 and CO2 in gas scrubber using the gas analyser mounted on a ship according to the guidelines for the systems (IMO Resolution MEPC.259 (68).

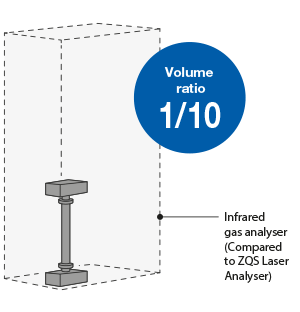

We have succeeded in reducing the size 1/10 of the infrared gas analyser type.

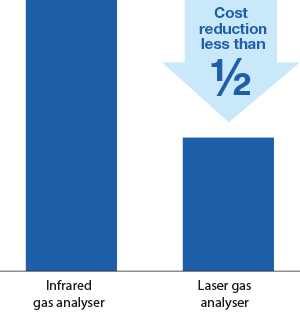

Compared to infrared gas analysers, the maintenance cost can be reduced and limited to less than 1/2 because the number of replacement parts is small, and its calibration is required only once a year.
Sulphur emissions shipping control has become more stringent to reduce sulfur oxides (SOx) produced from ships.

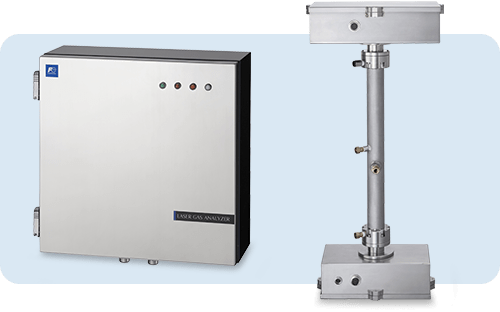

The ZQS laser gas scrubbers analyser developed by Fuji Electric, will meet the customer needs by providing precise measurements and monitoring the range of exhaust gas scrubber and by saving space and maintenance.
Measurable and extended components
Measurement principle
Measurement Method

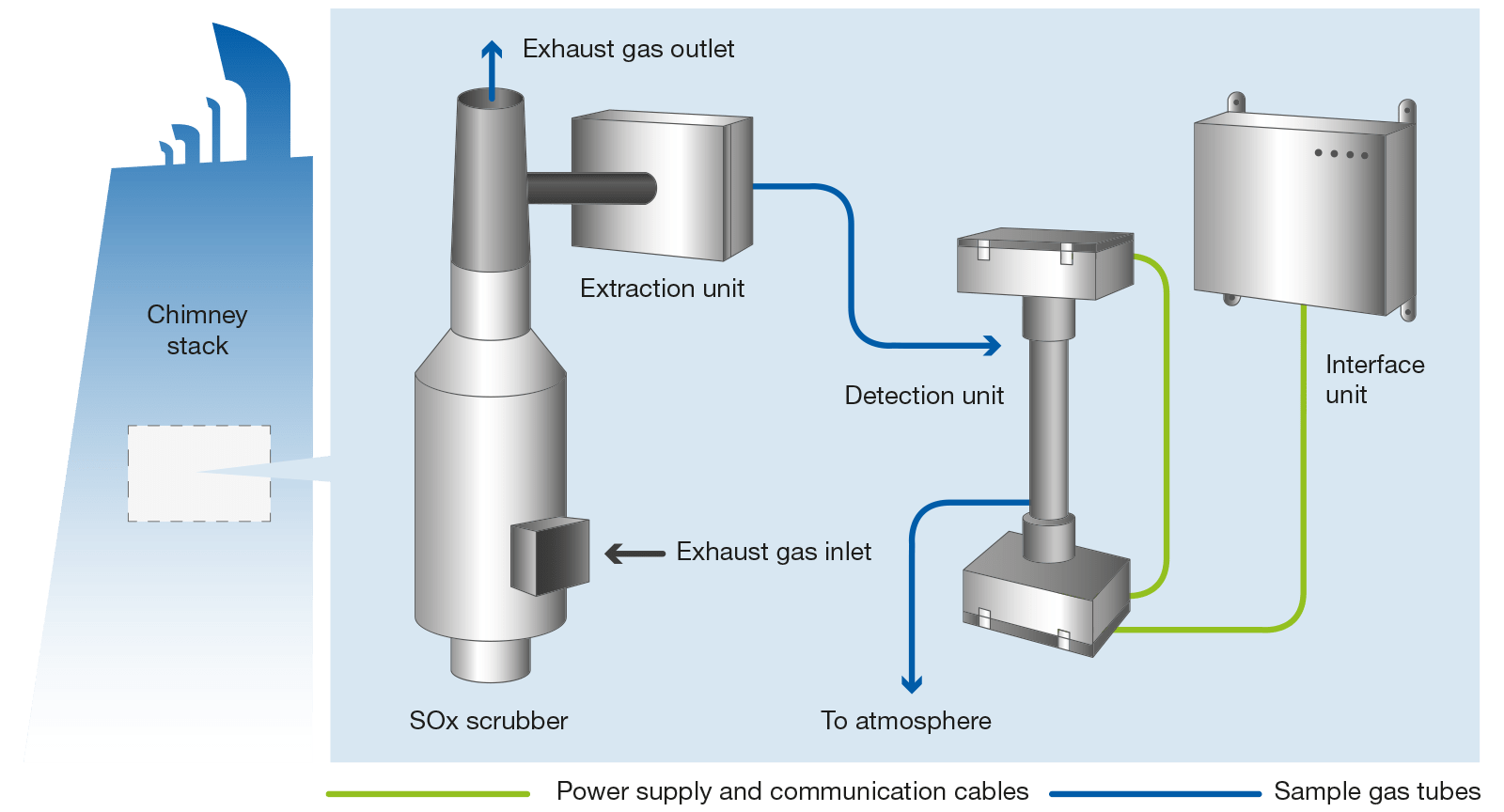

This analyser gas analyzer uses an extractive method to ensure accurate gas collection and reliable results.
Application
Specifically dedicated to monitoring emissions from marine engines equipped with SOx scrubbers.
Light source
A semiconductor laser is the key to measurement accuracy, enabling sensitive detection of gas concentrations.
Dimensions and weights
Housing
Designed for indoor use, the housing is IP44-rated (fully enclosed and splash-proof). The extractor fan is rated IPX4.
Materials
The main components, including the detector, extractor and interface, are made of stainless steel, ensuring robustness and durability.
Power supply
The analyser operates on a standard 100-240 Vac, 50/60 Hz power supply, ensuring flexibility of use in a variety of environments.
Displays and Communications
The user interface is provided by LED indicators, and the device is equipped with an Ethernet function with Modbus TCP protocol for efficient communication.
Performance
Interference with other components
The analyser is able to maintain its accuracy even in the presence of other components such as NO, NO₂, CO, NH₃, CH₄, and H₂O saturated at 60°C.
The innovative ZQS gas analyser, whose environmental specifications are detailed below, stands out for its robustness and ability to operate in a wide range of conditions while providing accurate measurements.
Ambient temperature
Ambient Humidity
Now ≤ 90% relative humidity, this datasheet guarantees that the device can operate efficiently without the risk of condensation, which could impair performance.
Vibrations
Vibrations are kept to a minimum, below 0.2 G (1.9 m/s²), ensuring the stability ofanalyser in environments subject to movement.
Storage environment
The analyser can be stored in conditions ranging from -20°C to 70°C, with relative humidity up to 100% non-condensing.
Flange
The system is compatible with a JIS 5K65A flange, but also offers customized options on request, ensuring easy integration into a variety of environments.
Air Instrument specifications
Exhaust Gas Specifications
Gas composition
Pressure
